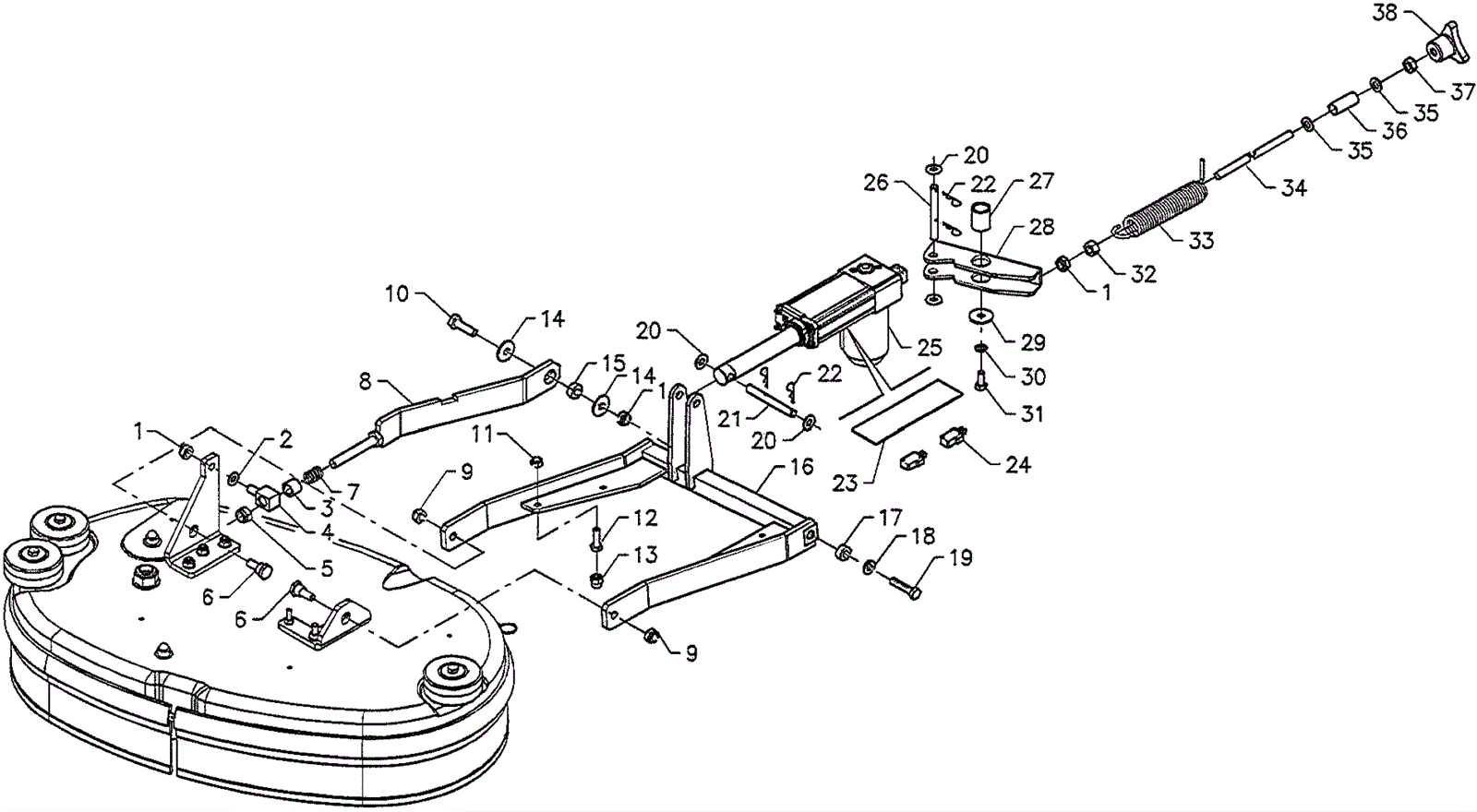

BD 26/26 Brush Control Assembly

#PartDescription ReqNotesAvailability
1 183-8424 Nut 3 usually ships 16-24 days
2 183-2488 Conical washer 1 usually ships 16-24 days
3 183-7620 Spacer (OBSOLETE) 1 usually ships 16-24 days
4 183-7621 Arm adjuster (OBSOLETE) 1 usually ships 16-24 days
5 183-8411 Nut 1 usually ships 16-24 days
6 183-7618 Arms stud bolts (OBSOLETE) 2 usually ships 16-24 days
7 183-8429 Compression spring 1 usually ships 16-24 days
8 183-5115 Arm (OBSOLETE) 1 usually ships 16-24 days
9 183-8424 Nut 2 usually ships 16-24 days
10 183-9901 Screw M10 x 35 1 usually ships 16-24 days
11 183-9343 Nut 1 usually ships 16-24 days
12 183-9901 Screw M10 x 35 1 usually ships 16-24 days
13 183-9210 Black nut cover 1 usually ships 16-24 days
14 183-2504 Washer 2 usually ships 16-24 days
15 183-7619 Bushing (OBSOLETE) 1 usually ships 16-24 days
16 183-9902 Brush base arm (OBSOLETE) 1 usually ships 16-24 days
17 183-9344 Bushing 2 usually ships 16-24 days
18 183-8312 Washer 1 usually ships 16-24 days
19 183-9345 Screw M12-1.5 x 30mm 1 usually ships 16-24 days
20 183-9324 Washer 4 usually ships 16-24 days
21 183-9346 Pin 1 usually ships 16-24 days
22 183-9120 Cotter pin 4 usually ships 16-24 days
23 183-9347 Support plate 1 usually ships 16-24 days
24 183-9350 Actuator microswitch 2 usually ships 16-24 days
25 183-5117 Brush actuator motor 1 usually ships 16-24 days
26 183-5118 Pin (OBSOLETE) 1 usually ships 16-24 days
27 183-5119 Bushing (OBSOLETE) 1 usually ships 16-24 days
28 183-5120 Rocker arm (OBSOLETE) 1 usually ships 16-24 days
29 999-9097 Washer M8 flat stainless steel 1 usually ships 11-14 days
30 999-0674 Washer M8 split lock plain finish 1 usually ships 11-14 days
31 183-8300 Screw M8 x 25 1 usually ships 16-24 days
32 183-9343 Nut 1 usually ships 16-24 days
33 183-5121 Traction spring (OBSOLETE) 1 usually ships 16-24 days
34 183-5122 Threaded tie rod (OBSOLETE) 1 usually ships 16-24 days
35 183-9324 Washer 2 usually ships 16-24 days
36 183-5123 Spacer (OBSOLETE) 1 usually ships 16-24 days
37 183-9348 Nut 1 usually ships 16-24 days
38 183-9349 Handwheel 1 usually ships 16-24 days
