BR 16/3

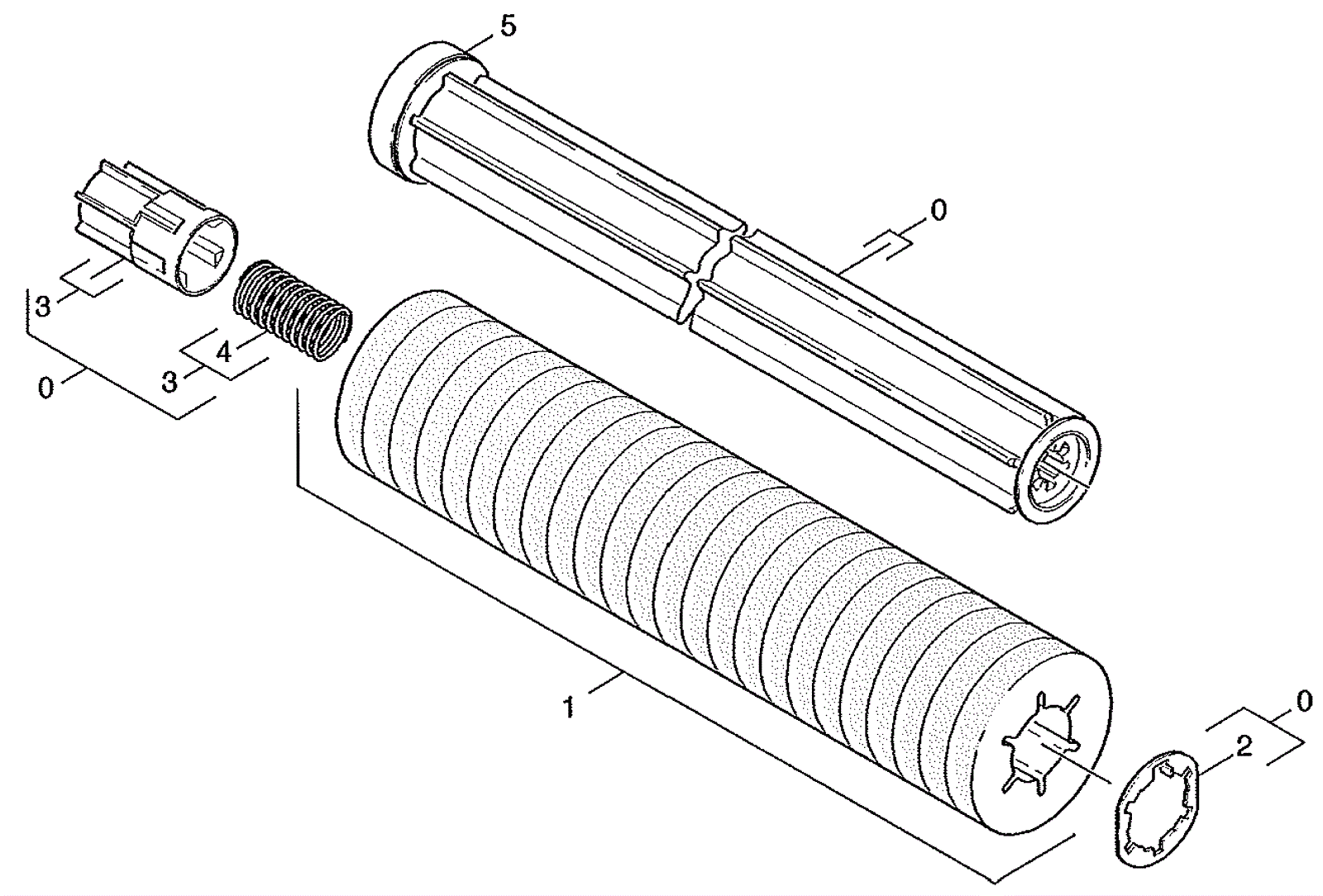

Accessories and Pad Roll Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
0
183-2998
Pad shaft
$291.82
1
(includes 2-4)
usually ships 9-20 days
1a
183-2999
Roller pad
$92.49
1
usually ships 9-20 days
1b
183-3000
Roller pad
$110.45
1
usually ships 9-20 days
1c
183-3001
Roller pad
$137.90
1
usually ships 9-20 days
1d
183-3002
Roller pad
$108.80
1
usually ships 9-20 days
2
183-0454
Washer
$42.17
1
usually ships 9-20 days
3
183-3003
Hub pad
$23.12
1
usually ships 9-20 days
4
183-3004
Helical spring
$5.00
1
usually ships 9-20 days
5
183-2899
Thread deflector
$33.30
1
usually ships 9-20 days
