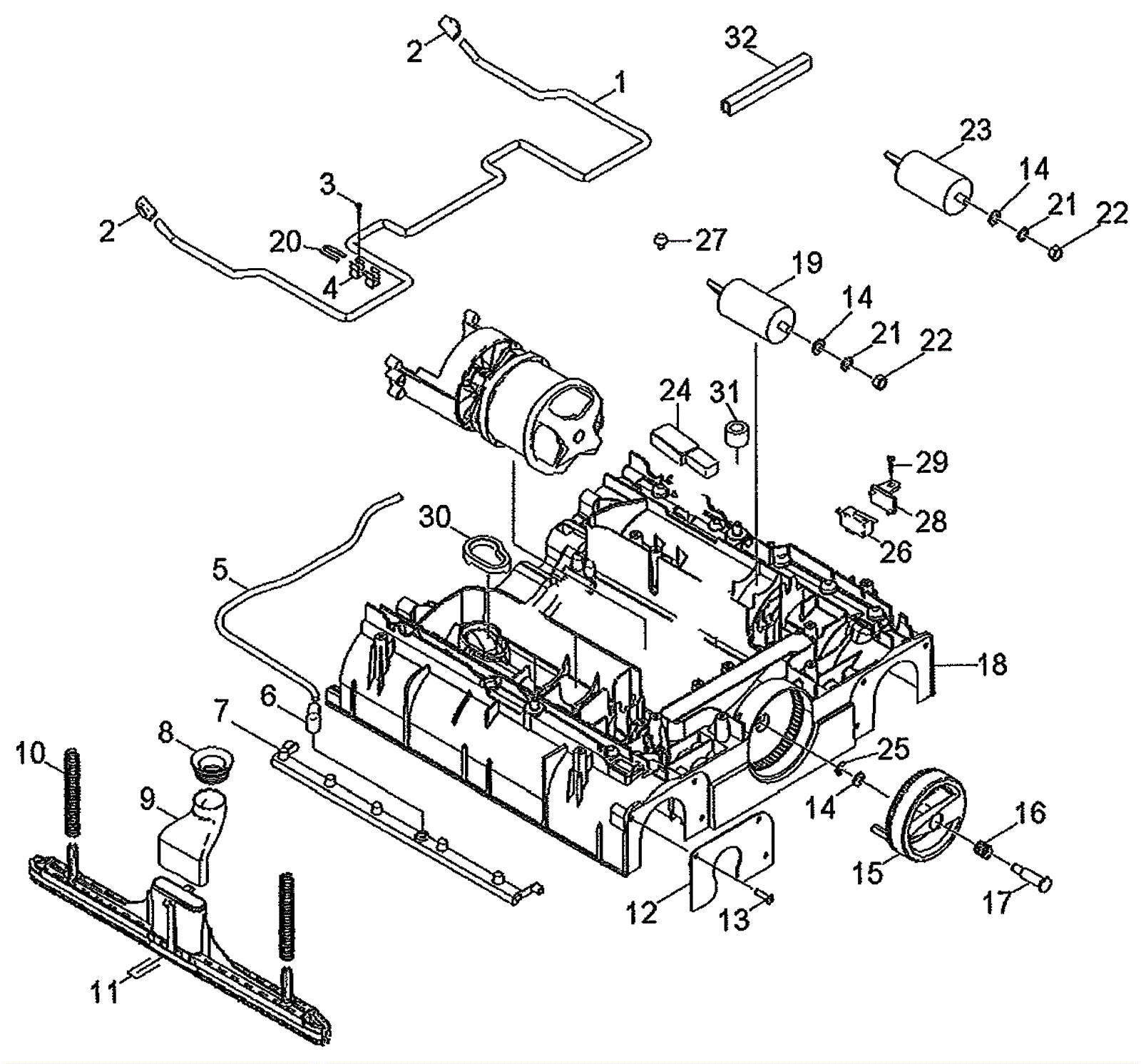

# | Part | Description | Price | Req | Notes | Availability |
1 |
183-2976
|
Suction bar retaining bracket |
$56.23
|
|
|
usually ships 9-20 days |
2 |
183-2977
|
Suction bar tab |
$2.12
|
|
|
usually ships 9-20 days |
3 |
183-2978
|
Screw M3 x 12mm |
$1.23
|
|
|
usually ships 9-20 days |
4 |
183-2979
|
Spring clip |
$4.53
|
|
|
usually ships 9-20 days |
5 |
183-2736
|
Hose |
$8.77
|
|
|
usually ships 9-20 days |
6 |
183-2980
|
Water distributor angle bushing |
$2.41
|
|
|
usually ships 9-20 days |
7 |
183-2981
|
Water distributor |
$6.97
|
|
|
usually ships 9-20 days |
8 |
183-2982
|
Suction bar joint ring |
$7.63
|
|
|
usually ships 9-20 days |
9 |
183-2983
|
Suction bar joining piece |
$23.80
|
|
|
usually ships 9-20 days |
10 |
183-2814
|
Helical spring |
$5.36
|
|
|
usually ships 9-20 days |
11a |
273-2024
|
Squeegee bar assembly (blades not available alone) |
$153.90
|
|
|
ships same day |
11b |
183-2985
|
Suction bar replacement |
$103.00
|
|
(oil resistant) |
usually ships 9-20 days |
12 |
183-2986
|
Brush holder plate |
$31.29
|
|
|
usually ships 9-20 days |
13 |
183-2889
|
Screw M5 x 20mm |
$1.23
|
|
|
usually ships 9-20 days |
14 |
183-0471
|
Washer |
$0.55
|
|
|
ships same day |
15 |
183-2987
|
Carriage adjustment handle |
$9.39
|
|
|
usually ships 9-20 days |
16 |
183-2709
|
Heilical spring |
$0.74
|
|
|
ships same day |
17 |
183-2988
|
Carriage bolt |
$23.04
|
|
|
usually ships 9-20 days |
18 |
183-2989
|
Brush housing |
$174.67
|
|
|
usually ships 9-20 days |
19 |
183-0887
|
Capacitor |
$68.61
|
|
|
usually ships 1-5 days |
20 |
183-2990
|
Reinforcement plate |
$7.59
|
|
|
usually ships 9-20 days |
21 |
183-2907
|
Serrated lock washer |
$1.23
|
|
|
usually ships 9-20 days |
22 |
183-0218
|
Hex nut |
$1.98
|
|
|
usually ships 1-5 days |
23 |
183-0888
|
Capacitor |
$67.70
|
|
|
usually ships 1-5 days |
24 |
183-2991
|
Starting electronics |
$507.07
|
|
|
usually ships 9-20 days |
25 |
183-0196
|
Washer lock |
$1.23
|
|
|
usually ships 1-5 days |
26 |
183-2992
|
Microswitch |
$10.85
|
|
|
usually ships 9-20 days |
27 |
183-2993
|
Rubber motor buffer |
$3.85
|
|
|
usually ships 9-20 days |
28 |
183-2994
|
Microswitch retainer |
$2.56
|
|
|
usually ships 9-20 days |
29 |
183-8116
|
Screw 5 x 20 |
$0.90
|
|
|
usually ships 9-20 days |
30 |
183-2995
|
Exhaust air seal |
$4.95
|
|
|
usually ships 9-20 days |
31 |
183-2996
|
Joint ring |
$3.22
|
|
|
usually ships 9-20 days |
32 |
183-2997
|
Profile gasket |
Call for price
|
|
(to order as cut goods) |
usually ships 9-20 days |
