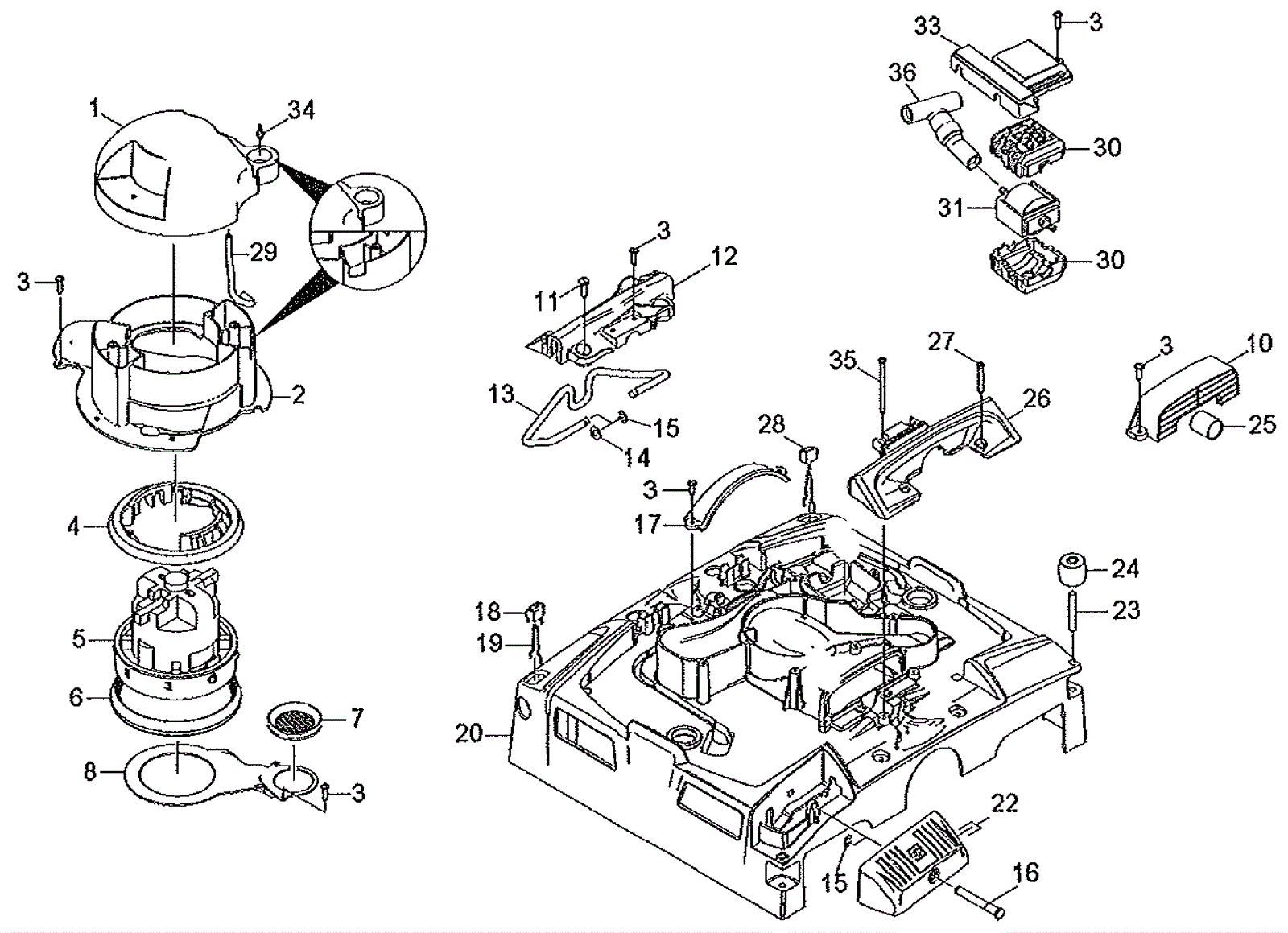

BR 16/3 Individual Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2949 Vacuum motor cover Call for price 1 usually ships 9-20 days
2 183-2950 Vacuum motor housing Call for price 1 usually ships 9-20 days
3 183-8116 Screw 5 x 20 $0.90 18 usually ships 9-20 days
4 183-2951 Top vacuum motor seal $15.41 1 usually ships 9-20 days
5 183-2952 120V vacuum motor $276.97 1 usually ships 9-20 days
6 183-2953 Bottom vacuum motor seal $20.18 1 usually ships 9-20 days
7 183-0072 Joint ring $6.78 1 usually ships 9-20 days
8 183-2954 Cover $7.16 1 usually ships 9-20 days
10 183-2955 Right hand splash guard $5.00 1 usually ships 9-20 days
11 183-2956 Screw M8 x 16mm $1.73 4 usually ships 9-20 days
12 183-2957 Left hand retaining bracket $108.23 1 usually ships 9-20 days
13 183-2958 Retaining bracket adjustment $40.84 1 usually ships 9-20 days
14 183-0099 Washer $1.23 2 usually ships 1-5 days
15 183-0196 Washer lock $1.23 3 usually ships 1-5 days
16 183-2959 Pedal bolt $23.89 1 usually ships 9-20 days
17 183-2960 Left hand splash guard $5.00 1 usually ships 9-20 days
18 183-2961 Wheel release button $1.58 1 usually ships 9-20 days
19 183-2962 Wheel release button spring $5.00 2 usually ships 9-20 days
20 183-2963 Housing $113.79 1 usually ships 9-20 days
22 183-2964 Pedal $35.12 1 usually ships 9-20 days
23 183-2965 Deflector roller bolt $10.30 2 usually ships 9-20 days
24 183-2966 Deflector roller $1.93 2 usually ships 9-20 days
25 183-2967 Bushing $6.15 2 usually ships 9-20 days
26 183-2968 Right hand retaining bracket $25.71 1 usually ships 9-20 days
27 183-2969 Screw M5 x 50mm $1.96 4 usually ships 9-20 days
28 183-2970 Wheel release button $1.58 1 usually ships 9-20 days
29 183-2736 Hose $8.77 1 usually ships 9-20 days
30 183-2971 Pump bearing $8.58 2 usually ships 9-20 days
31 183-4754 Water pump $415.24 1 usually ships 9-20 days
33 183-2972 Pump cover $5.00 1 usually ships 9-20 days
34 183-2973 Pin $9.12 1 usually ships 9-20 days
35 183-2974 Screw M5 x 80mm $1.73 2 usually ships 9-20 days
36 183-2975 Check valve $32.99 1 usually ships 9-20 days
