BR 16/3

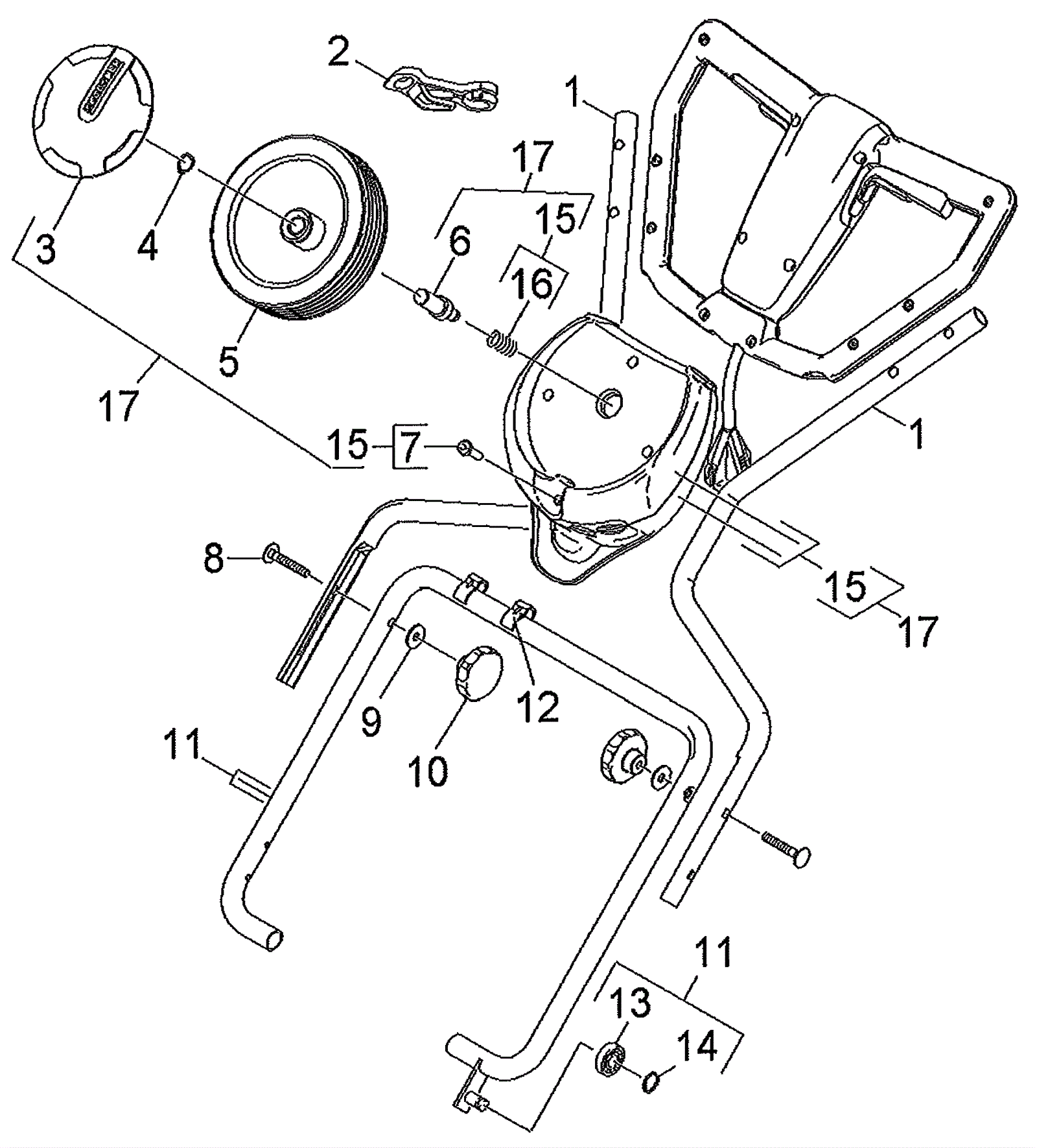

Retaining Bracket Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-2938
Retaining bracket
$54.06
2
usually ships 9-20 days
2
183-0188
Pull relief
$8.08
1
usually ships 9-20 days
3
183-2939
Wheel cap
$4.93
2
usually ships 9-20 days
4
183-0252
Spring clip
$1.23
2
usually ships 1-5 days
5
183-2940
Wheel
$16.31
2
usually ships 9-20 days
6
183-2941
Axle
$64.32
2
usually ships 9-20 days
7
183-8116
Screw 5 x 20
$0.90
4
usually ships 9-20 days
8
183-2942
Screw M8 x 50mm
$1.23
2
usually ships 9-20 days
10
183-2943
Knob
$7.06
2
usually ships 9-20 days
11
183-2944
Retaining bracket
$200.69
1
(includes 13,14)
usually ships 9-20 days
12
183-2945
Cable clip
$1.71
2
usually ships 9-20 days
13
183-2765
Ball bearing
$16.12
1
usually ships 9-20 days
14
183-0196
Washer lock
$1.23
1
usually ships 1-5 days
15
183-2946
Wheel holder
$26.10
1
usually ships 9-20 days
16
183-2947
Spring
$1.23
2
usually ships 9-20 days
17
183-2948
Wheels and holder
$154.87
1
(includes 3-7, 15-16)
usually ships 9-20 days
