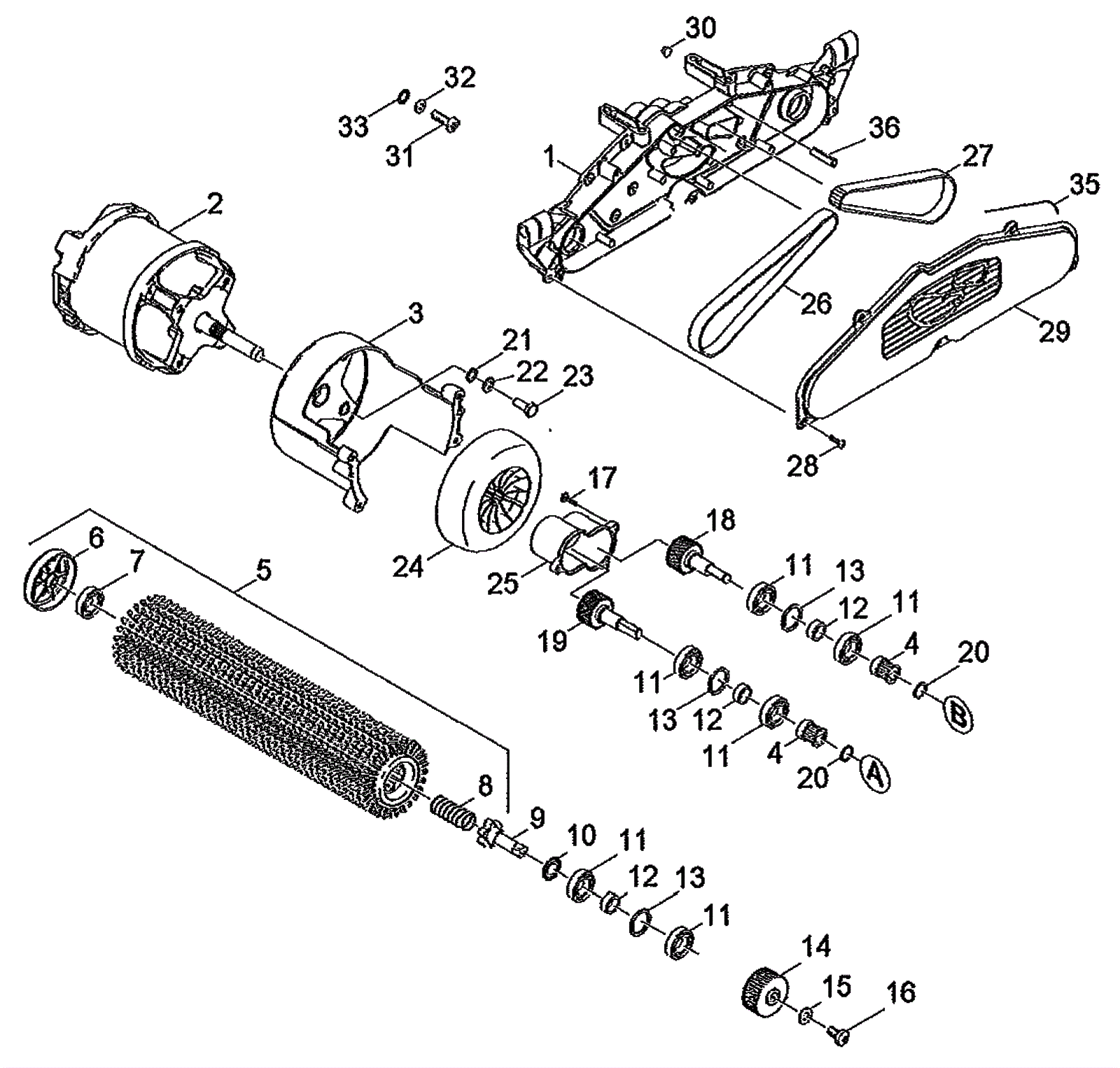

BR 16/3 Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2891 Gear case $100.09 1 usually ships 14-19 days
2 183-4773 Brush motor $767.79 1 usually ships 14-19 days
3 183-2892 Flange $131.99 1 usually ships 14-19 days
4 183-2893 Belt pulley $30.79 2 usually ships 14-19 days
5a 183-2894 Roller brush (orange) $152.89 2 (includes 6-8) (old color red) usually ships 14-19 days
5b 183-2895 Roller brush (black) $437.79 2 (includes 6-8) usually ships 14-19 days
5c 183-2896 Roller brush (white) $106.69 2 (includes 6-8) (old color black) usually ships 14-19 days
5d 273-6415 Hard cylindrical scrubbing brush (green) $435.49 2 (includes 6-8) (old color grey) usually ships 11-15 days
5e 183-2897 Roller brush (horsehair) $203.49 2 (includes 6-8) usually ships 14-19 days
5f 183-2898 Roller brush (red) $92.39 2 (includes 6-8) usually ships 14-19 days
6 183-2899 Thread deflector $41.79 2 usually ships 14-19 days
7 183-0375 Ball bearing $5.50 2 usually ships 14-19 days
8 183-2900 Helical spring $18.69 2 usually ships 14-19 days
9 183-2901 Driveshaft $38.49 2 usually ships 14-19 days
10 183-2902 Joint ring $5.27 2 usually ships 14-19 days
11 183-2903 Ball bearing $23.09 8 usually ships 14-19 days
12 183-2904 Spacer $5.50 4 usually ships 14-19 days
13 283-9123 Lock ring $2.63 4 usually ships 14-19 days
14 183-2905 Belt pulley $32.99 2 usually ships 14-19 days
15 183-0379 Washer $2.63 2 usually ships 1-5 days
16 183-2887 Screw M6 x 12mm $2.63 2 usually ships 14-19 days
17 183-2906 Screw M5 x 16mm $2.63 3 usually ships 14-19 days
18 183-4644 Left gear shaft $134.19 1 usually ships 1-5 days
19 183-4645 Right gear shaft $128.69 1 usually ships 1-5 days
20 183-0388 Spring plate $2.63 2 usually ships 1-5 days
21 183-2907 Serrated lock washer $2.63 4 usually ships 14-19 days
22 183-0099 Washer $2.63 4 usually ships 1-5 days
23 183-2908 Screw M8 x 20mm $2.63 4 usually ships 14-19 days
24 183-4646 Blower wheel $8.79 1 usually ships 1-5 days
25 183-4647 Gear cover $5.27 1 usually ships 1-5 days
26 183-2748 Toothed belt $27.49 1 usually ships 14-19 days
27 183-2909 Toothed belt $29.69 1 usually ships 14-19 days
28 183-8116 Screw 5 x 20 $1.31 6 ships same day
29 183-2910 Gear case cover $10.99 1 usually ships 14-19 days
30 183-2911 Cap $2.63 1 usually ships 14-19 days
31 183-2912 Screw M6 x 30mm $2.63 4 usually ships 14-19 days
32 183-0237 Washer $2.63 1 usually ships 1-5 days
33 183-2913 Serrated lock washer $2.63 4 usually ships 14-19 days
35 183-2914 Cellular rubber string $5.27 1 usually ships 14-19 days
36 183-2915 Spring pin $2.63 2 usually ships 14-19 days
