BR 16/3

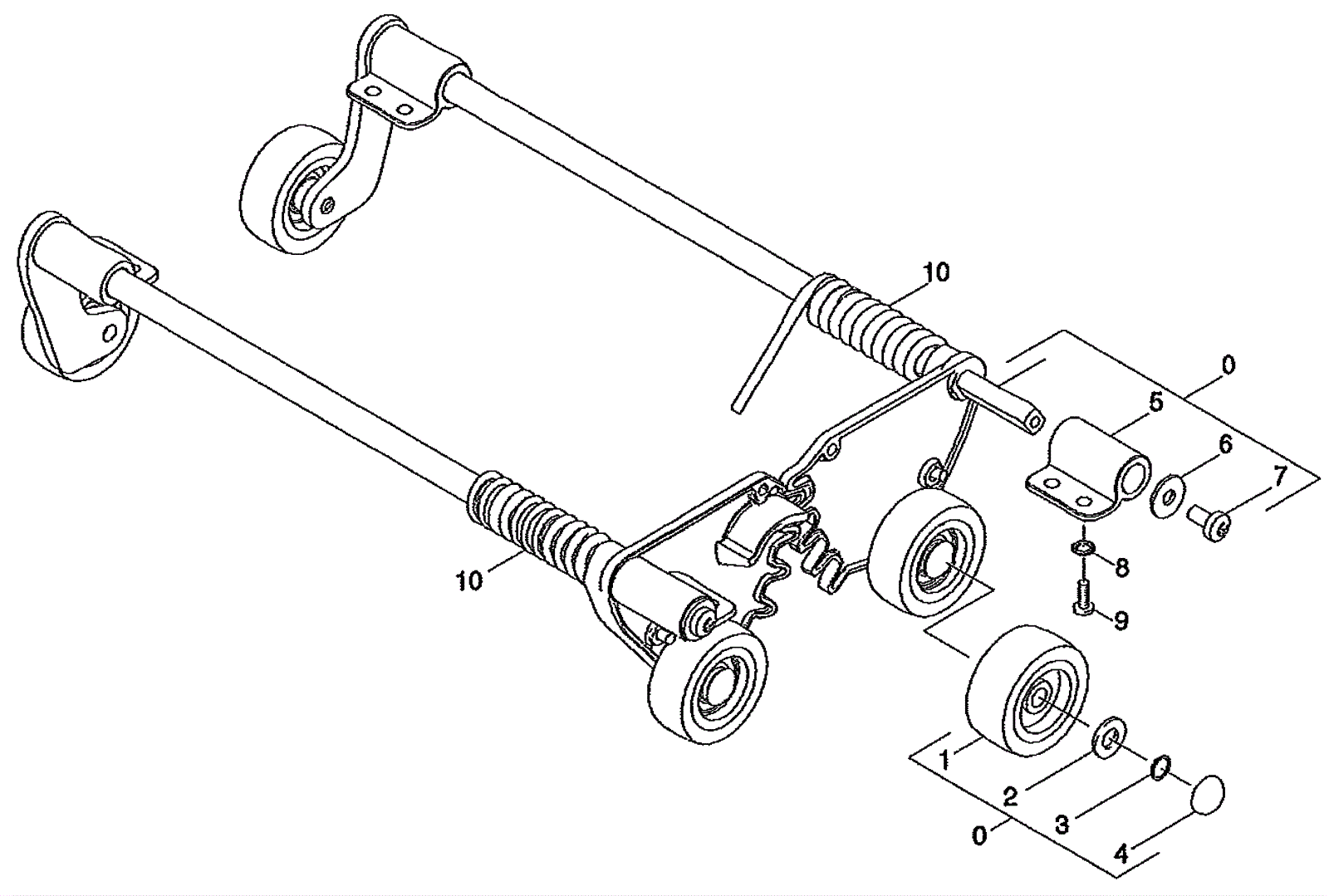

Chassis Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
0
183-2885
Carriage kit
$592.25
1
(includes 1-9)
usually ships 9-20 days
1
183-2849
Wheel (OBSOLETE)
$8.91
4
usually ships 9-20 days
2
183-2854
Joint ring
$1.23
4
usually ships 9-20 days
3
183-2853
Spring clip
$1.29
4
usually ships 9-20 days
4
183-0197
Wheel cap
$2.43
4
usually ships 9-20 days
5
183-2886
Carriage
$1.98
4
usually ships 9-20 days
6
183-0379
Washer
$1.23
4
usually ships 1-5 days
7
183-2887
Screw M6 x 12mm
$1.83
4
usually ships 9-20 days
8
183-2888
Serrated lock washer
$1.23
8
usually ships 9-20 days
9
183-2889
Screw M5 x 20mm
$1.23
8
usually ships 9-20 days
10
183-2890
Leg spring set
$70.86
1
usually ships 9-20 days
