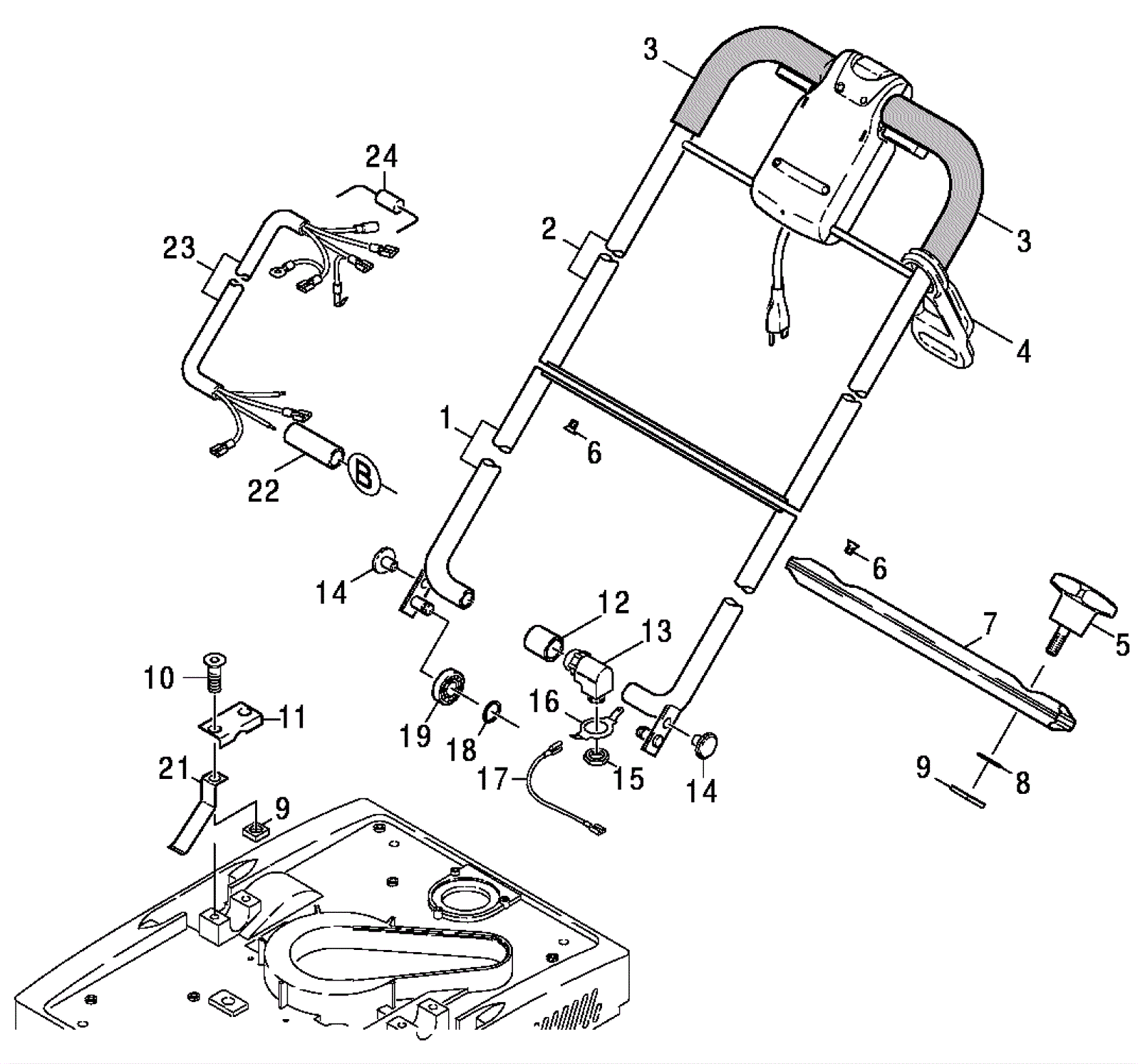

BR 400 99405 Handle Assembly (After SN16790)

#PartDescriptionPriceReqNotesAvailability
1 183-2782 Strap $205.54 1 usually ships 8-21 days
2 183-2783 Strap $233.85 1 usually ships 8-21 days
3 183-2784 Cellular handle $21.42 2 usually ships 8-21 days
4 183-0188 Pull relief $8.08 1 usually ships 8-21 days
5 183-2785 Star handle $6.79 2 usually ships 8-21 days
6a 183-2786 Screw flat head (OBSOLETE) $1.18 6 usually ships 8-21 days
6b 183-2787 Screw M6 x 8mm flat head $1.64 6 usually ships 8-21 days
7 183-2788 Hinge (OBSOLETE) $29.88 1 usually ships 8-21 days
8 183-0090 Washer lock $1.20 2 usually ships 8-21 days
9 183-0947 Square nut $1.26 6 usually ships 8-21 days
11 183-0948 Plate $21.48 2 usually ships 1-5 days
12 183-2763 Bush $16.99 2 usually ships 8-21 days
13a 183-2764 Angle cable connector Call for price 1 usually ships 8-21 days
13b 183-2789 Angled cable gland $69.15 1 usually ships 8-21 days
14 183-2790 Bolt $6.97 2 usually ships 8-21 days
15 183-2781 Counternut $2.00 1 usually ships 8-21 days
16 183-2791 Retainer clip $9.52 1 usually ships 8-21 days
17 183-2792 Cable $5.00 1 usually ships 8-21 days
18 183-0196 Washer lock $1.23 2 usually ships 1-5 days
19 183-2765 Ball bearing $16.12 2 usually ships 8-21 days
21 183-0949 Plate spring $8.65 2 usually ships 1-5 days
22 183-2793 Insulating hose $9.52 1 usually ships 8-21 days
23 183-2794 Cable $148.31 1 usually ships 8-21 days
24 183-2795 Diode $3.64 1 usually ships 8-21 days
