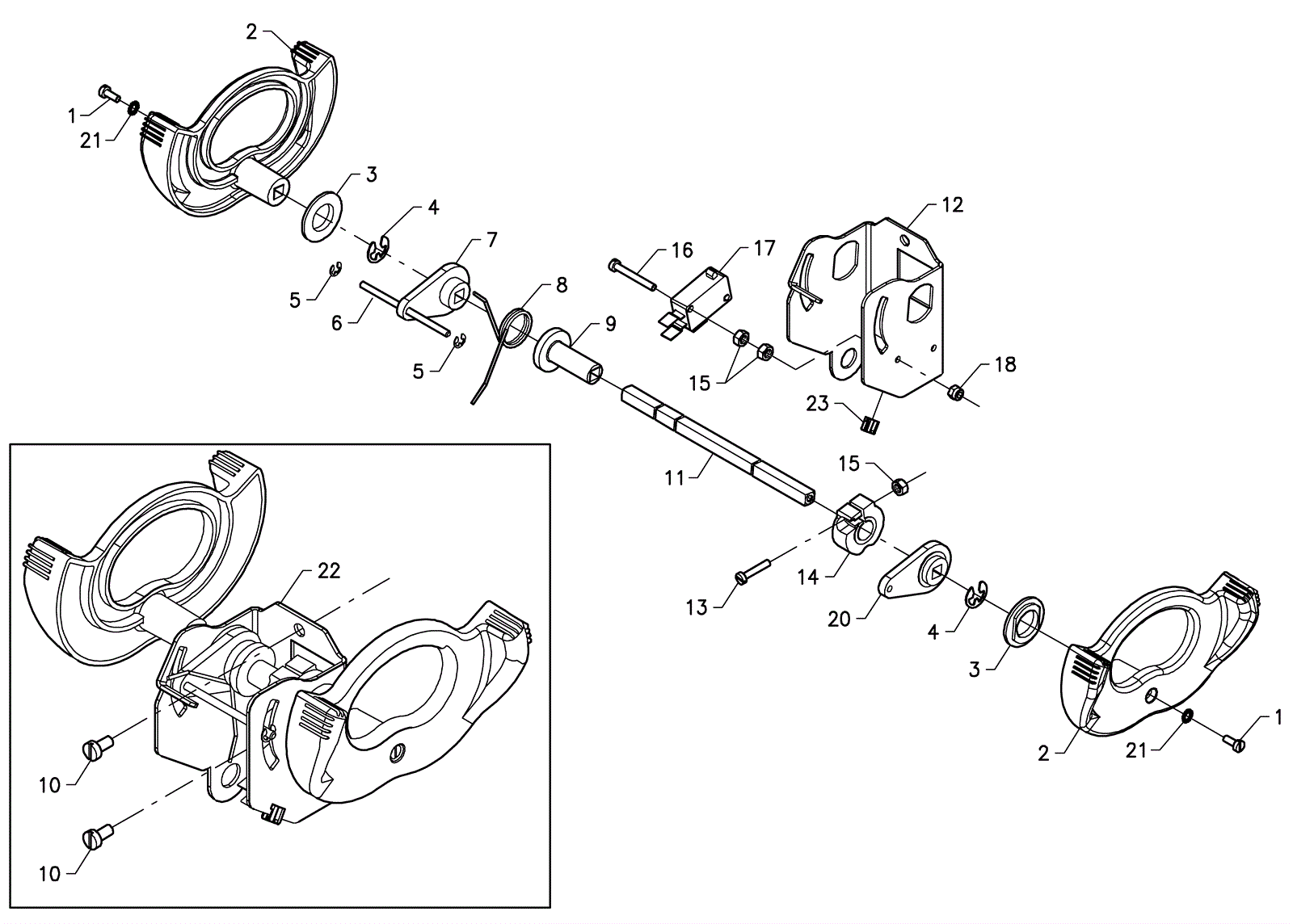

BD 14/4 Drive Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8337 Screw M3 x 10 $1.35 2 usually ships 8-21 days
2 183-8339 Lever $5.50 2 usually ships 8-21 days
3 183-8347 Bushing $1.35 2 usually ships 8-21 days
4 183-8343 Ring $1.35 2 usually ships 8-21 days
5 183-8354 Ring $1.35 1 usually ships 8-21 days
6 183-8355 Spring $3.43 1 usually ships 8-21 days
7 183-8353 Lever $1.51 1 usually ships 8-21 days
8 183-8346 Spring $5.50 1 usually ships 8-21 days
9 183-8351 Bushing $1.63 1 usually ships 8-21 days
10 183-8332 Screw M5 x 8 $1.35 1 usually ships 8-21 days
11 183-8342 shaft $13.98 1 ships same day
12 183-8344 Bracket $24.77 1 usually ships 8-21 days
13 183-8350 Screw $1.35 1 usually ships 8-21 days
14 183-8349 Micro switch cam $2.38 1 usually ships 8-21 days
15 183-8352 Nut $1.35 3 ships same day
16 183-8345 Screw M3 x 25 $1.35 1 usually ships 8-21 days
17 183-4712 10amp microswitch $12.82 1 usually ships 8-21 days
18 183-8352 Nut $1.35 1 ships same day
20 183-8348 Lever $1.51 1 ships same day
21 183-8338 Washer $1.35 2 (after SN 13001090) usually ships 8-21 days
22 183-8384 Drive control assembly $128.81 1 (after SN 13001090) usually ships 8-21 days
23 183-2705 Clamp holder clip $4.51 1 (after SN 13001090) usually ships 8-21 days
