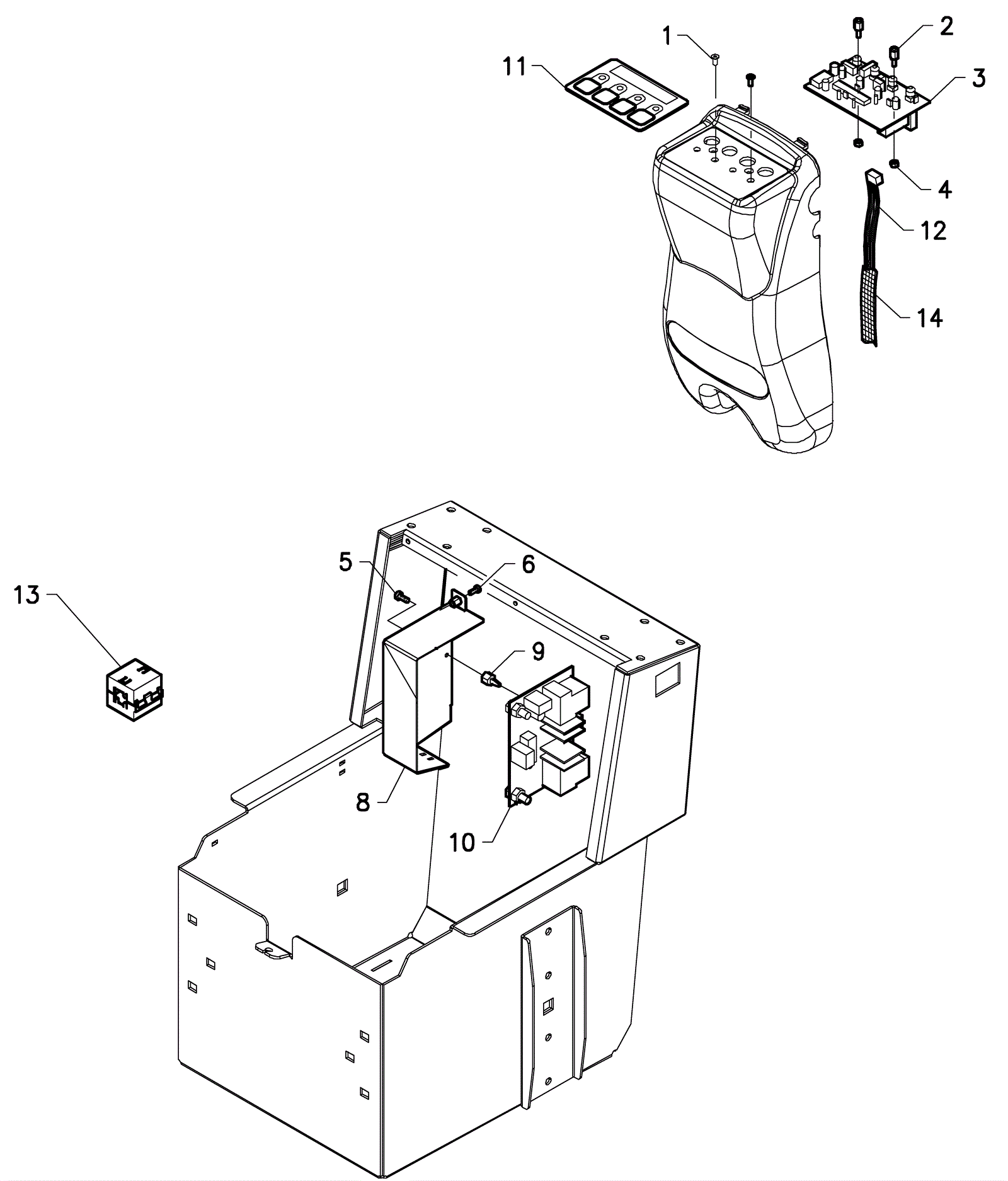

BD 14/4 Electrical layout assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8506 Screw $1.35 2 usually ships 8-21 days
2 183-2690 Hexagonal spacer $3.45 2 usually ships 8-21 days
3 183-0980 Control check card $207.58 1 usually ships 8-21 days
4 183-8386 Nylon nut $1.35 2 usually ships 8-21 days
5 183-2691 Screw M3.5 x 6.5mm $1.35 3 usually ships 8-21 days
6 183-2433 Screw M4 x 10mm $1.35 2 usually ships 8-21 days
8a 183-2692 Relay check card cover $64.06 1 (after SN 12003881) usually ships 8-21 days
8b 183-2695 Check card relay cover $46.83 1 (before SN 12003882) usually ships 8-21 days
9 183-2693 Plastic coupler pin $1.30 3 usually ships 8-21 days
10 183-2267 Relay check card $206.86 1 usually ships 8-21 days
11 183-2660 Instrument board decal $10.69 1 usually ships 8-21 days
12 183-2268 Cable and sheath $32.89 1 usually ships 8-21 days
13 183-2694 Ferrite with quick coupling $13.81 1 usually ships 8-21 days
14 183-2269 Sheath $3.27 1 usually ships 1-5 days
N/S 183-8460 Nut $1.35 2 (before SN 12003882) usually ships 13-23 days
