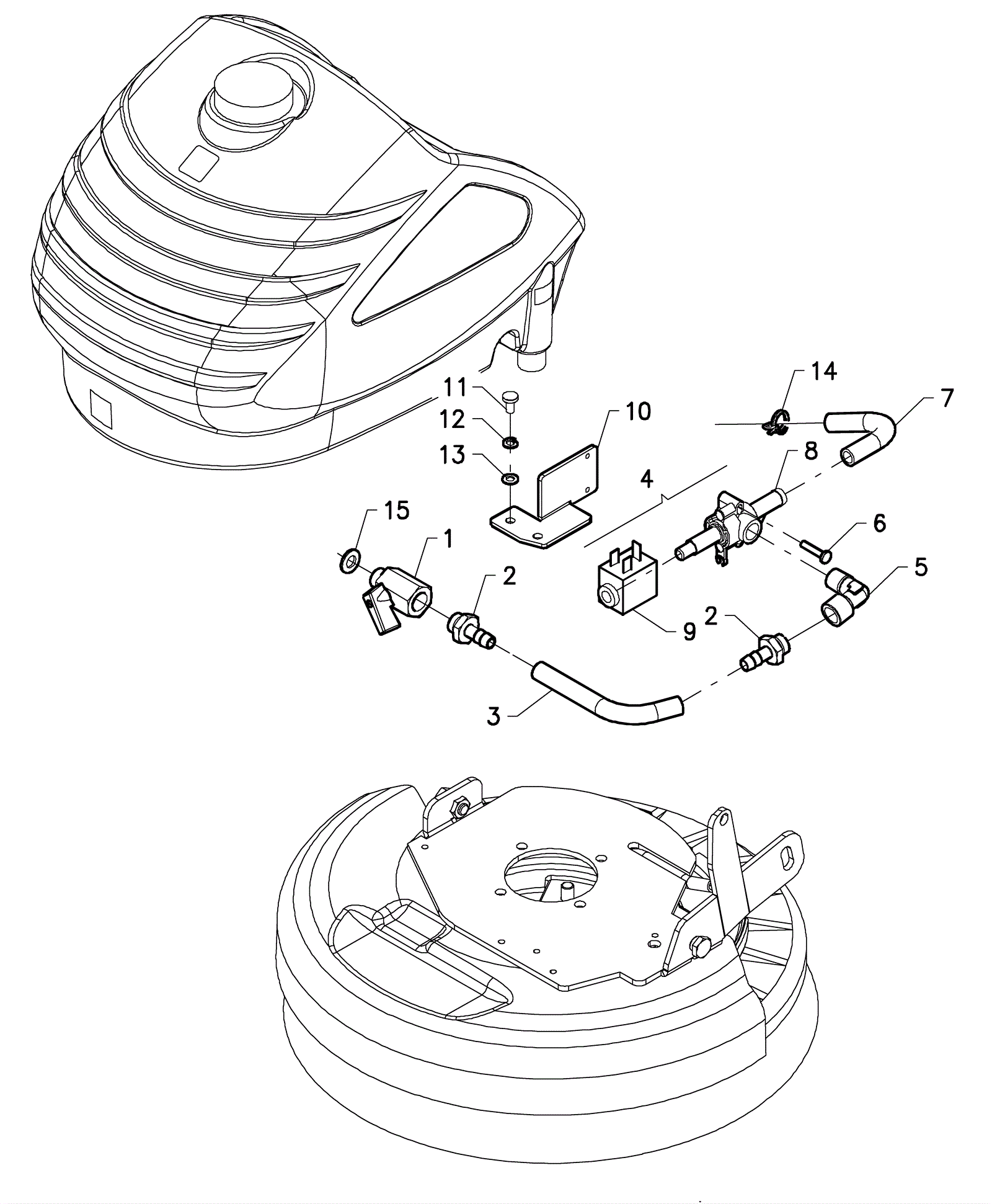

BD 14/4 Water Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2680 Solution valve body $23.64 1 usually ships 8-21 days
2 183-2681 Straight connector $7.70 2 usually ships 8-21 days
3 183-2682 Hose $2.52 1 usually ships 8-21 days
4 183-2683 Solenoid valve assembly $121.00 1 (includes 8 and 9) usually ships 8-21 days
5 183-2684 Elbow $15.37 1 usually ships 8-21 days
6 183-2588 Screw M4 x 20mm $1.35 2 usually ships 8-21 days
7 183-2685 Hose $2.50 1 usually ships 8-21 days
8 183-4692 Solenoid valve $76.18 1 usually ships 8-21 days
9 183-2686 Solenoid valve coil $38.30 1 usually ships 8-21 days
10 183-2687 Solenoid valve support $15.06 1 usually ships 8-21 days
11 183-2688 Screw M5 x 10mm $1.35 2 usually ships 8-21 days
12a 183-2578 Lock washer $1.35 2 (after SN 11004871) usually ships 8-21 days
12b 183-8327 Washer $1.35 1 (before SN 11004871) usually ships 8-21 days
13 183-2610 Washer $1.35 2 usually ships 8-21 days
14 183-2689 Spring clamp (OBSOLETE) Call for price 1 usually ships 8-21 days
15 183-8234 Gasket $1.93 1 ships same day
