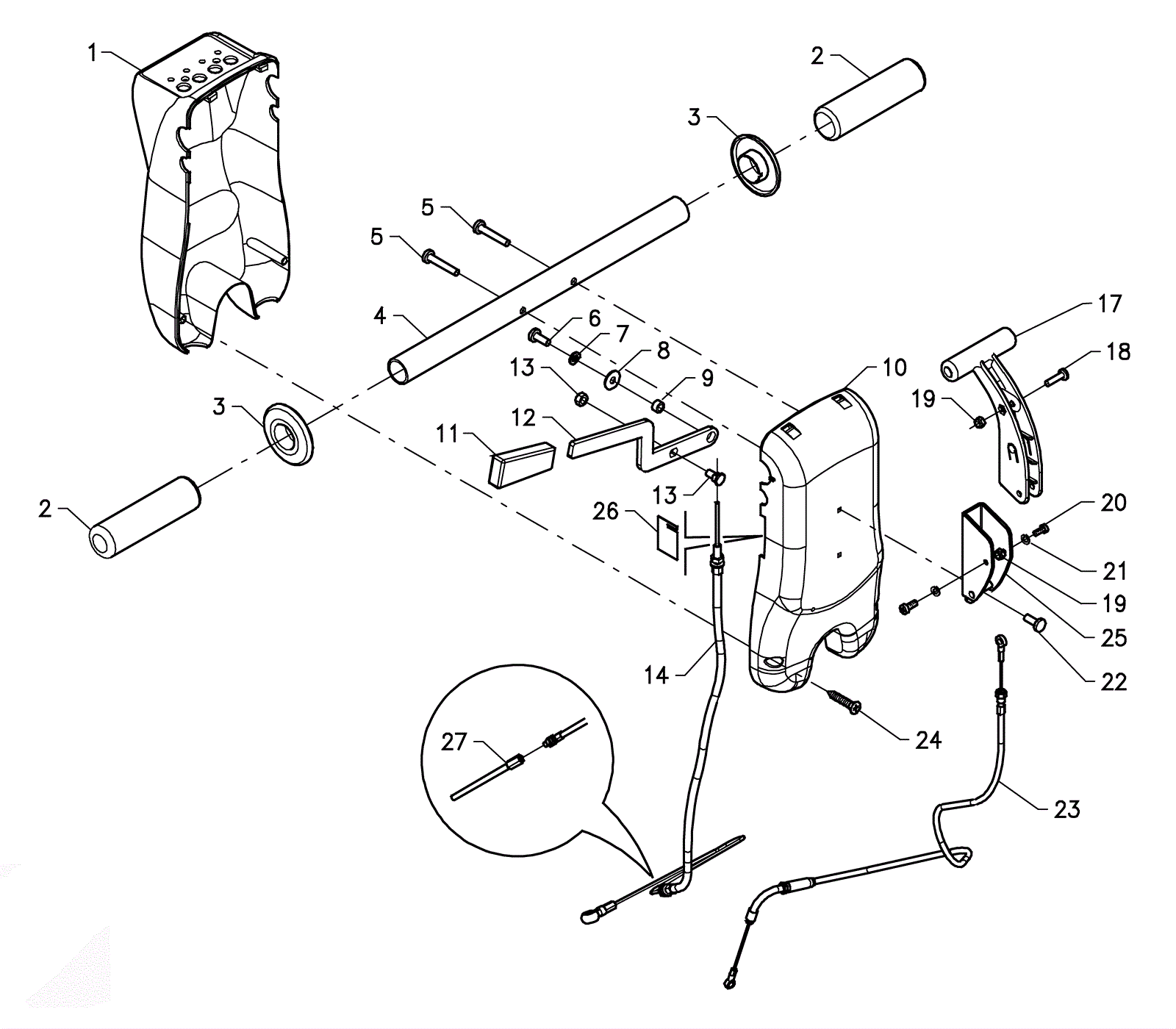

BD 14/4 Control Levers Assembly From SN 13001091 to SN 16001418

#PartDescriptionPriceReqNotesAvailability
1 183-2647 Handlebar cover $25.71 1 usually ships 8-21 days
2 183-8336 Handle grip $9.17 2 usually ships 8-21 days
3 183-8396 Handle cap $2.61 2 usually ships 8-21 days
4 183-8340 Handle tube $25.04 1 usually ships 8-21 days
5 183-8388 Screw $1.35 2 usually ships 8-21 days
6 183-2648 Screw M6 x 16mm $1.35 1 usually ships 8-21 days
7 183-2539 Lock washer $1.35 1 usually ships 8-21 days
9 183-2649 Bushing $7.41 1 usually ships 8-21 days
10 183-2650 Handlebar body $80.92 1 usually ships 8-21 days
11 183-8285 Knob $4.51 1 usually ships 8-21 days
12 183-2651 Release lever $13.65 1 usually ships 8-21 days
13 183-2652 Holdfast and nut $3.09 1 usually ships 8-21 days
14 183-2653 Handlebar cable $20.25 1 usually ships 8-21 days
17 183-2654 Squeegee lever $11.25 1 usually ships 8-21 days
18 183-2655 Screw M5 x 20mm $1.35 1 usually ships 8-21 days
19 183-8314 Nut $1.35 3 usually ships 8-21 days
20 183-2656 Screw M5 x 12mm $1.35 2 usually ships 8-21 days
21 183-8327 Washer $1.35 2 usually ships 8-21 days
22 183-2662 Screw M5 x 12mm (OBSOLETE) Call for price 2 usually ships 8-21 days
23a 183-2661 Squeegee cable $43.49 1 (after SN 15004067) usually ships 8-21 days
23b 183-2657 Squeegee cable $41.36 1 (before SN 15004067) usually ships 8-21 days
24 183-2658 Screw M4 x 25mm $1.35 2 usually ships 8-21 days
25 183-2659 Lever support $38.40 1 usually ships 8-21 days
26 183-2663 Handle bar protection $4.81 1 usually ships 8-21 days
27 183-2664 Extension sheath $8.35 1 usually ships 8-21 days
