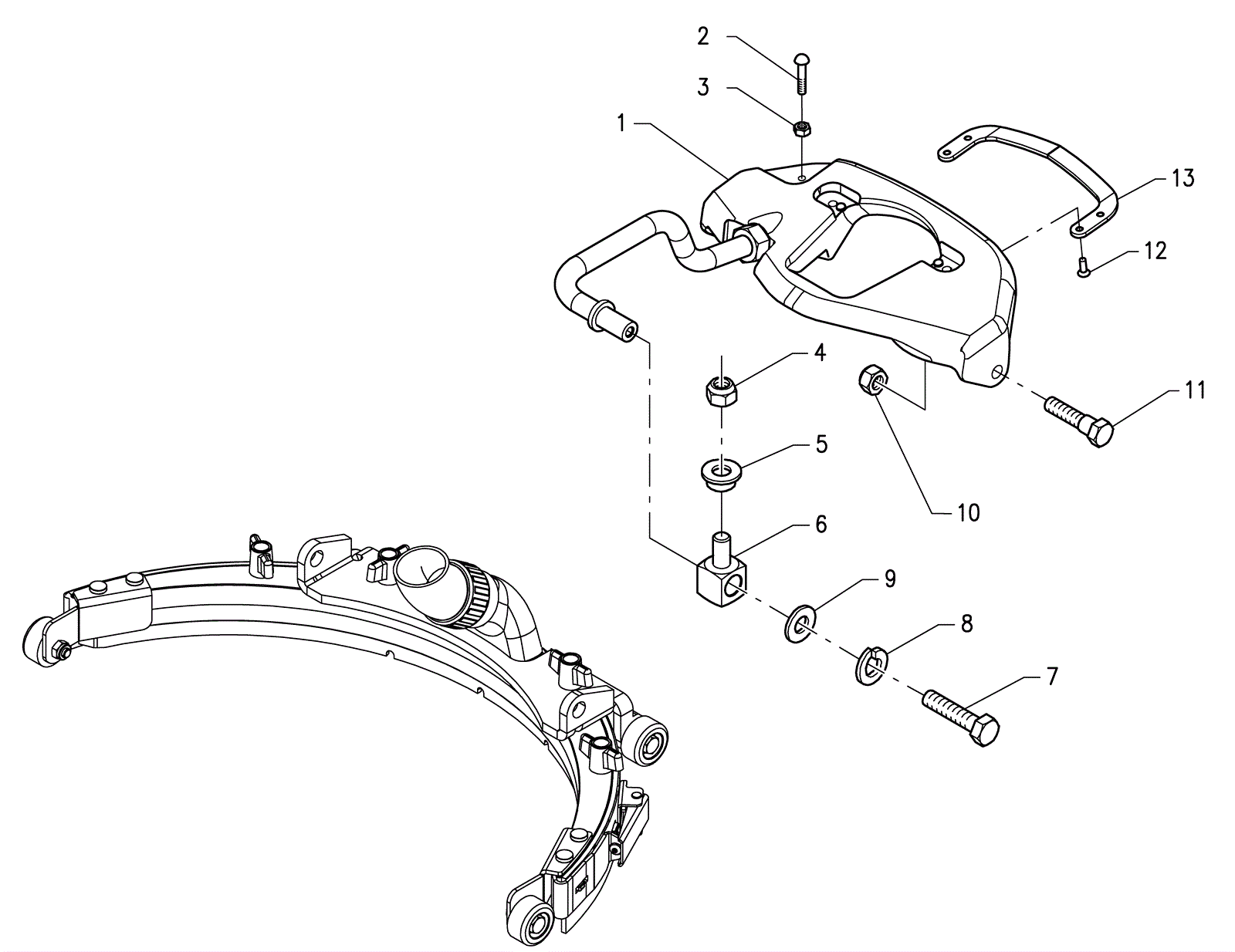

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
183-2615
|
Squeegee arm assembly |
$238.21
|
1 |
|
usually ships 8-21 days |
2 |
183-2616
|
Screw M5 x 30mm |
$1.97
|
1 |
|
usually ships 8-21 days |
3 |
183-2617
|
Nut (OBSOLETE) |
Call for price
|
1 |
|
usually ships 8-21 days |
4 |
183-8424
|
Nut |
$1.35
|
1 |
|
usually ships 8-21 days |
5 |
183-2611
|
Brass bushing |
$11.52
|
1 |
|
usually ships 8-21 days |
6 |
183-2612
|
Arm joint |
$20.23
|
1 |
|
usually ships 8-21 days |
8 |
183-2539
|
Lock washer |
$1.35
|
1 |
|
usually ships 8-21 days |
11 |
183-2145
|
Bolt arm stud |
$8.92
|
2 |
|
usually ships 1-5 days |
12a |
183-2624
|
Screw M4 x 12mm |
$1.35
|
4 |
|
usually ships 8-21 days |
12b |
183-2625
|
Screw M4 x 12mm (OBSOLETE) |
Call for price
|
4 |
|
usually ships 8-21 days |
13 |
183-2626
|
Squeegee lifting U support |
$26.14
|
1 |
|
usually ships 8-21 days |
