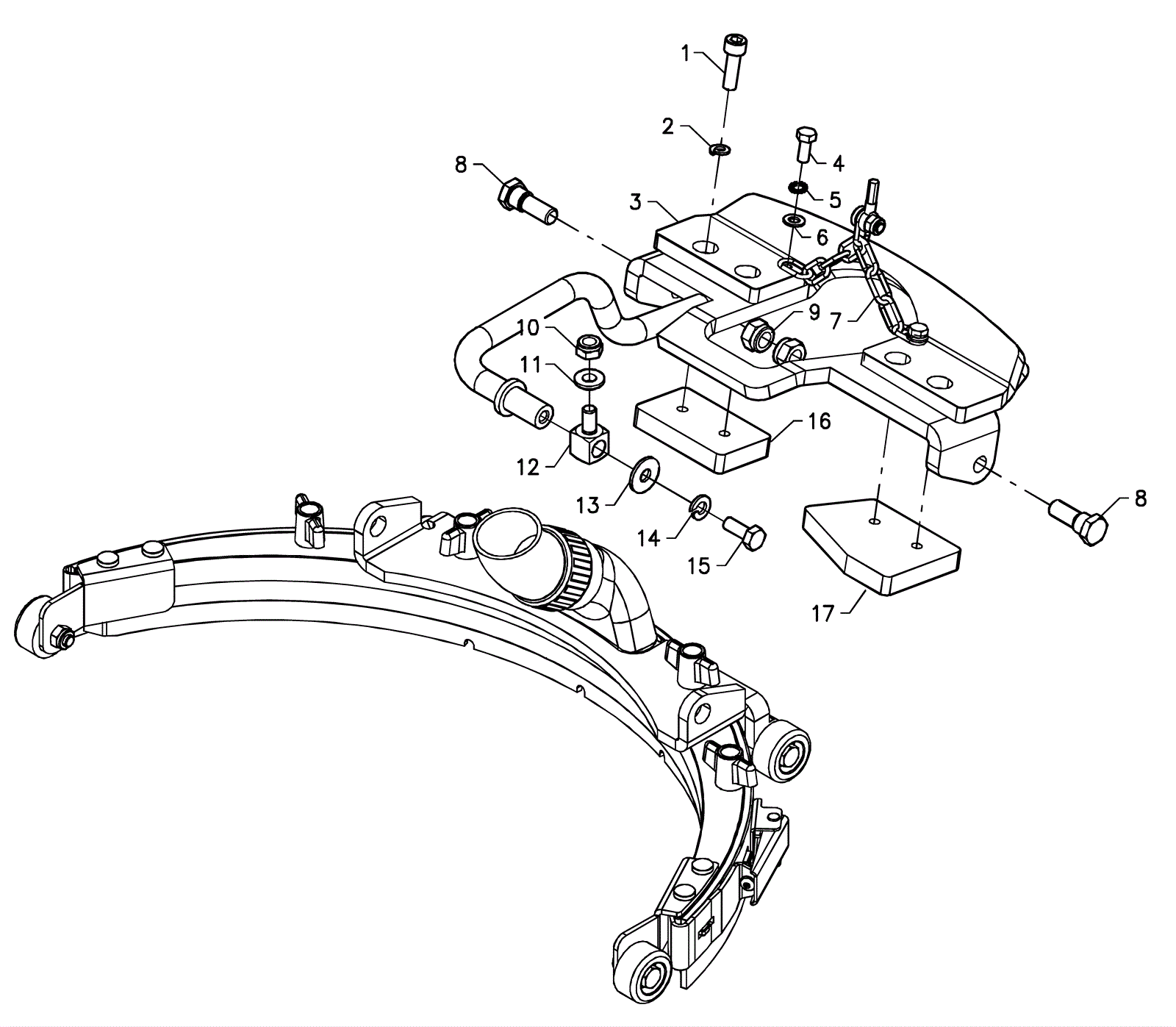

BD 14/4 Squeegee Control Assemby Before SN 10000720

#PartDescriptionPriceReqNotesAvailability
1 183-2608 Screw M6 x 20mm $1.35 1 usually ships 8-21 days
2 183-2578 Lock washer $1.35 1 usually ships 8-21 days
3 183-2609 Squeegee arm $319.91 1 usually ships 8-21 days
4 183-2581 Screw M5 x 12mm $1.35 1 usually ships 8-21 days
5 183-2578 Lock washer $1.35 1 usually ships 8-21 days
6 183-2610 Washer $1.35 1 usually ships 8-21 days
7 183-4713 Chain $3.43 1 usually ships 8-21 days
8 183-2145 Bolt arm stud $8.92 1 usually ships 1-5 days
10 183-8424 Nut $1.35 1 usually ships 8-21 days
11 183-2611 Brass bushing $11.52 1 usually ships 8-21 days
12 183-2612 Arm joint $20.23 1 usually ships 8-21 days
14 183-2539 Lock washer $1.35 1 usually ships 8-21 days
16 183-2613 Right hand squeegee arm weight $29.10 1 usually ships 8-21 days
17 183-2614 Left hand squeegee arm weight $31.59 1 usually ships 8-21 days
