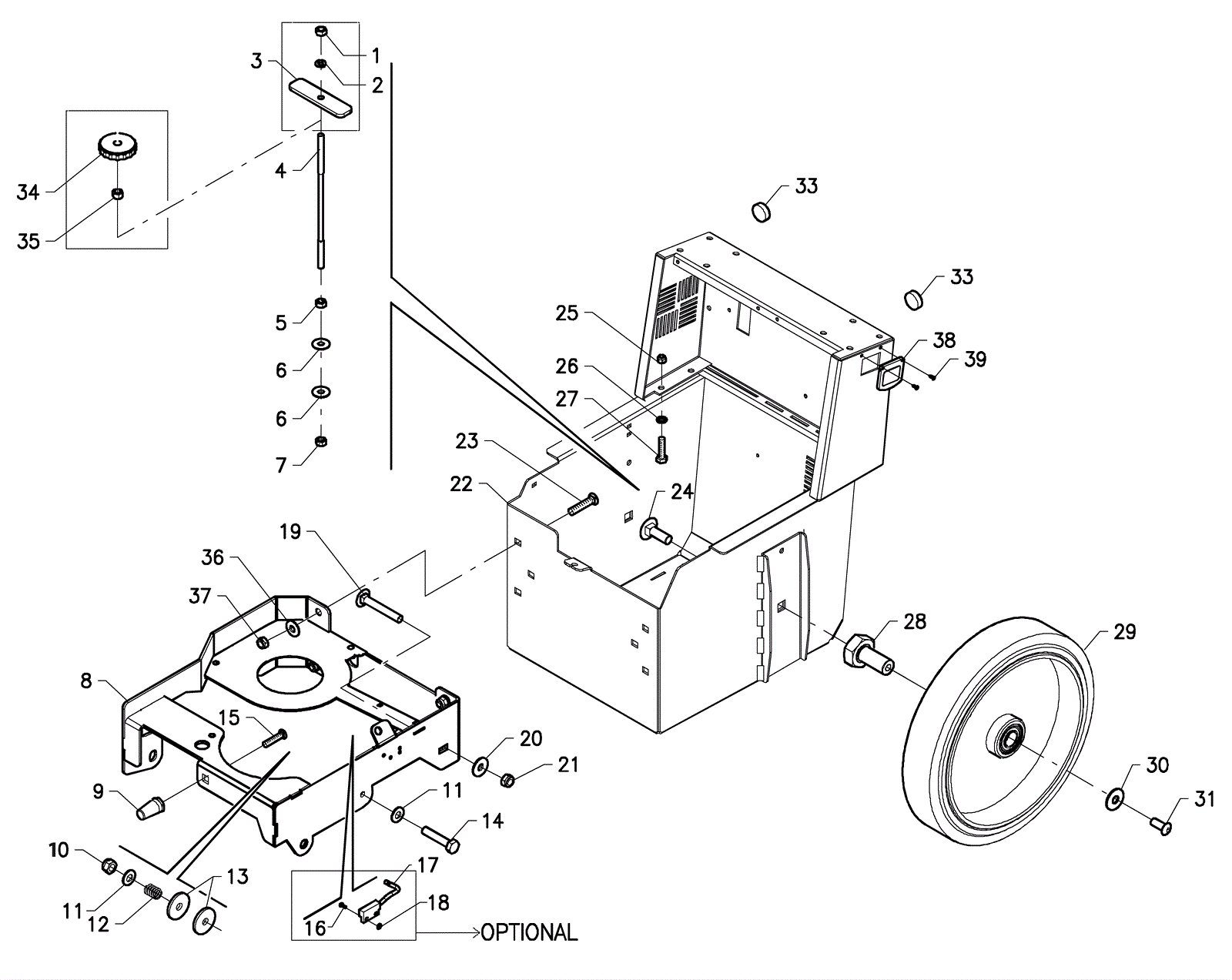

BD 14/4 Frame Assembly From SN 11000112 to SN 15004066

#PartDescriptionPriceReqNotesAvailability
1 183-8394 Nut $1.35 1 usually ships 8-21 days
2 183-2539 Lock washer $1.35 1 usually ships 8-21 days
3 183-2540 Plate $6.52 1 usually ships 8-21 days
4 183-2541 Tie Rod $10.95 1 usually ships 8-21 days
8 183-2542 Front frame (OBSOLETE) $250.51 1 usually ships 8-21 days
9 183-2543 Tank pin $17.13 1 usually ships 8-21 days
11 183-8307 Washer $5.17 2 usually ships 8-21 days
12 183-2544 Compression spring $4.00 1 usually ships 8-21 days
13 183-2545 Washer $2.04 2 usually ships 8-21 days
14a 183-2556 Screw M8 x 40mm $1.35 1 (from SN 13000557 - SN 13001851) usually ships 8-21 days
14b 183-2546 Screw M8 x 35mm $1.35 1 (from SN 11000112 - SN 15004066) usually ships 8-21 days
15 183-2547 Screw M8 x 20mm $1.49 1 usually ships 8-21 days
16a 183-2557 Screw M3 x 6mm $1.35 1 (from SN 13000557 - SN 13001851)(optional) usually ships 8-21 days
16b 183-8350 Screw $1.35 1 (from SN 11000112 - SN 15004066) usually ships 8-21 days
17a 183-2558 Magnetic contact (OBSOLETE) Call for price 1 (from SN 13000557 - SN 13001851)(optional) usually ships 8-21 days
17b 183-8210 16amp Switch $10.98 1 (from SN 11000112 - SN 15004066) usually ships 8-21 days
18a 183-8368 Washer $1.35 1 (from SN 13000557 - SN 13001851)(optional) usually ships 8-21 days
18b 183-2548 Washer $1.30 1 (from SN 11000112 - SN 15004066) usually ships 8-21 days
19 183-2549 Screw M6 x 35mm $1.35 2 usually ships 8-21 days
20 183-8334 Washer $1.35 2 usually ships 8-21 days
22a 183-2560 Battery compartment $384.81 1 (from SN 13000557 - SN 13001851) usually ships 8-21 days
22b 183-2550 Battery compartment $411.16 1 (from SN 11000112 - SN 15004066) usually ships 8-21 days
23 183-8254 Screw M6 x 16 $1.35 4 usually ships 8-21 days
24 183-2561 Screw M10 x 30mm $5.82 2 usually ships 8-21 days
25 183-8378 Nut $1.35 2 usually ships 8-21 days
26 183-8382 Washer $1.35 1 usually ships 8-21 days
27 183-8292 Screw M6 x 20 $1.35 1 usually ships 8-21 days
28 183-2562 Wheel pin $49.09 2 usually ships 8-21 days
29a 183-4718 Wheel $103.17 2 (from SN 13000557 - SN 13001851) usually ships 8-21 days
29b 183-2555 Wheel M250 x 50mm $107.17 2 (from SN 13001852 - SN 15004066) usually ships 8-21 days
31 183-2563 Screw M8 x 20mm $1.69 2 usually ships 8-21 days
33 183-2554 Adhesive plastic cap (OBSOLETE) Call for price 2 usually ships 8-21 days
34 183-2553 Handwheel $4.35 1 usually ships 8-21 days
35 183-8271 Nut INOX $1.35 1 usually ships 8-21 days
36 183-8334 Washer $1.35 4 usually ships 8-21 days
38 183-2564 Plug protection $3.50 1 usually ships 8-21 days
39 183-2565 Screw M2.9 x 9.5mm $1.35 2 usually ships 8-21 days
