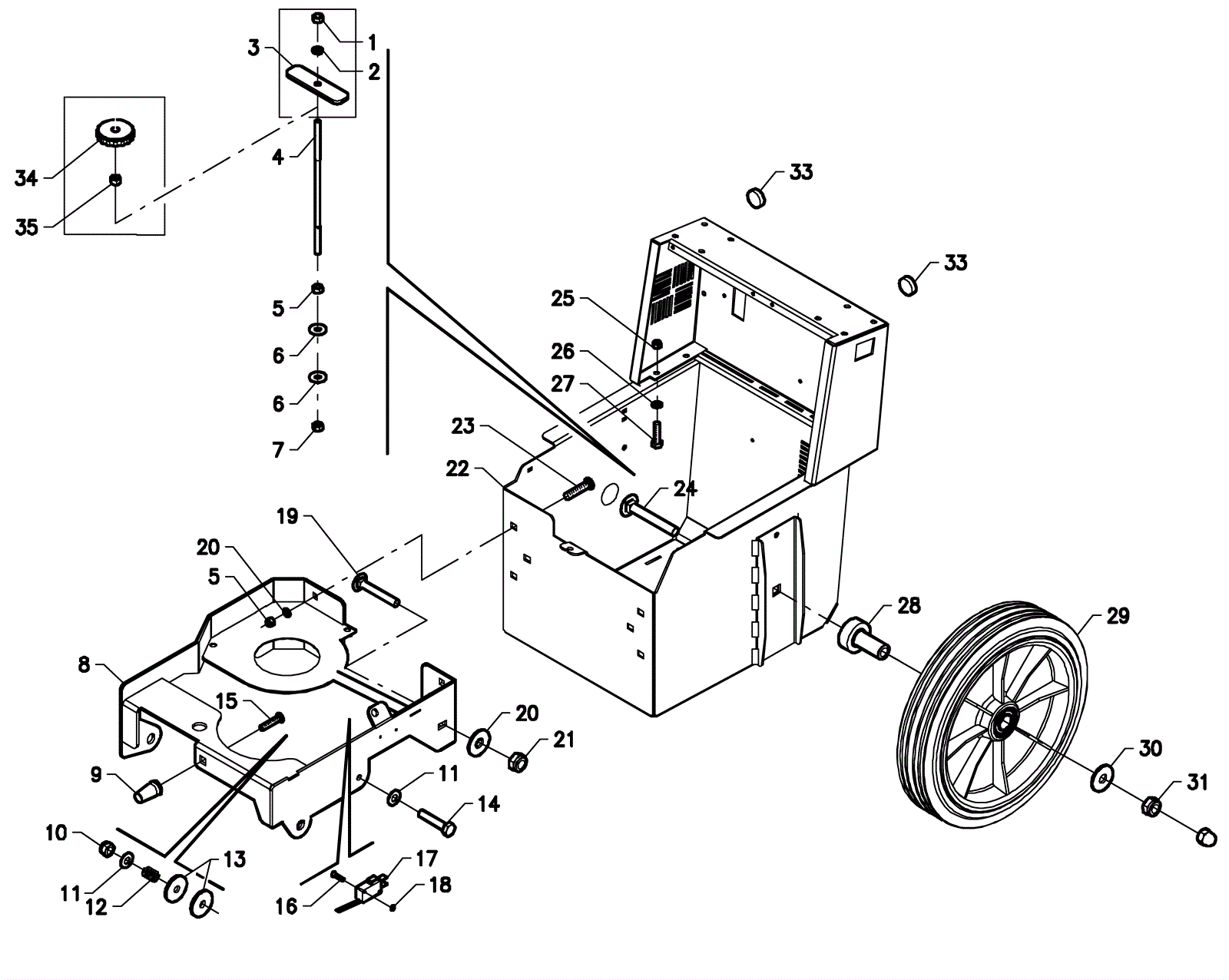

BD 14/4 Frame Assembly Before SN 11000112

#PartDescriptionPriceReqNotesAvailability
1 183-8394 Nut $1.35 1 usually ships 8-21 days
2 183-2539 Lock washer $1.35 1 usually ships 8-21 days
3 183-2540 Plate $6.52 1 usually ships 8-21 days
4 183-2541 Tie Rod $10.95 1 usually ships 8-21 days
8 183-2542 Front frame (OBSOLETE) $250.51 1 usually ships 8-21 days
9 183-2543 Tank pin $17.13 1 usually ships 8-21 days
11 183-8307 Washer $5.17 2 usually ships 8-21 days
12 183-2544 Compression spring $4.00 1 usually ships 8-21 days
13 183-2545 Washer $2.04 2 usually ships 8-21 days
14 183-2546 Screw M8 x 35mm $1.35 1 usually ships 8-21 days
15 183-2547 Screw M8 x 20mm $1.49 1 usually ships 8-21 days
16 183-8350 Screw $1.35 1 usually ships 8-21 days
17 183-8210 16amp Switch $10.98 1 usually ships 8-21 days
18 183-2548 Washer $1.30 1 usually ships 8-21 days
19 183-2549 Screw M6 x 35mm $1.35 2 usually ships 8-21 days
20 183-8334 Washer $1.35 2 usually ships 8-21 days
22 183-2550 Battery compartment $411.16 1 usually ships 8-21 days
23 183-8254 Screw M6 x 16 $1.35 4 usually ships 8-21 days
24 183-2551 Screw M10 x 70mm $5.74 2 usually ships 8-21 days
25 183-8378 Nut $1.35 2 usually ships 8-21 days
26 183-8382 Washer $1.35 1 usually ships 8-21 days
27 183-8292 Screw M6 x 20 $1.35 1 usually ships 8-21 days
28 183-2562 Wheel pin $49.09 2 usually ships 8-21 days
29 183-4718 Wheel $103.17 2 usually ships 8-21 days
30 183-2504 Washer $1.35 2 usually ships 8-21 days
31 183-8424 Nut $1.35 2 usually ships 8-21 days
33 183-2554 Adhesive plastic cap (OBSOLETE) Call for price 2 usually ships 8-21 days
34 183-2553 Handwheel $4.35 1 (from SN 10003032 - 11000111) usually ships 8-21 days
35 183-8271 Nut INOX $1.35 1 (from SN 10003032 - 11000111) usually ships 8-21 days
