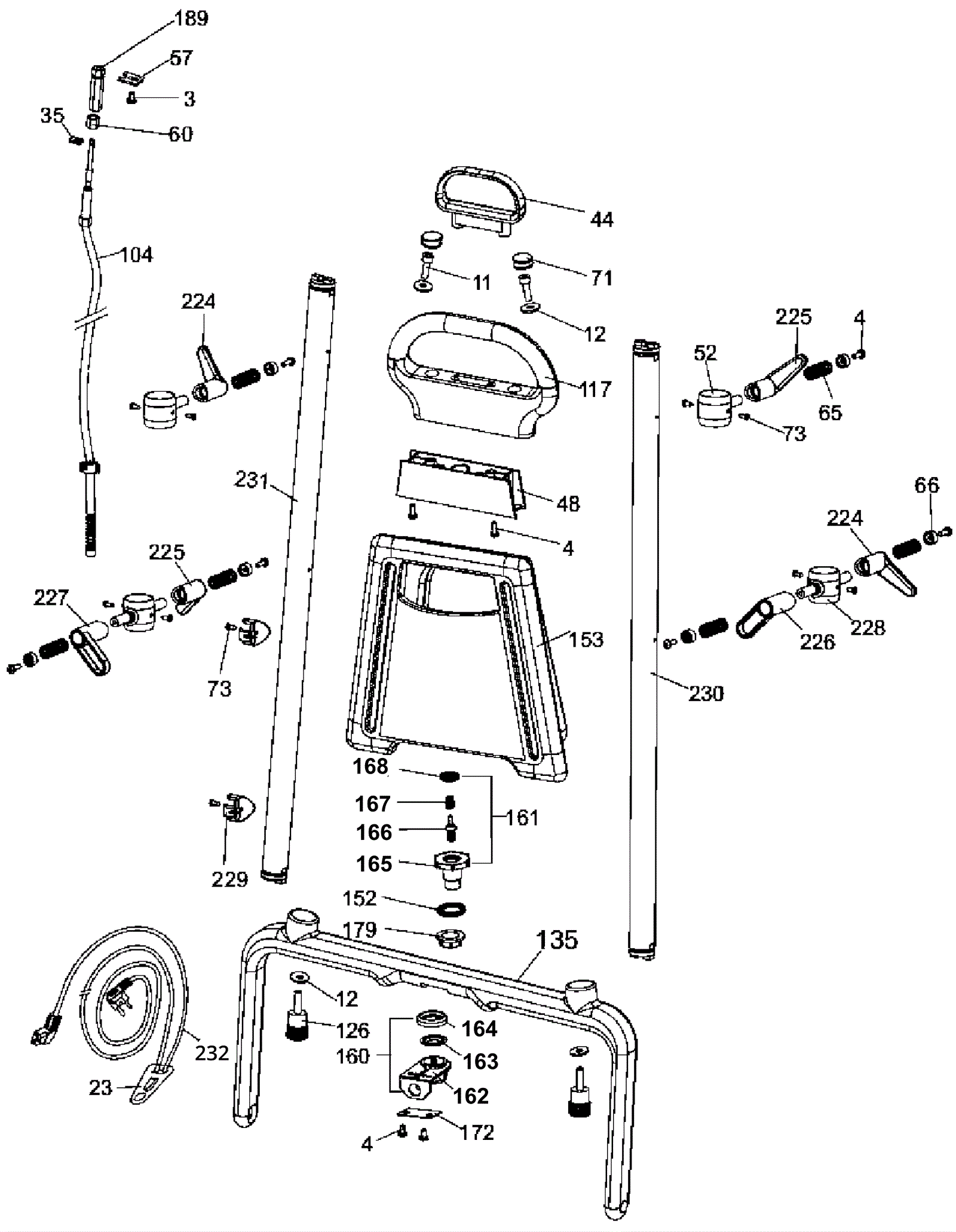

BR 13/1 MW Handle Assembly

#PartDescriptionPriceReqNotesAvailability
3 190-1617 Screw M4 x 8mm $1.35 1 ships same day
4 190-1581 Screw M4 x 12mm $1.35 10 usually ships 10-27 days
11 190-1508 Screw M6 x 20mm $2.24 2 usually ships 10-27 days
12 190-1618 Washer $1.35 4 usually ships 10-27 days
23 190-1619 Cable restraint $3.03 1 usually ships 10-27 days
35 190-1620 Clamp $1.35 1 ships same day
44 190-1621 Pull handle $5.50 1 usually ships 10-27 days
48 190-1622 Cap $3.52 1 ships same day
52 190-1623 Base cable holder $6.04 2 usually ships 10-27 days
57 190-1624 Clamp $1.35 1 usually ships 10-27 days
60 190-1625 Nut $1.55 1 ships same day
65 190-1626 Spring $1.35 6 usually ships 10-27 days
66 190-1627 Washer $1.35 6 usually ships 10-27 days
71 190-1628 Plug $1.35 2 usually ships 10-27 days
73 190-1525 Self tapping screw $1.35 10 usually ships 10-27 days
104 183-2308 Pull cable $65.68 1 ships same day
117 190-1629 Top handle $138.17 1 usually ships 10-27 days
126 190-1460 Threaded knob $5.49 2 usually ships 10-27 days
135 190-1630 Bottom handle $182.37 1 usually ships 10-27 days
152 190-0580 Gasket $1.35 1 usually ships 10-27 days
153 190-1631 Tank $322.11 1 usually ships 10-27 days
160 183-4771 Base valve assembly $6.68 1 (includes 162 - 164) ships same day
161 190-1636 Complete valve $11.06 1 (includes 165 - 168) ships same day
162 190-1633 Base $3.63 1 usually ships 10-27 days
163 190-1634 Seal (OBSOLETE) $1.83 1 usually ships 10-27 days
164 190-1635 Valve cap $1.30 1 usually ships 10-27 days
165 190-1637 Valve body $1.83 1 usually ships 10-27 days
166 190-1638 Seal $2.67 1 usually ships 10-27 days
167 190-1639 Spring $1.35 1 usually ships 10-27 days
168 190-1640 Spring cap $1.35 1 usually ships 10-27 days
172 190-1641 Plate $3.92 1 usually ships 10-27 days
179 190-1642 Nut $1.35 1 usually ships 10-27 days
189 190-1643 Sleeve $5.28 1 ships same day
224 190-1644 Cable holder knob $3.07 2 usually ships 10-27 days
225 190-1645 Cable holder knob $3.07 2 usually ships 10-27 days
226 190-1646 Left hand tank holder knob $3.45 1 usually ships 10-27 days
227 190-1647 Right hand tank holder knob $3.45 1 usually ships 10-27 days
228 190-1648 Cable and tank holder base $6.11 2 usually ships 10-27 days
229 190-1649 Guide $1.61 2 usually ships 10-27 days
230 190-1650 Left hand pipe $32.21 1 usually ships 10-27 days
231 190-1651 Right hand pipe $35.18 1 usually ships 10-27 days
232 183-8173 40 foot power cord (yellow) $236.86 1 usually ships 8-21 days
