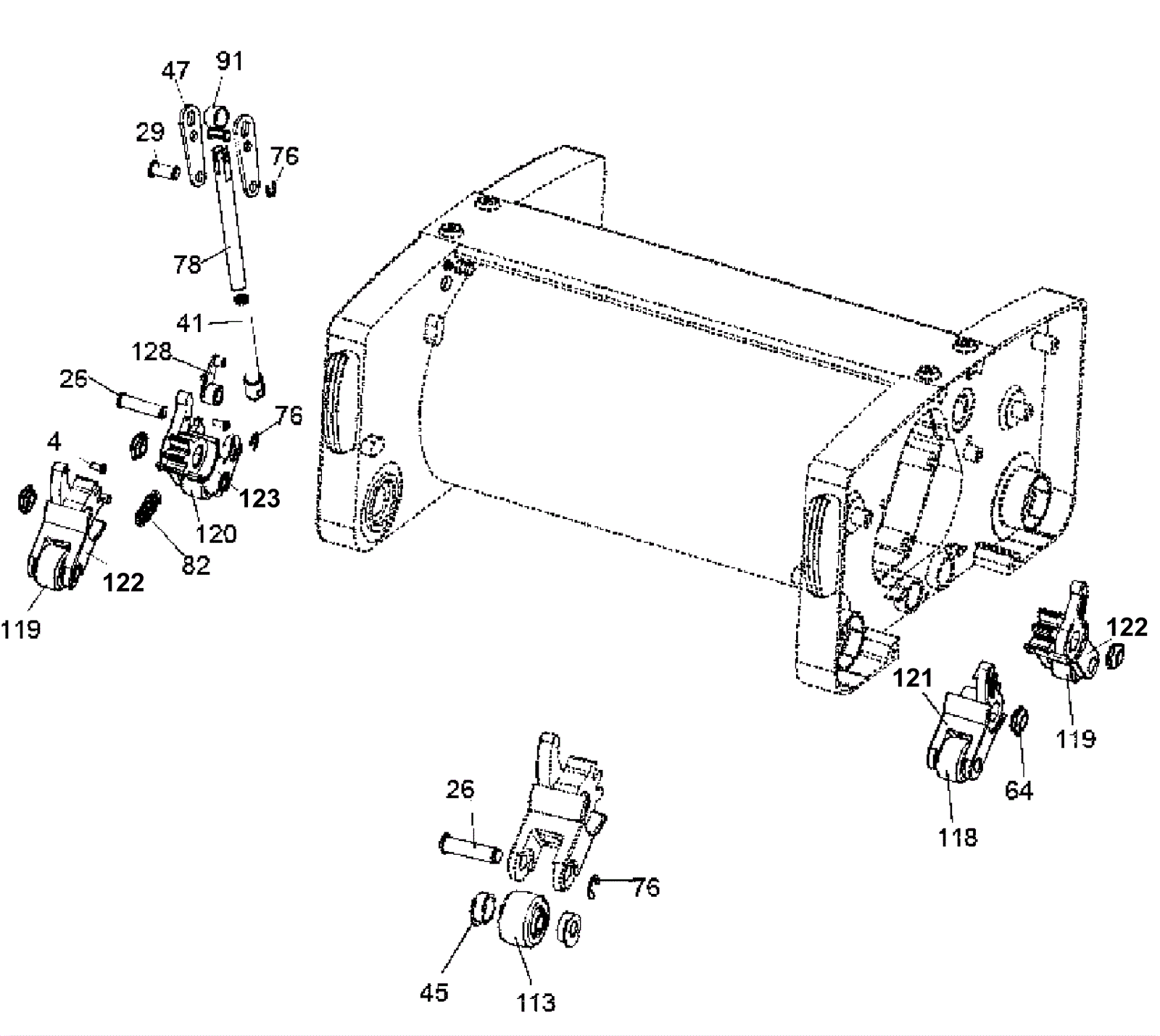

BR 13/1 MW Lever and Guide Link Mechanism

#PartDescriptionPriceReqNotesAvailability
4 190-1581 Screw M4 x 12mm $1.35 2 usually ships 10-27 days
26 190-1582 Clevis Pin $19.37 5 usually ships 10-27 days
29 190-1583 Clevis pin $3.39 1 usually ships 10-27 days
41 190-1584 Link $10.66 1 usually ships 10-27 days
45 190-1585 Shield $1.35 8 usually ships 10-27 days
47 190-1586 Lever $5.50 2 usually ships 10-27 days
64 190-1587 Lever button $1.35 4 usually ships 10-27 days
76 190-1588 Circlip $1.35 6 usually ships 10-27 days
78 190-1589 Guide link $13.12 1 usually ships 10-27 days
82 190-1590 Spring $2.70 1 usually ships 10-27 days
91 190-1591 Bushing $1.35 1 usually ships 10-27 days
113 190-1592 Wheel $4.91 4 ships same day
118 190-1593 Lever assembly $24.44 1 (includes 121) usually ships 10-27 days
119 190-1595 Lever assembly $22.41 2 (includes 122) usually ships 10-27 days
120 190-1597 Lever assembly $38.48 1 (includes 123) usually ships 10-27 days
121 190-1594 Lever $5.95 1 usually ships 10-27 days
122 190-1596 Lever $13.96 2 usually ships 10-27 days
123 190-1598 Lever $7.46 1 usually ships 10-27 days
128 190-1599 Lever switch $5.91 1 usually ships 10-27 days
