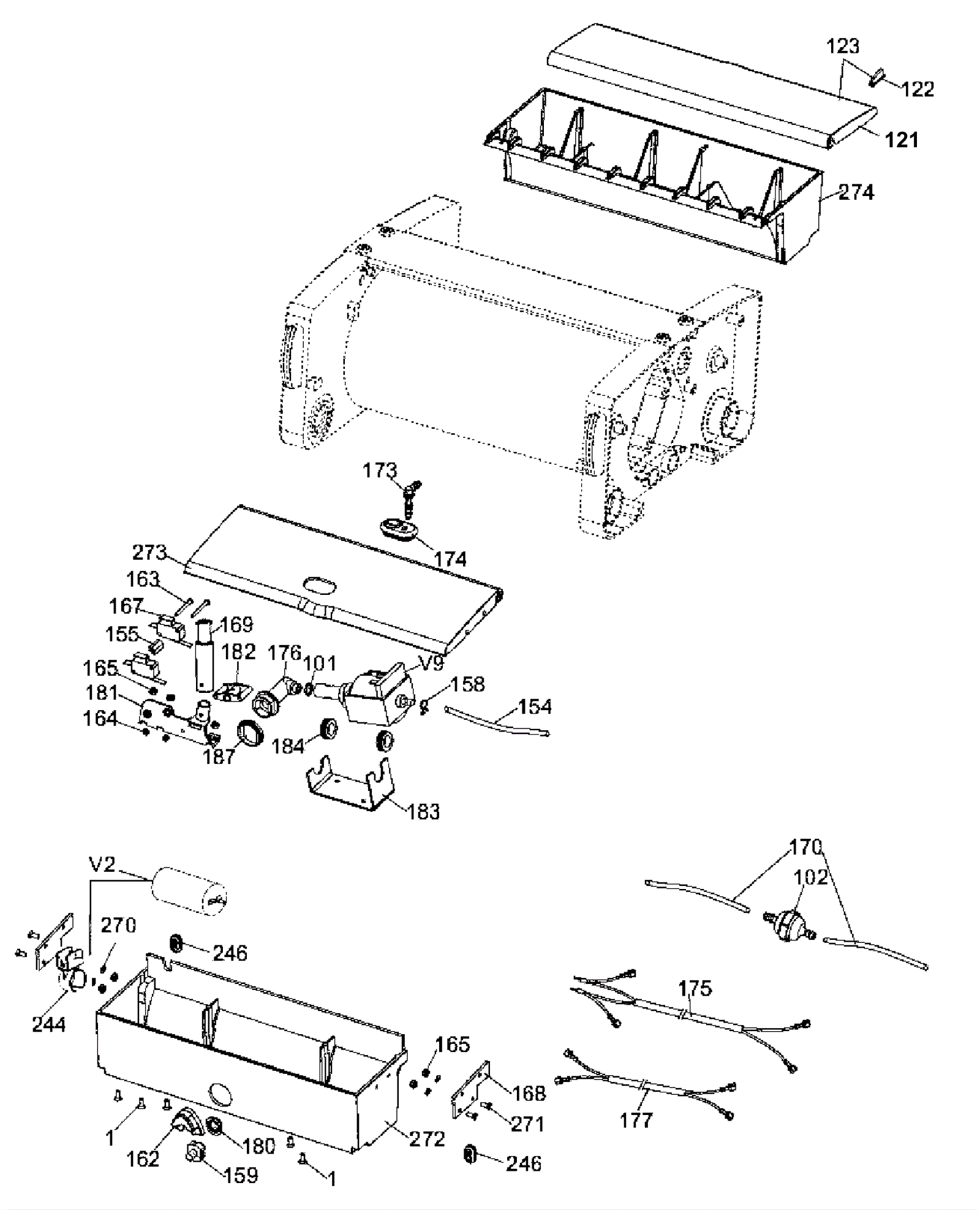

BR 13/1 MW Pump Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 190-1503 Screw M4 x 10mm $2.63 5 usually ships 14-18 days
101 183-8708 O-ring $2.63 1 usually ships 14-19 days
102 190-1601 Filter $12.09 1 ships same day
121 190-1605 Dirty water tank lid $53.89 1 usually ships 14-18 days
122 190-1603 Lid pad $3.95 2 usually ships 14-18 days
123 190-1604 Dirty water tank lid assembly $69.29 1 (includes 121, 122) usually ships 14-18 days
154 190-1606 Hose $5.27 1 usually ships 14-18 days
155 183-8709 Insulation (OBSOLETE) Call for price 1 usually ships 14-19 days
158 183-8724 Hose clip $1.31 1 usually ships 14-19 days
159 183-4722 Nozzle $156.19 1 usually ships 14-19 days
162 183-4740 Boot $6.59 1 usually ships 14-19 days
163 183-8725 Screw M3 x 30mm $2.63 2 usually ships 14-19 days
164 183-8726 Nut (OBSOLETE) Call for price 2 usually ships 14-19 days
165 190-1607 Nut $2.63 3 usually ships 14-18 days
167 183-8710 Switch $30.79 2 usually ships 14-19 days
168 190-1608 Lid strip $8.79 2 usually ships 14-18 days
169 183-8711 Extension $3.95 1 usually ships 14-19 days
170 190-1609 Hose $3.95 2 ships same day
173 190-0582 Hose connector $1.31 1 ships same day
174 190-1610 Lid boot $3.95 1 ships same day
175 183-8712 Cable $21.99 1 usually ships 14-19 days
176 183-8713 Adaptor nozzle $9.89 1 usually ships 14-19 days
177 183-8727 Cable $10.99 1 usually ships 14-19 days
180 183-8713 Adaptor nozzle $9.89 1 usually ships 14-19 days
181 183-8714 Switch base $5.27 1 usually ships 14-19 days
182 183-8715 Lever $2.63 1 usually ships 14-19 days
183 183-8716 Clamp $9.59 1 usually ships 14-19 days
184 183-8717 Support ring (OBSOLETE) $3.48 2 usually ships 14-19 days
187 183-8718 Spacer $2.63 1 usually ships 14-19 days
244 183-8719 Capacitor clamp $4.58 1 usually ships 14-19 days
246 183-8720 Gromet $4.18 2 usually ships 14-19 days
270 183-8721 Washer $1.54 4 usually ships 14-19 days
271 190-1613 Screw M4 x 15mm $1.54 4 usually ships 14-18 days
272 183-8722 Pump housing (yellow) $98.99 1 usually ships 14-19 days
273 183-2265 Pump housing lid (yellow) $43.00 1 usually ships 14-19 days
274 183-8723 Dirty water tank $133.28 1 usually ships 14-19 days
