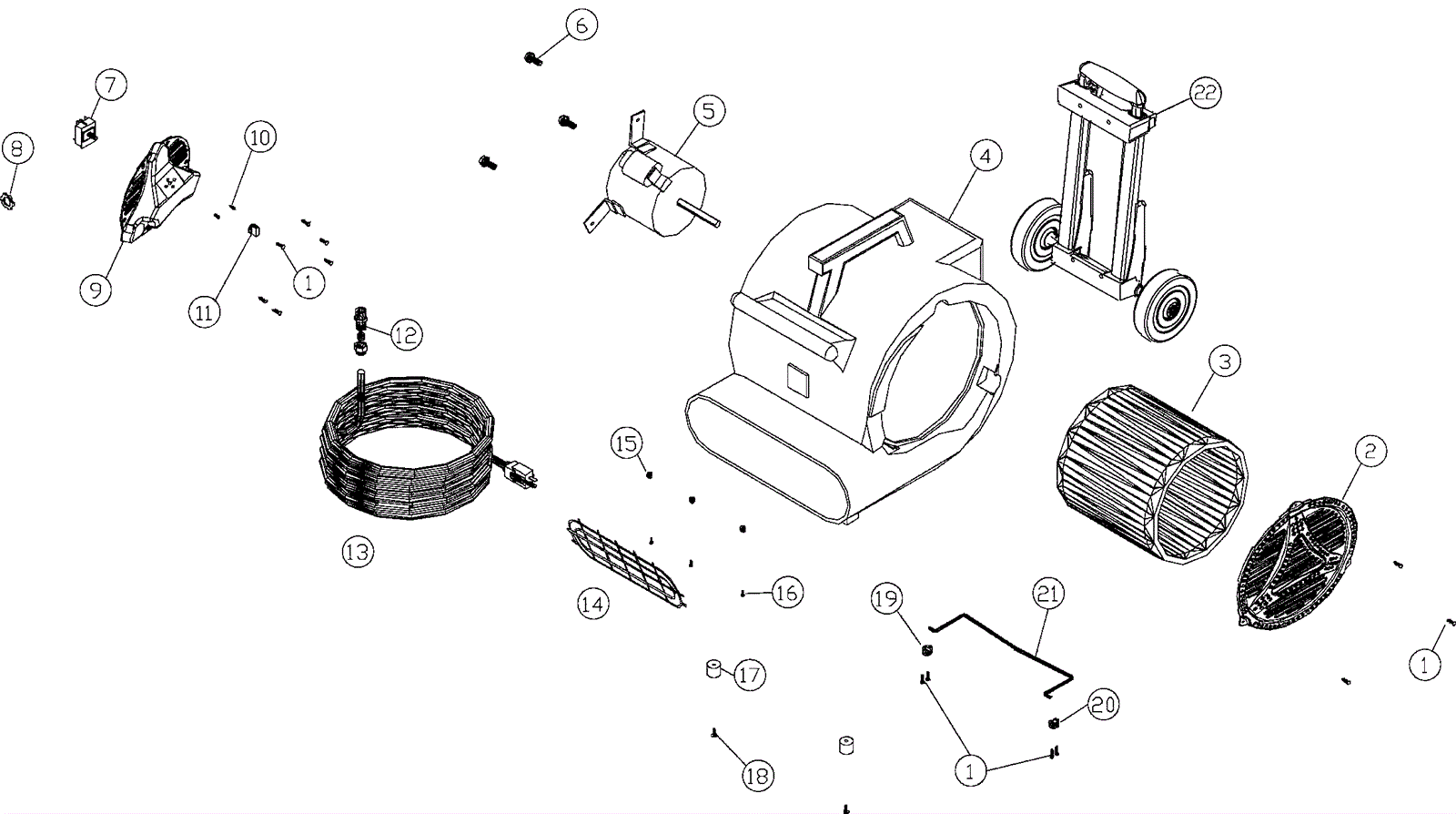

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0680
|
Screw 6 x 1/2 pan head phillips T-A sheet metal |
1 |
|
|
2 |
190-0561
|
Intake panel |
1 |
|
|
3a |
190-0237
|
Squirrel cage with lock nut |
1 |
(1/3 and 1/2 HP models) |
|
3b |
190-0029
|
Squirrel cage with lock nut (OBSOLETE) |
1 |
(3/4 HP models) |
|
4 |
190-0250
|
Dryer housing (OBSOLETE) |
1 |
|
|
5a |
190-0251
|
1/3HP dryer motor and capacitor |
1 |
|
|
5b |
190-0252
|
1/2HP dryer motor and capacitor (OBSOLETE) |
1 |
|
|
6 |
190-0254
|
Screw 3/8-16 x 1/2 |
1 |
|
|
7 |
183-7483
|
3 speed rotary switch |
1 |
|
|
8 |
216-0181
|
Nut 1/2 lock steel conduit |
1 |
|
|
9 |
190-0257
|
Motor control panel |
1 |
|
|
10 |
999-1538
|
Screw M4-.7 x 6mm flat head phillips |
1 |
|
|
11 |
190-0258
|
Switch knob |
1 |
|
|
12 |
216-0173
|
Strain relief |
1 |
|
|
13 |
183-0563
|
16/3 power cord 20 foot |
1 |
|
|
14 |
190-0259
|
Grill |
1 |
|
|
15 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
1 |
|
|
16 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
1 |
|
|
17 |
190-0030
|
Rubber foot (black) (new style) |
1 |
|
|
18 |
999-0697
|
Screw 8-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
19 |
190-0260
|
Right side foot |
1 |
|
|
20 |
190-0261
|
Left side foot |
1 |
|
|
21 |
190-0262
|
Kickstand |
1 |
|
|
22 |
190-0263
|
Handle and wheels |
1 |
|
|
