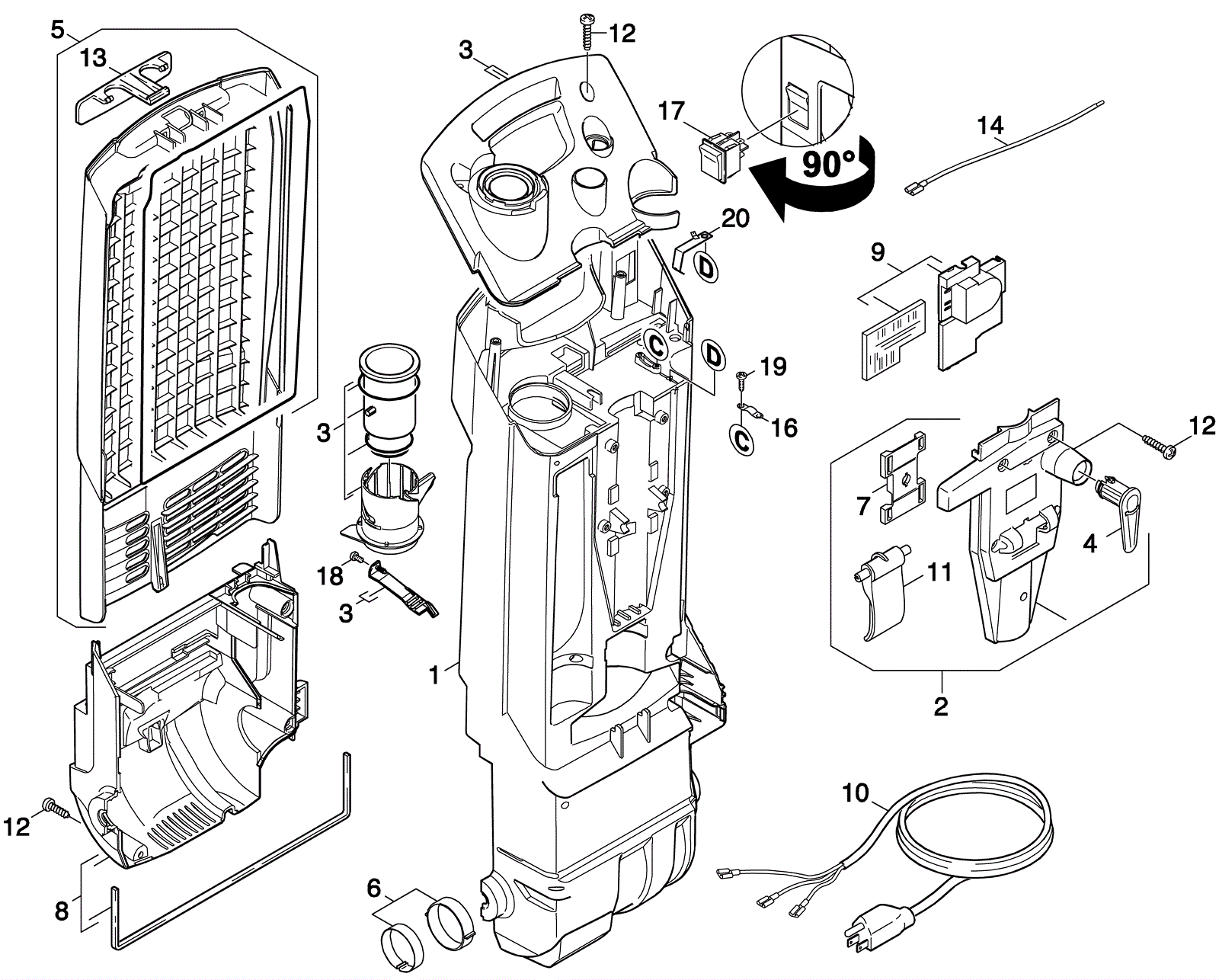

CV 38 HEPA Upper Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8123 Housing $146.74 1 usually ships 8-21 days
2 183-8124 Back cover assembly $35.72 1 (includes 4, 7, 11 and 12) usually ships 1-5 days
3a 183-8125 Top cover $62.79 1 usually ships 8-21 days
3b 183-4780 Lever and tube assembly $5.50 1 usually ships 8-21 days
4 183-2129 Lower cord catch $6.61 1 usually ships 8-21 days
5 183-9015 Cover $74.47 1 (includes 13) ships same day
6 183-8126 Bearing shell $9.19 1 usually ships 8-21 days
7 183-8127 Clamp $5.64 1 usually ships 8-21 days
8 183-8128 Motor cover $31.06 1 usually ships 1-5 days
9 183-8129 Circuit board $105.07 1 usually ships 8-21 days
10 183-9014 40 foot power cord $52.00 1 ships same day
11 183-8130 Lever $6.01 1 usually ships 1-5 days
12 183-8116 Screw 5 x 20 $0.99 9 ships same day
13 183-8131 Cover lock $4.35 1 usually ships 8-21 days
14 183-8132 Electrical cable $14.55 1 ships same day
16 183-2085 Clamp clip $4.81 1 ships same day
17 183-2526 Rocker switch $10.69 1 ships same day
18 273-0966 Screw M4-10.9 x 12mm round head $2.73 1 usually ships 7-19 days
19 183-0923 Screw 3.5 x 12 $1.35 2 usually ships 8-21 days
20 183-8134 Spring $15.00 1 usually ships 8-21 days
