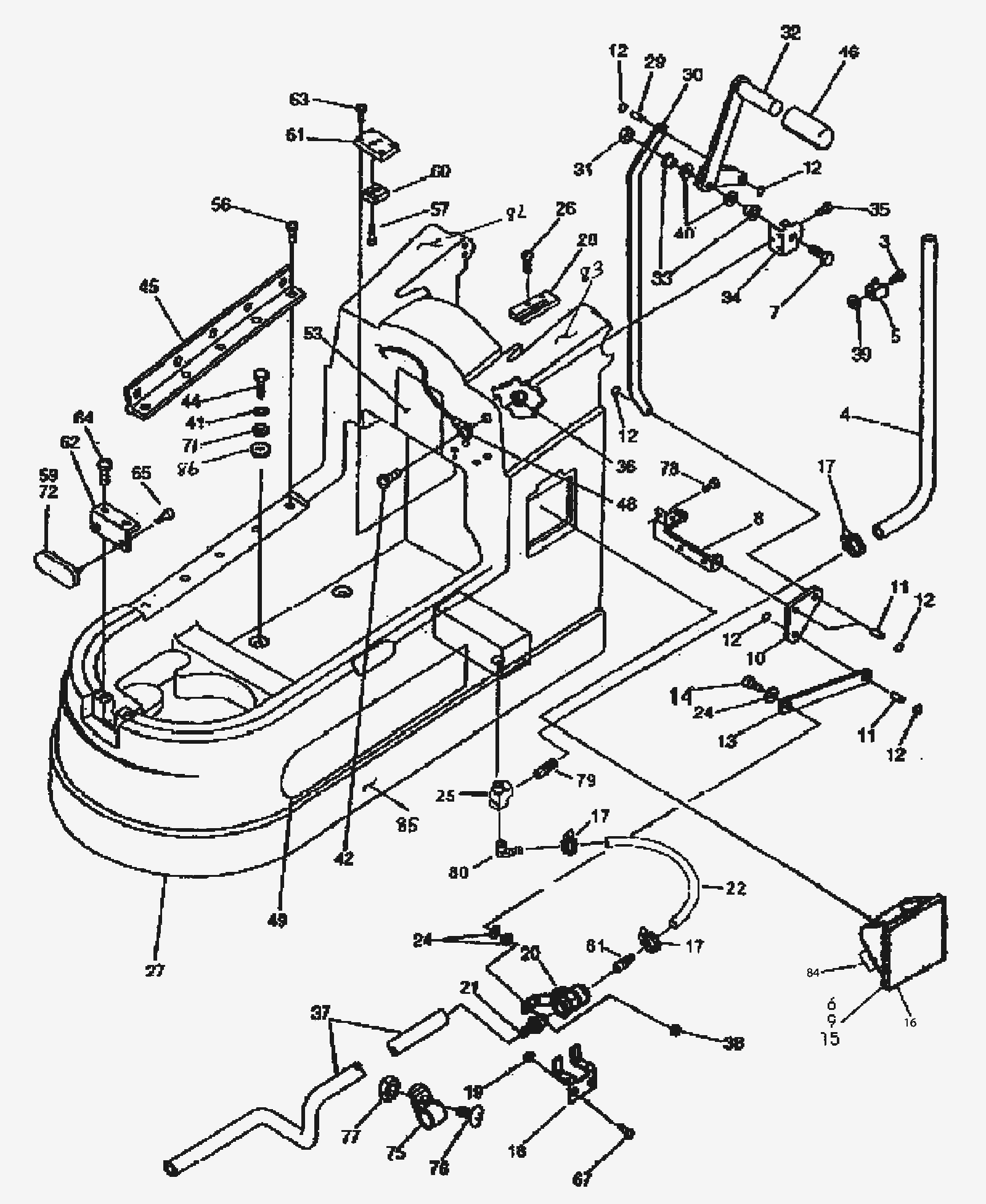

Solution Tank Assembly

#PartDescription ReqNotesAvailability
3 999-0385 Screw 8-32 x 1/2 round head slotted zinc plated
4 183-9018 Solution tank hose
5 183-0512 Clip
6 183-1289 Rivet
7 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated
8 183-0805 Solution control bracket
9 999-0998 Washer #10 flat stainless steel
10 183-0806 Solution control plate
11 183-0807 Pin
12 183-0808 Retaining ring 3/8
13 183-0809 Lower link bar
14 183-0702 Screw 3/8-16 x 3/8 socket head shoulder
15 183-1291 Weight
16a 183-1292 Solution fill cover
16b 183-0810 Fill door
17 216-0075 Hose clamp
18 183-0812 Solution valve clamp bracket
19 183-0641 Nut 1/4-20 hex lock
20 183-0953 Ball valve
21 183-0814 Fitting
22 183-1293 Hose 1/2 x 13 inch (clear)
24 999-0032 Washer 3/8 USS flat plain finish
25 183-1294 Brass run tee fitting
26 183-0595 Screw 8-16 x 3/4 pan head thread forming
27 183-1295 Solution tank with opening (OBSOLETE)
29 183-0818 Pin
30 183-0819 Upper link bar
31 999-0247 Nut 3/8-16 hex jam plain finish
32 183-0820 Solution control handle weldment
33 183-0716 Flanged bearing 3/8 bronze
34 183-0821 Handle pivot bracket
35 183-0822 Screw #13-9 x 3/4 fillister head
36 999-1068 Nut 10-24 hex reversible lock zinc plated
37 183-0824 Solution tube
38 999-0069 Nut 5/16-18 hex
39 999-0051 Washer #6 medium split lock
40 183-2119 Washer
41 999-0553 Washer 5/16 medium split lock stainless steel
42 999-0820 Screw 10-24 x 7/8 truss head phillips zinc plated
44 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel
45 183-0826 Hinge
46 183-4316 Handle grip
48 183-0588 Cable assembly
49 183-0829 Logo decal
53 183-0830 Battery maintenance decal
56 999-1172 Screw 1/4-20 x 1/2 truss head phillips zinc
57 999-1175 Screw 6-32 x 7/8 flat head phillips stainless steel
59 999-1068 Nut 10-24 hex reversible lock zinc plated
60a 183-0834 Charger connector (OBSOLETE)
60b 183-8459 Connector
61 183-0835 Connector mounting plate
62 183-0836 Light mounting bracket
63 183-0595 Screw 8-16 x 3/4 pan head thread forming
64 999-0267 Screw 10-24 x 1/2 pan head phillips zinc
65 999-0267 Screw 10-24 x 1/2 pan head phillips zinc
67 999-1173 Screw 1/4-20 x 5/8 round head phillips zinc plated
71 999-0120 Washer 3/8 SAE flat
72 183-0838 Warning light assembly kit
75 183-0840 Cable clamp 5/8
76 999-0267 Screw 10-24 x 1/2 pan head phillips zinc
77 999-1068 Nut 10-24 hex reversible lock zinc plated
78 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel
79 183-1297 Brass fitting adapter
80a 183-1298 Brass elbow fitting
80b 183-1299 Elbow 1/2 x 3/8 inch mpt
81 183-1300 Brass fitting adapter
82 183-1301 Decal
83 183-1302 Decal
84 183-1303 Solution fill cover plate
85 183-1304 Decal
86 183-1305 Washer 1/4 inch plain
N/S 183-0817 Control handle stop plate 1
N/S 183-0828 Access panel 1
N/S 183-0831 Identification decal 1
N/S 183-0832 Level gauge decal 1
