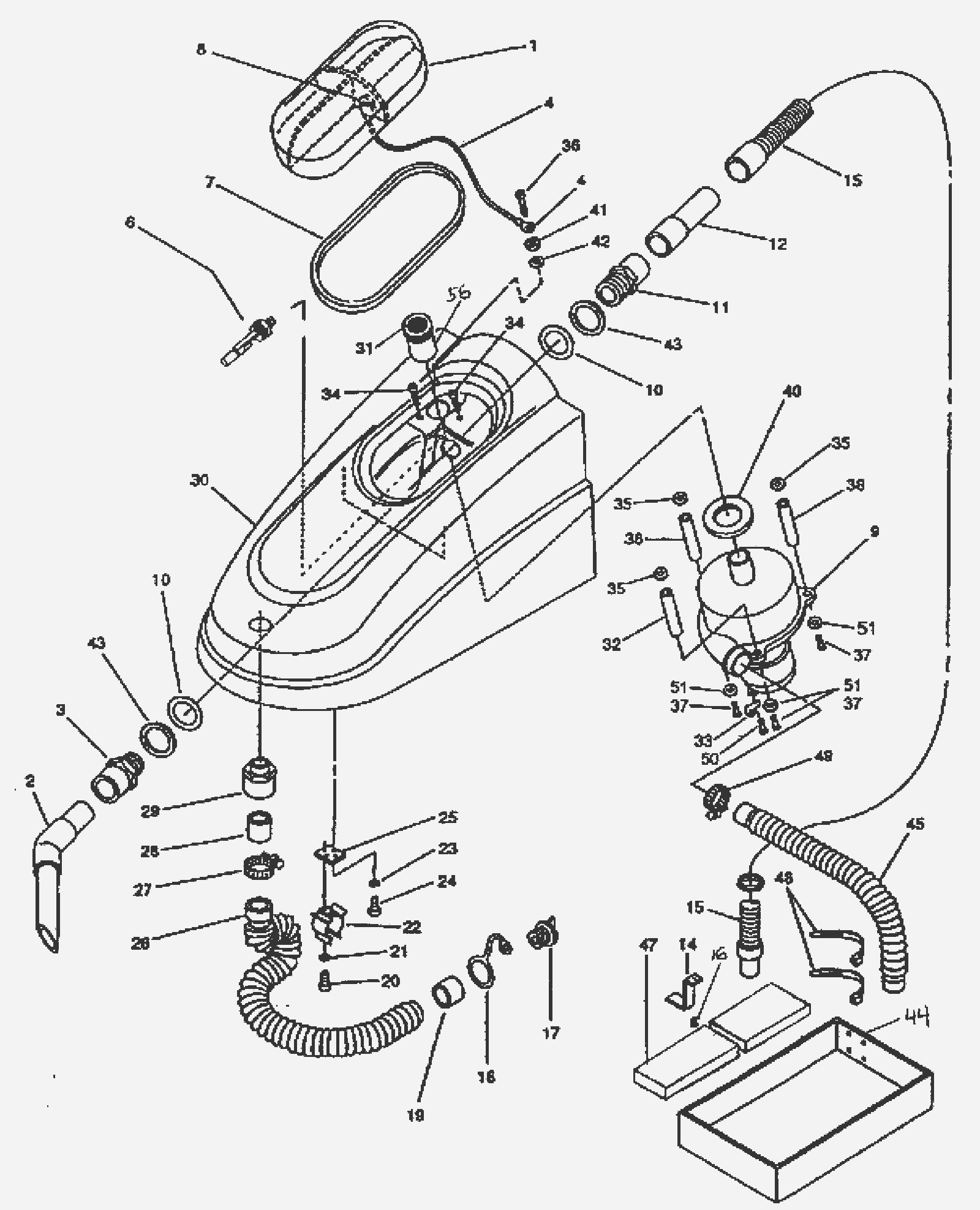

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-7539
|
Recovery tank lid (OBSOLETE) |
1 |
|
|
2 |
183-7445
|
Intake deflector |
1 |
|
|
3a |
190-1172
|
Adapter |
1 |
|
|
3b |
183-1264
|
Bulkhead fitting |
1 |
|
|
4 |
183-2251
|
Cable assembly |
1 |
|
|
6 |
183-1265
|
Float switch with terminals |
1 |
|
|
7 |
183-0509
|
Gasket (OBSOLETE) |
1 |
|
|
8 |
183-1266
|
Cover cable clasp |
1 |
|
|
9 |
183-1267
|
Vacuum motor bypass |
1 |
|
|
10 |
183-4283
|
Gasket |
2 |
|
|
11a |
216-0069
|
Coupler |
1 |
|
|
11b |
183-1268
|
Plastic coupler |
1 |
|
|
12 |
183-1269
|
Hose cuff adapter sleeve |
1 |
|
|
14 |
183-1270
|
Squeegee hose bracket |
1 |
|
|
15 |
183-0026
|
Vacuum hose |
1 |
|
|
16 |
183-0595
|
Screw 8-16 x 3/4 pan head thread forming |
2 |
|
|
17 |
183-0017
|
Drain plug |
1 |
|
|
18 |
183-0540
|
Drain plug strap |
1 |
|
|
19 |
183-0539
|
Recovery drain hose sleeve |
1 |
|
|
20 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
6 |
|
|
21 |
999-0051
|
Washer #6 medium split lock |
6 |
|
|
22 |
183-0018
|
Drain hose support clip |
3 |
|
|
23 |
183-1271
|
Washer #10 lock |
6 |
|
|
24 |
183-1272
|
Screw flat head phillips |
6 |
|
|
25 |
183-1273
|
Retaining clip plate |
3 |
|
|
26 |
183-7394
|
Drain hose |
1 |
|
|
27 |
183-0544
|
Hose clamp |
1 |
|
|
28 |
183-1274
|
Sleeve |
1 |
|
|
29 |
183-1275
|
Fitting |
1 |
|
|
30 |
183-1276
|
Recovery tank |
1 |
|
|
31 |
183-7446
|
Intake filter assembly |
1 |
|
|
32 |
183-1277
|
Spacer |
1 |
|
|
33 |
183-1278
|
Cable clamp |
1 |
|
|
34 |
183-1279
|
Screw flat head cap |
2 |
|
|
35a |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
35b |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
36 |
999-0298
|
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
1 |
|
|
37 |
183-1280
|
Screw pan head phillips |
3 |
|
|
38 |
183-1281
|
Spacer |
2 |
|
|
40 |
183-1282
|
Vacuum motor gasket |
1 |
|
|
41a |
999-1098
|
Nut 1/4-20 finished hex stainless steel |
1 |
|
|
41b |
999-1098
|
Nut 1/4-20 finished hex stainless steel |
1 |
|
|
42 |
183-8146
|
Washer 1/4 plain |
1 |
|
|
43 |
183-4291
|
Washer 2 inch ID plain stainless steel |
2 |
|
|
44a |
183-1283
|
Battery tray |
1 |
|
|
44b |
183-4355
|
Battery tray |
1 |
|
|
45 |
183-4248
|
2 x 36 Inch steel supported black hose without cuffs |
1 |
|
|
47 |
183-1284
|
Battery stop wood block |
2 |
|
|
48 |
183-0665
|
15 inch black wire tie |
2 |
|
|
49 |
183-4243
|
Hose clamp |
1 |
|
|
50 |
183-1285
|
Screw TCT pan head |
1 |
|
|
51 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
56 |
183-1288
|
Vacuum motor stand pipe |
1 |
|
|
N/S |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
N/S |
190-9898
|
24V 21amp battery charger |
1 |
|
|
N/S |
183-0790
|
10 inch battery jumper cable |
2 |
|
|
