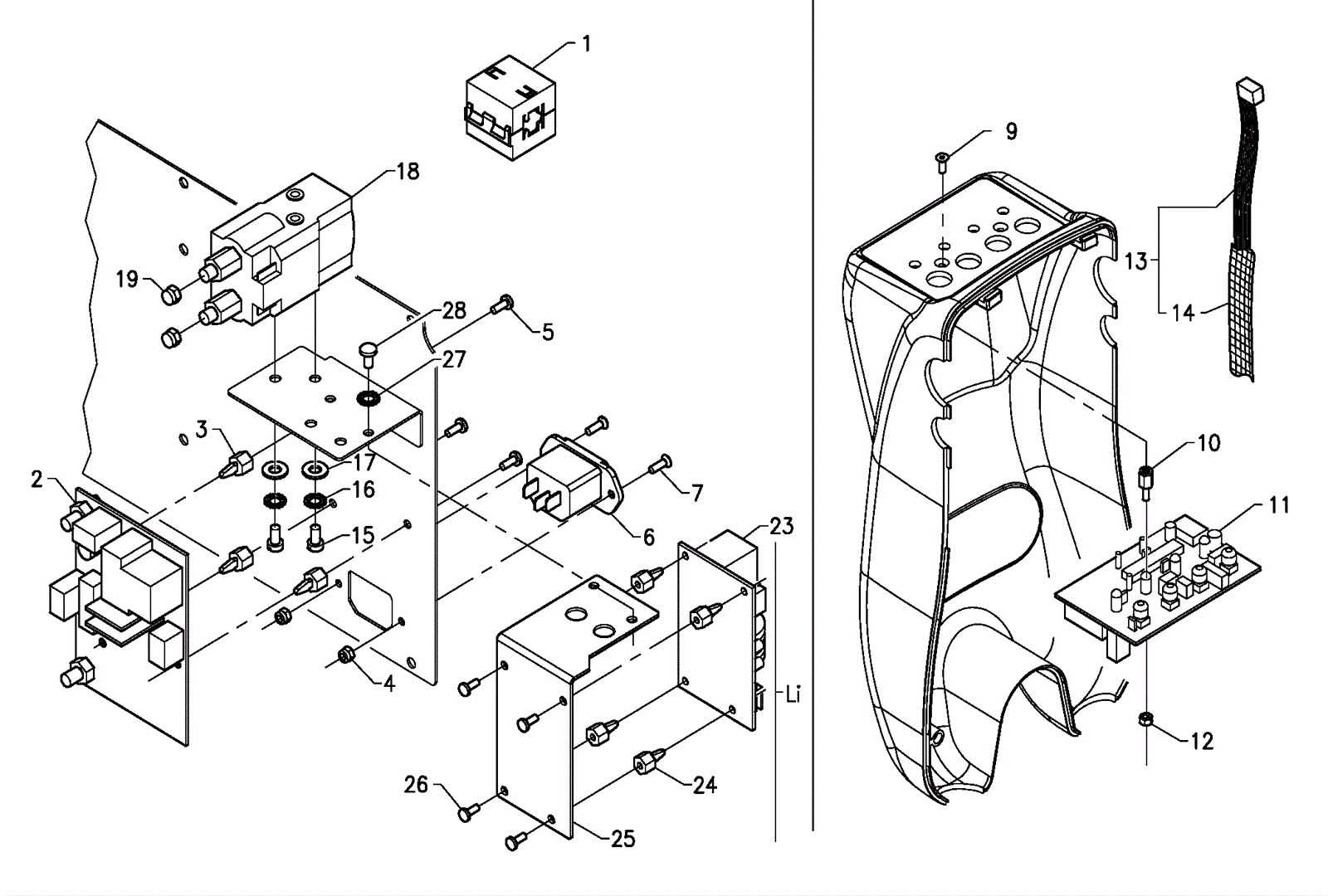

BD 17/6 Electrical Layout From SN 18003398

#PartDescriptionPriceReqNotesAvailability
1 183-2694 Ferrite with quick coupling $13.81 1 usually ships 15-28 days
2 183-2338 Relay check card $222.35 1 ships same day
3 183-2693 Plastic coupler pin $2.90 3 usually ships 15-28 days
4 183-8357 Nut $1.35 2 usually ships 15-28 days
5 183-2691 Screw M3.5 x 6.5mm $1.35 3 usually ships 15-28 days
6 183-3252 Main plug $4.94 1 ships same day
7 183-2459 Screw M3 x 10mm $1.35 2 usually ships 15-28 days
9 183-8506 Screw $1.35 2 usually ships 15-28 days
10 183-2690 Hexagonal spacer $3.45 2 usually ships 15-28 days
11 183-0980 Control check card $221.29 1 usually ships 15-28 days
12 183-8386 Nylon nut $1.35 2 usually ships 15-28 days
13 183-2268 Cable and sheath $32.89 1 (includes 14) usually ships 15-28 days
14 183-2269 Sheath $3.27 1 usually ships 1-5 days
15 183-8364 Screw M4 x 8 $1.53 2 usually ships 15-28 days
16 183-8365 Washer $1.35 2 usually ships 15-28 days
17 183-2665 Washer $1.35 2 usually ships 15-28 days
18 183-8367 80amp Remote control switch $101.51 1 usually ships 15-28 days
19 183-2646 Nut cover (OBSOLETE) $1.30 2 usually ships 15-28 days
23 183-3255 Brush motor relay check card Call for price 1 (LI ONLY) usually ships 15-28 days
24 183-2693 Plastic coupler pin $2.90 4 usually ships 15-28 days
25 183-3256 Relay check card support Call for price 1 (LI ONLY) usually ships 15-28 days
26 183-2691 Screw M3.5 x 6.5mm $1.35 4 usually ships 15-28 days
27 183-8365 Washer $1.35 2 usually ships 15-28 days
28 183-8364 Screw M4 x 8 $1.53 2 usually ships 15-28 days
