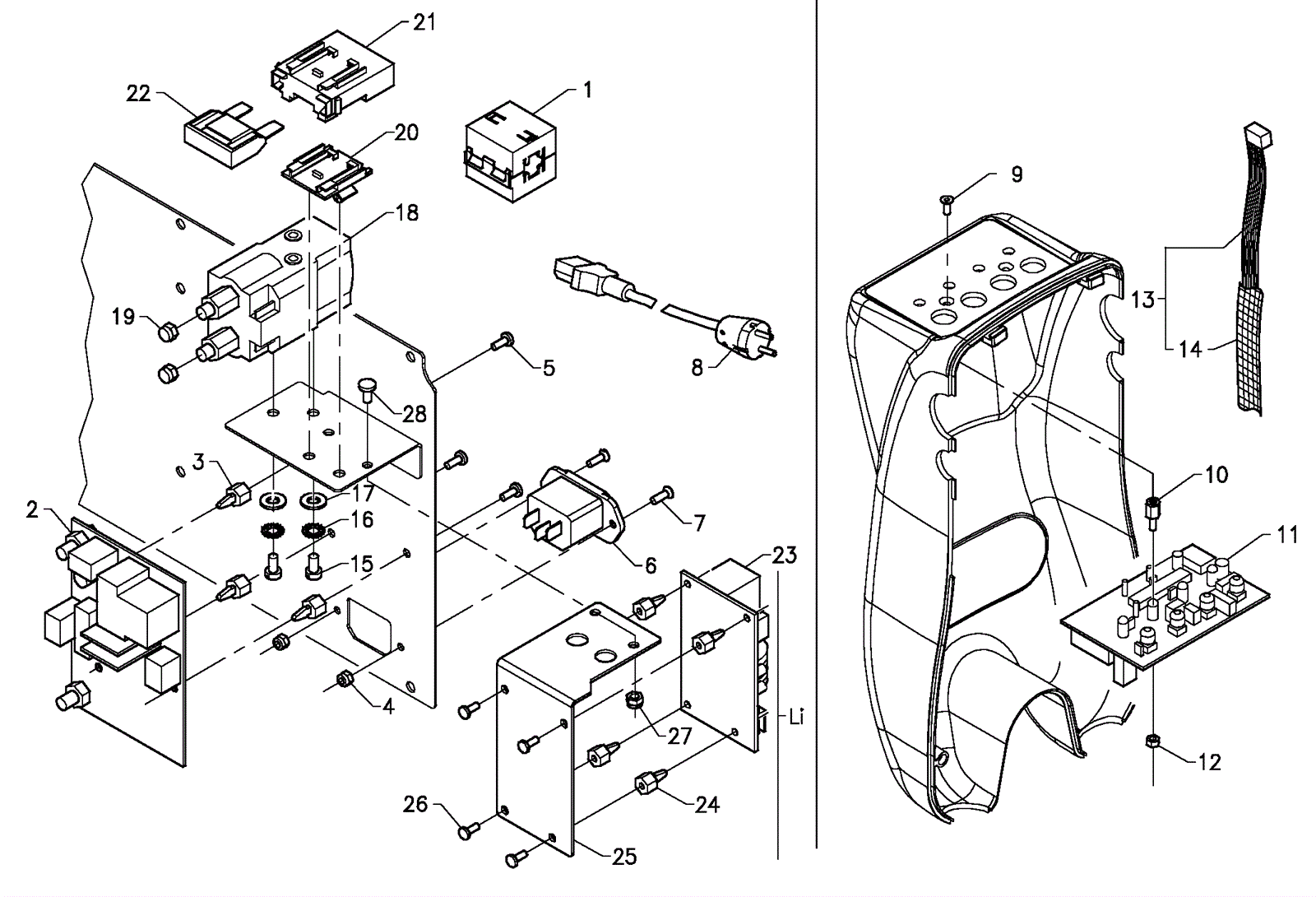

BD 17/6 Electrical Layout SN 16002168 - SN 17000582

#PartDescriptionPriceReqNotesAvailability
1 183-2694 Ferrite with quick coupling $12.55 1 usually ships 8-21 days
2a 183-2338 Relay check card $202.14 1 usually ships 8-21 days
2b 183-2338 Relay check card $202.14 1 usually ships 8-21 days
3 183-3251 Standoff spacer $2.64 3 usually ships 8-21 days
4 183-8357 Nut $1.23 2 usually ships 8-21 days
5 183-2691 Screw M3.5 x 6.5mm $1.23 3 usually ships 8-21 days
6 183-3252 Main plug $4.49 1 ships same day
7 183-2459 Screw M3 x 10mm $1.23 2 usually ships 8-21 days
8 183-4711 Charger cable $21.60 1 usually ships 8-21 days
9 183-8506 Screw $1.23 2 usually ships 8-21 days
10 183-2690 Hexagonal spacer $3.14 2 usually ships 8-21 days
11 183-3254 Control check card $201.14 1 usually ships 8-21 days
12 183-8386 Nylon nut $1.23 2 usually ships 8-21 days
13 183-2268 Cable and sheath $29.90 1 (includes 14) usually ships 8-21 days
14 183-2269 Sheath $2.97 1 usually ships 1-5 days
15 183-8364 Screw M4 x 8 $1.39 2 usually ships 8-21 days
16 183-8365 Washer $1.23 2 usually ships 8-21 days
17 183-2665 Washer $1.23 2 usually ships 8-21 days
18 183-8367 80amp Remote control switch $92.28 1 usually ships 8-21 days
19 183-2646 Nut cover (OBSOLETE) $1.18 2 usually ships 8-21 days
20 183-8329 Plate $2.04 1 usually ships 8-21 days
21 183-8324 Fuse holder $4.14 1 usually ships 8-21 days
22 183-8377 30amp Fuse $3.79 1 usually ships 8-21 days
23 183-3255 Brush motor relay check card Call for price 1 (LI only) usually ships 8-21 days
24 183-3251 Standoff spacer $2.64 4 usually ships 8-21 days
25 183-3256 Relay check card support Call for price 1 (LI only) usually ships 8-21 days
26 183-2691 Screw M3.5 x 6.5mm $1.23 4 usually ships 8-21 days
27 183-3233 Lock nut $1.23 2 usually ships 8-21 days
28 183-8364 Screw M4 x 8 $1.39 2 usually ships 8-21 days
