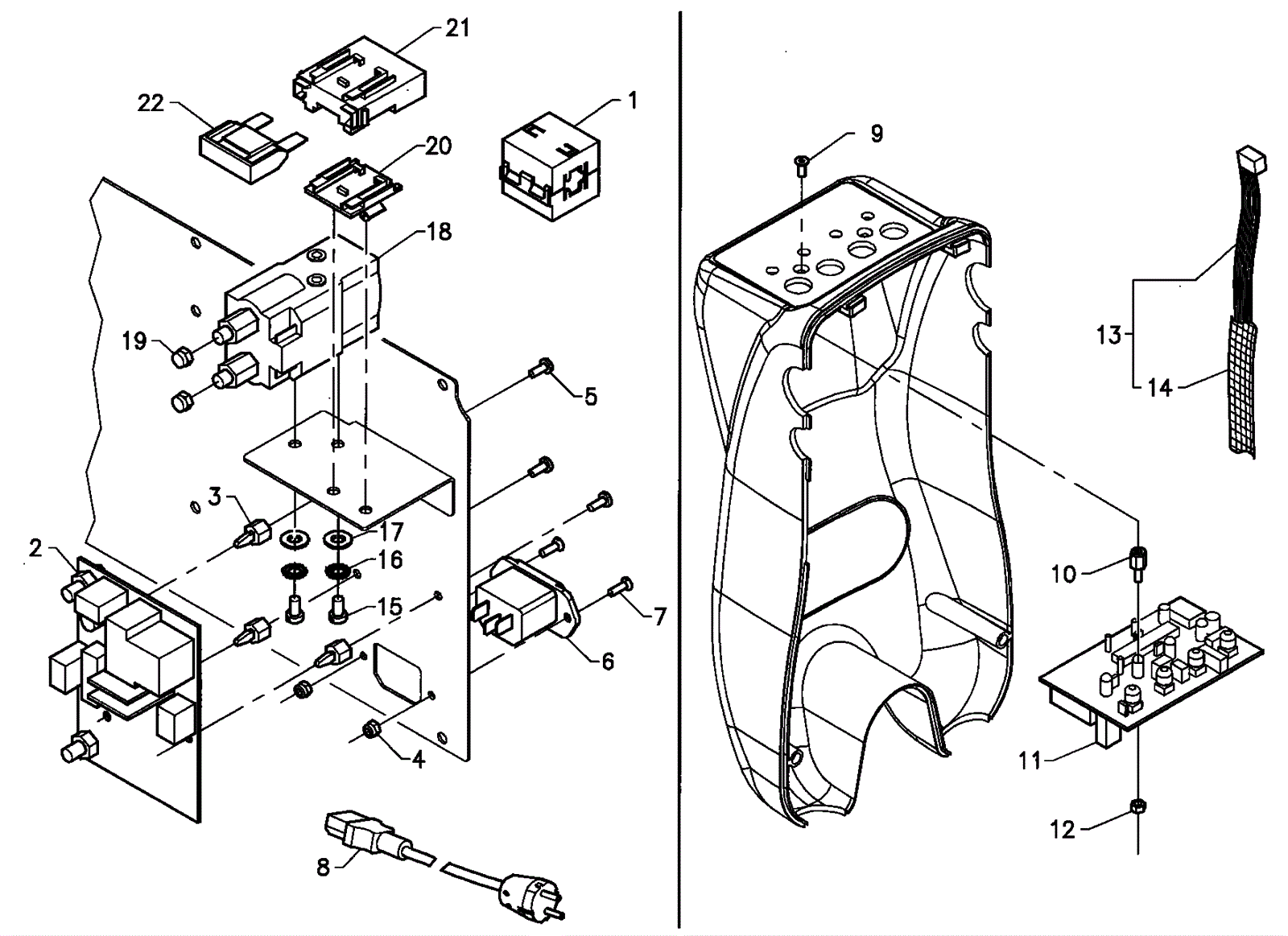

BD 17/6 Electrical Layout SN 16000173 - SN 16001527

#PartDescriptionPriceReqNotesAvailability
1 183-2694 Ferrite with quick coupling $13.81 1 usually ships 14-19 days
2a 183-2338 Relay check card $222.35 1 ships same day
2b 183-2338 Relay check card $222.35 1 ships same day
3a 183-2693 Plastic coupler pin $3.08 3 usually ships 14-19 days
3b 183-2693 Plastic coupler pin $3.08 3 usually ships 14-19 days
4 183-8357 Nut $1.54 2 usually ships 14-19 days
5 183-2691 Screw M3.5 x 6.5mm $1.54 3 usually ships 14-19 days
6 183-3252 Main plug $5.28 1 usually ships 14-19 days
7 183-2459 Screw M3 x 10mm $1.54 2 usually ships 14-19 days
8a 183-3253 Recharger cable Call for price 1 usually ships 14-19 days
8b 183-4711 Charger cable $27.49 1 usually ships 14-19 days
9 183-8506 Screw $1.54 2 usually ships 14-19 days
10 183-2690 Hexagonal spacer $3.74 2 usually ships 14-19 days
11 183-0980 Control check card $221.25 1 usually ships 14-19 days
12 183-8386 Nylon nut $1.54 2 usually ships 14-19 days
13 183-2268 Cable and sheath $32.89 1 (includes 14) usually ships 14-19 days
14 183-2269 Sheath $3.52 1 usually ships 1-5 days
15 183-8364 Screw M4 x 8 $1.76 2 usually ships 14-19 days
16 183-8365 Washer $1.54 2 usually ships 14-19 days
17 183-2665 Washer $1.54 2 usually ships 14-19 days
18 183-8367 80amp Remote control switch $101.51 1 usually ships 14-19 days
19 183-2646 Nut cover (OBSOLETE) $1.30 2 usually ships 14-19 days
20 183-8329 Plate $2.42 1 usually ships 14-19 days
21 183-8324 Fuse holder $4.84 1 usually ships 14-19 days
22 183-2168 50amp maxifuse $4.62 1 usually ships 14-19 days
