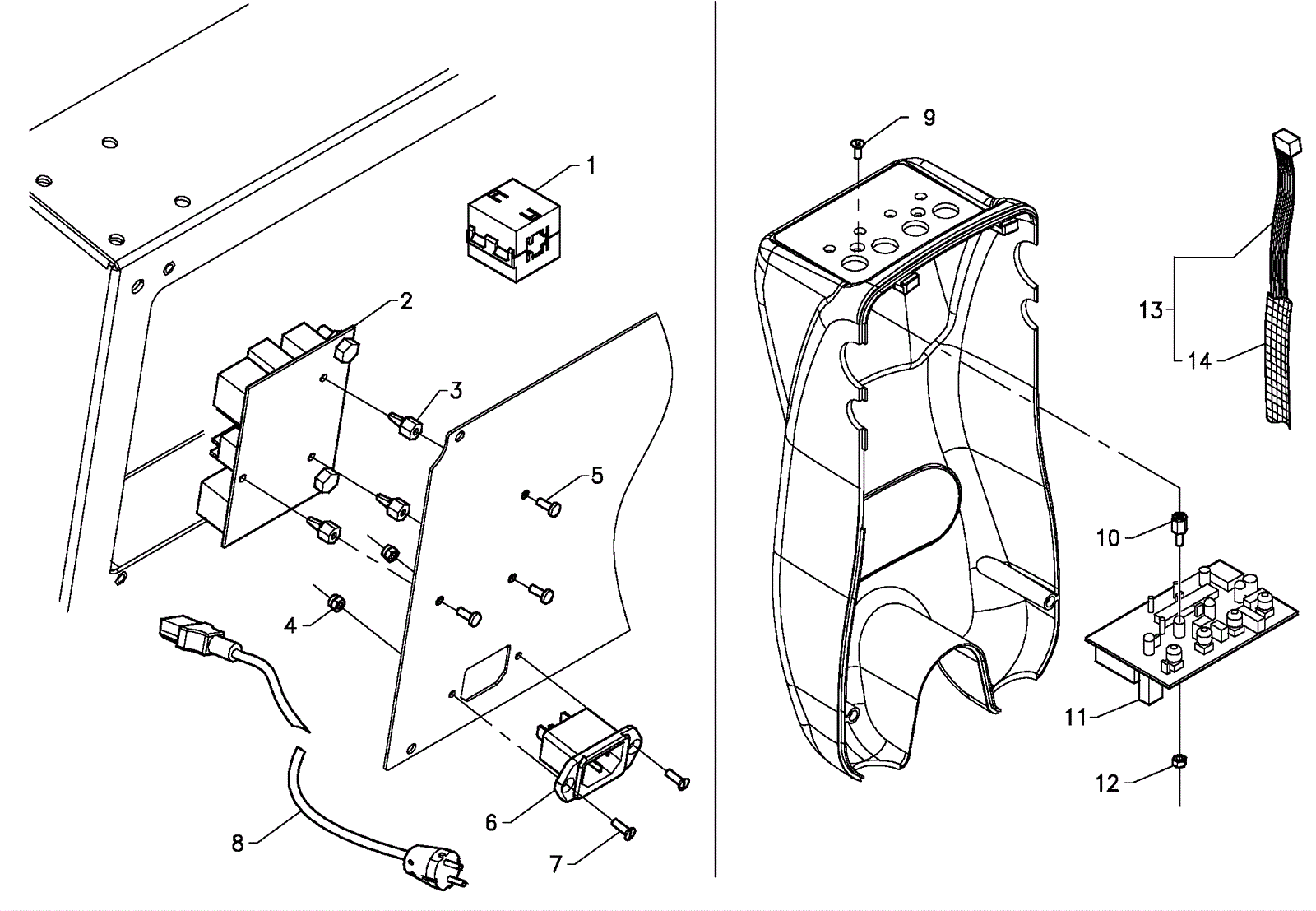

BD 17/6 Electrical Layout SN 14002251 - SN 16000172

#PartDescriptionPriceReqNotesAvailability
1 183-2694 Ferrite with quick coupling $13.81 1 usually ships 15-28 days
2 183-2298 Relay check card $215.09 1 usually ships 15-28 days
3a 183-2693 Plastic coupler pin $3.08 3 usually ships 15-28 days
3b 183-2693 Plastic coupler pin $3.08 3 usually ships 15-28 days
4 183-8357 Nut $1.54 2 usually ships 15-28 days
5 183-2691 Screw M3.5 x 6.5mm $1.54 3 usually ships 15-28 days
6 183-3252 Main plug $5.28 1 ships same day
7 183-2459 Screw M3 x 10mm $1.54 2 usually ships 15-28 days
8 183-4711 Charger cable $23.76 1 usually ships 15-28 days
9 183-8506 Screw $1.54 2 usually ships 15-28 days
10 183-2690 Hexagonal spacer $3.74 2 usually ships 15-28 days
11a 183-0980 Control check card $221.25 1 usually ships 15-28 days
11b 183-0980 Control check card $221.25 1 usually ships 15-28 days
12 183-8386 Nylon nut $1.54 2 usually ships 15-28 days
13 183-2268 Cable and sheath $32.89 1 (includes 14) usually ships 15-28 days
14 183-2269 Sheath $3.52 1 usually ships 1-5 days
