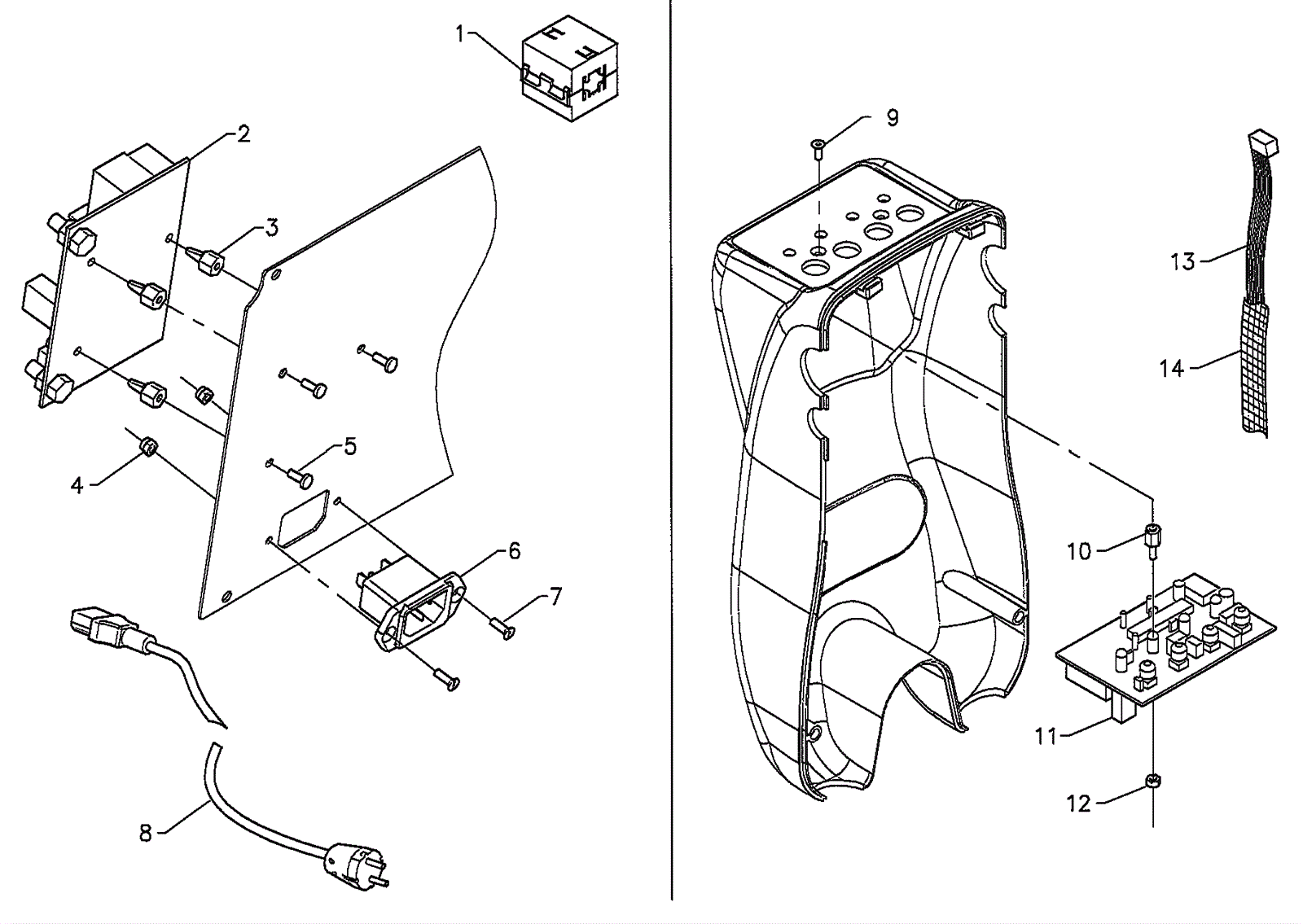

BD 17/6 Electrical Layout Up to SN 14002250

#PartDescriptionPriceReqNotesAvailability
1 183-2694 Ferrite with quick coupling $12.55 1 usually ships 8-21 days
2a 183-2297 Relay check card $183.73 1 usually ships 8-21 days
2b 183-2298 Relay check card $195.54 1 (SN 14002251 thru 16000172) usually ships 8-21 days
3a 183-2693 Plastic coupler pin $1.18 3 usually ships 8-21 days
3b 183-3251 Standoff spacer $2.64 3 usually ships 8-21 days
4 183-8357 Nut $1.23 2 usually ships 8-21 days
5 183-2691 Screw M3.5 x 6.5mm $1.23 3 usually ships 8-21 days
6 183-3252 Main plug $4.49 1 ships same day
7 183-2459 Screw M3 x 10mm $1.23 2 usually ships 8-21 days
8a 183-3253 Recharger cable Call for price 1 usually ships 8-21 days
8b 183-4711 Charger cable $21.60 1 usually ships 8-21 days
9 183-8506 Screw $1.23 2 usually ships 8-21 days
10 183-2690 Hexagonal spacer $3.14 2 usually ships 8-21 days
11a 183-0980 Control check card $188.71 1 usually ships 8-21 days
11b 183-3254 Control check card $201.14 1 usually ships 8-21 days
12 183-8386 Nylon nut $1.23 2 usually ships 8-21 days
13 183-2268 Cable and sheath $29.90 1 usually ships 8-21 days
14 183-2269 Sheath $2.97 1 usually ships 1-5 days
