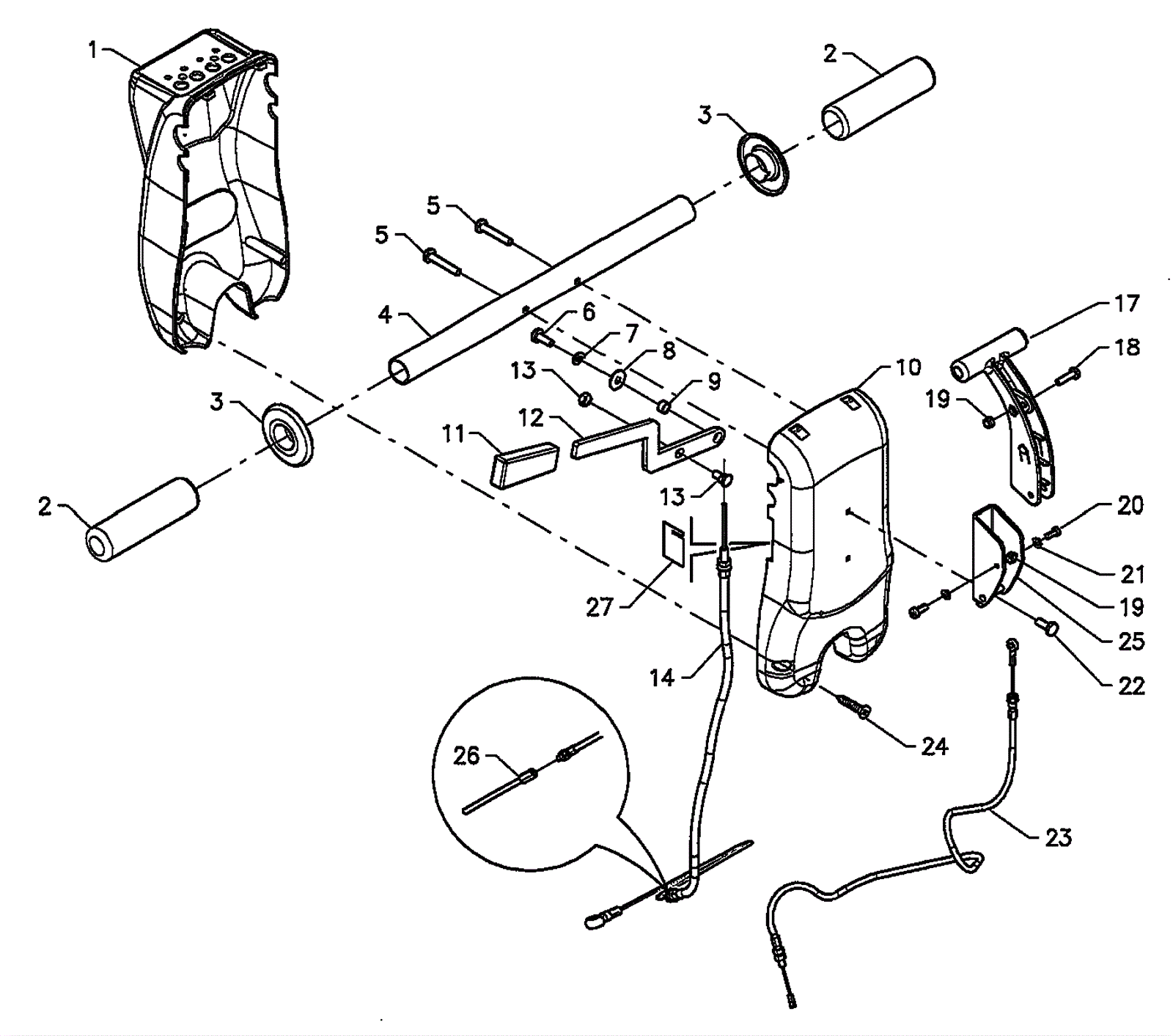

BD 17/6 Handle Bar Control Levers Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-3213 Handle bar cover $23.01 1 usually ships 8-21 days
1b 183-2647 Handlebar cover $25.71 1 usually ships 8-21 days
2 183-8336 Handle grip $9.17 2 usually ships 8-21 days
3 183-8396 Handle cap $2.61 2 usually ships 8-21 days
4 183-8340 Handle tube $25.04 1 usually ships 8-21 days
5 183-8341 Screw $3.18 2 usually ships 8-21 days
6 183-2648 Screw M6 x 16mm $1.35 1 usually ships 8-21 days
7 183-2539 Lock washer $1.35 1 usually ships 8-21 days
9 183-2649 Bushing $7.41 1 usually ships 8-21 days
10a 183-2650 Handlebar body $80.92 1 usually ships 8-21 days
10b 183-3215 Handle bar body $93.16 1 usually ships 8-21 days
11 183-8285 Knob $4.51 1 usually ships 8-21 days
12 183-2651 Release lever $13.65 1 usually ships 8-21 days
13 183-2652 Holdfast and nut $3.09 1 usually ships 8-21 days
14 183-3216 Handle bar release cable $18.02 1 usually ships 8-21 days
17 183-2654 Squeegee lever $11.25 1 usually ships 8-21 days
18 183-2655 Screw M5 x 20mm $1.35 1 usually ships 8-21 days
19 183-8314 Nut $1.35 3 usually ships 8-21 days
20 183-2656 Screw M5 x 12mm $1.35 2 usually ships 8-21 days
21 183-8327 Washer $1.35 2 usually ships 8-21 days
22 183-2662 Screw M5 x 12mm (OBSOLETE) Call for price 2 usually ships 8-21 days
23 183-3217 Squeegee lift cable $41.73 1 usually ships 8-21 days
24 183-2658 Screw M4 x 25mm $1.35 2 usually ships 8-21 days
25 183-2659 Lever support $38.40 1 usually ships 8-21 days
26 183-2664 Extension sheath $8.35 1 usually ships 8-21 days
27 183-2663 Handle bar protection $4.81 1 usually ships 8-21 days
N/S 183-2660 Instrument board decal $10.69 1 usually ships 8-21 days
