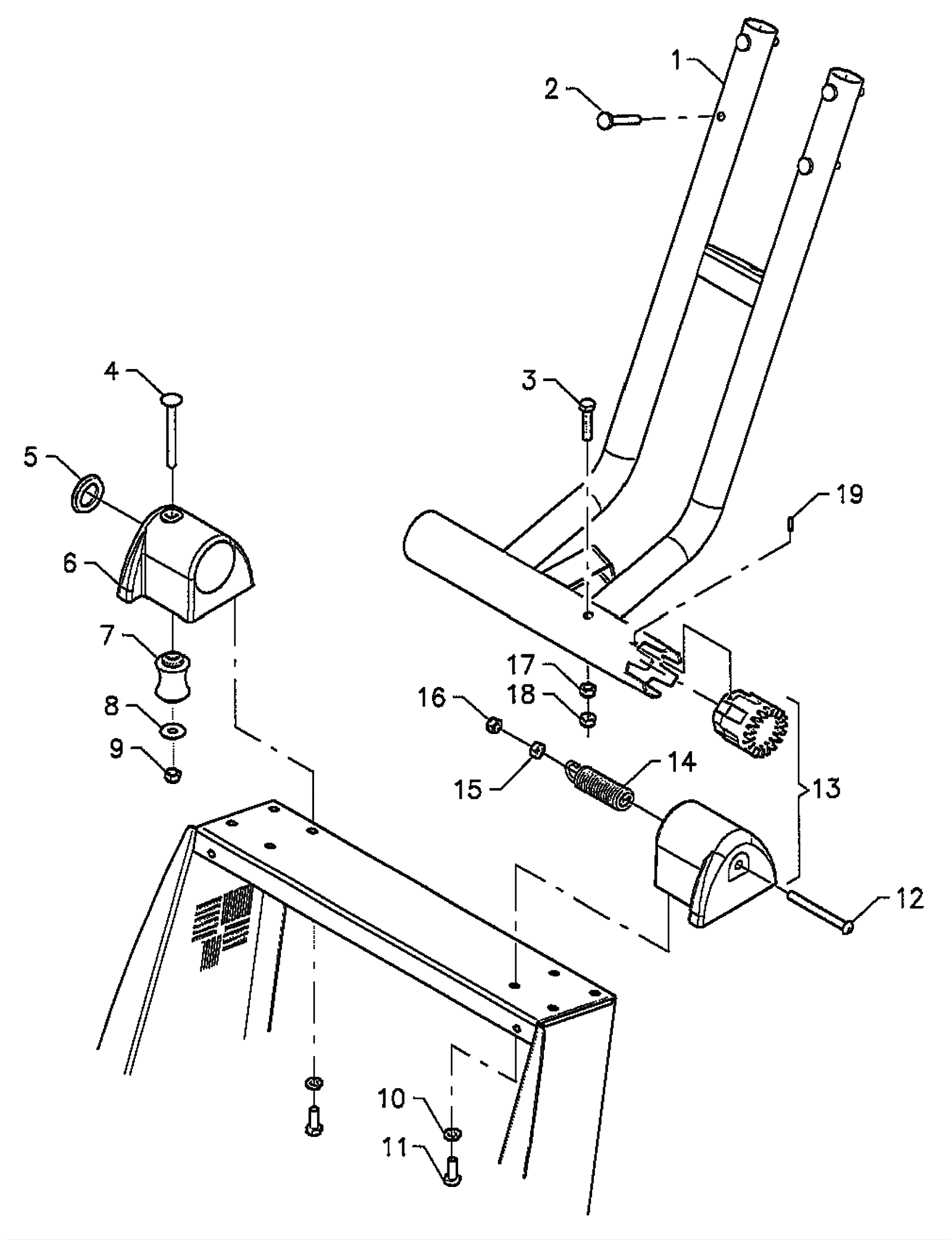

BD 17/6 Handle Bar Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-3212 Handlebar tube $348.74 1 usually ships 14-19 days
2 183-8341 Screw $3.30 4 usually ships 14-19 days
3 183-2636 Screw M6 x 50mm $1.54 1 usually ships 14-19 days
4 183-2637 Screw M6 x 60mm $1.54 1 usually ships 14-19 days
5 183-2638 Cover $1.98 1 usually ships 14-19 days
6 183-2639 Right hand handle bar support $30.94 1 usually ships 14-19 days
7 183-2640 Reel $17.70 1 usually ships 14-19 days
10 183-2641 Washer (OBSOLETE) $1.30 8 usually ships 14-19 days
12 183-2642 Screw M6 x 60mm $1.10 1 ships same day
13 183-2643 Toothed support assembly $56.09 1 usually ships 14-19 days
14 183-2644 Traction spring $11.31 1 usually ships 14-19 days
15 183-8378 Nut $1.54 1 usually ships 14-19 days
16 183-8256 Nut $1.54 1 usually ships 14-19 days
18 183-2646 Nut cover (OBSOLETE) $1.30 1 usually ships 14-19 days
19 183-2645 Spring pin $1.54 1 usually ships 14-19 days
