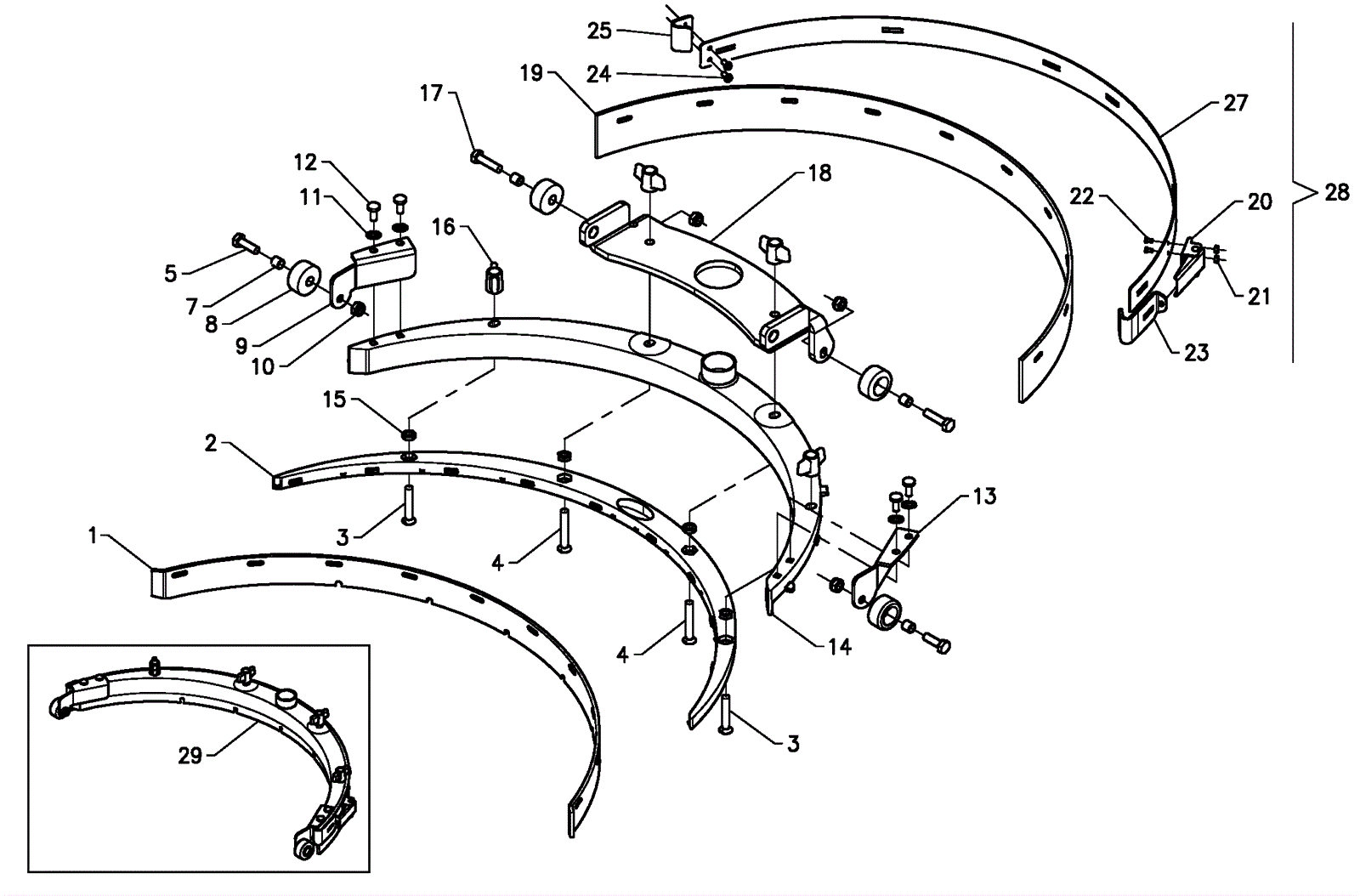

BD 17/6 Squeegee Assembly From SN 17000990

#PartDescriptionPriceReqNotesAvailability
1 183-3189 Squeegee blade rubber front $53.63 1 usually ships 8-21 days
2 183-3190 Inner support holder rubber $43.99 1 usually ships 8-21 days
3 183-2602 Screw M6 x 35mm $1.23 2 usually ships 8-21 days
4 183-2600 Screw M6 x 40mm $1.23 2 usually ships 8-21 days
5 183-2597 Screw M6 x 20mm $1.23 2 usually ships 8-21 days
7 183-2598 Bushing $7.30 4 usually ships 8-21 days
8a 183-4714 Wheel (black) $10.50 4 ships same day
8b 183-3191 Hard wheel $10.38 4 usually ships 8-21 days
9 183-3192 Right hand wheel support $11.01 1 usually ships 8-21 days
10 183-8271 Nut INOX $1.23 4 usually ships 8-21 days
11 183-2578 Lock washer $1.23 4 usually ships 8-21 days
12 183-2596 Screw M5 x 12mm $1.77 4 usually ships 8-21 days
13 183-3193 Left hand wheel support $11.04 1 usually ships 8-21 days
14 183-3194 Squeegee body $75.04 1 usually ships 8-21 days
15 183-8214 Nut $0.31 4 usually ships 8-21 days
16 183-2305 Wing nut $4.24 4 usually ships 8-21 days
17 183-8524 Screw M6 x 25 $1.23 2 usually ships 8-21 days
18 183-3195 Squeegee coupling $37.79 1 usually ships 8-21 days
19 183-3196 Squeegee blade rubber rear $73.11 1 usually ships 8-21 days
20 183-2605 Closing with screw M4 x 35mm $65.03 1 usually ships 8-21 days
21 183-3197 Nut $1.23 2 usually ships 8-21 days
22 183-3198 Screw M2.5 x 8mm $1.23 2 usually ships 8-21 days
23 183-3199 Rear coupler $11.02 1 usually ships 8-21 days
24 183-3204 Screw M2.5 x 4mm $1.23 2 usually ships 8-21 days
25 183-3200 Rear final part $10.24 1 usually ships 8-21 days
27 183-3201 Rear squeegee blade retainer $20.90 1 ships same day
28 183-3202 Rear band and latch assembly $112.75 1 (includes 20-27) usually ships 8-21 days
29 183-3203 Complete squeegee assembly $439.52 1 (includes 1-28) usually ships 8-21 days
