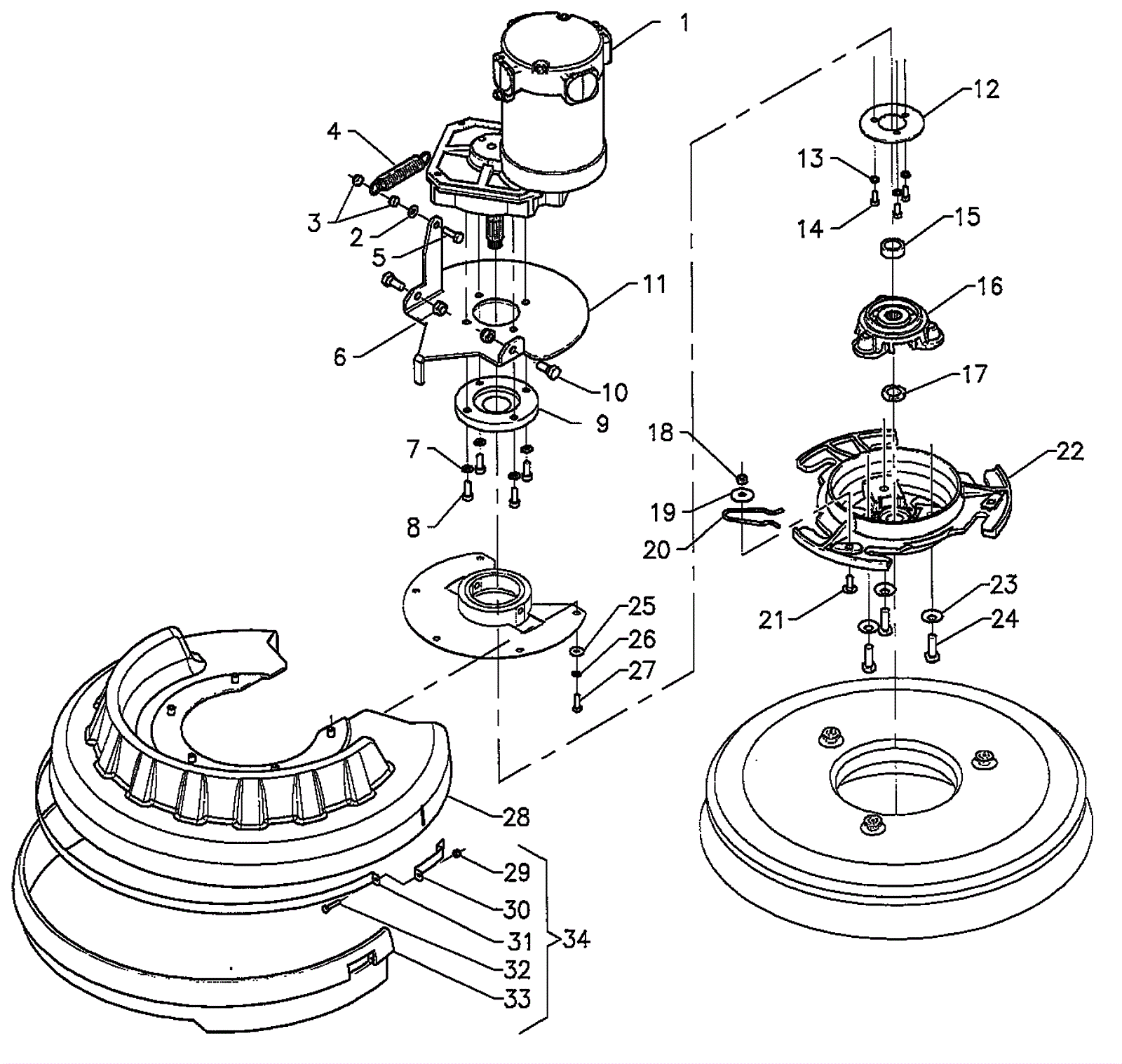

BD 17/6 Brush Base Assembly Up to SN 14002250

#PartDescriptionPriceReqNotesAvailability
1a 183-3169 24V brush motor $1,199.75 1 usually ships 15-28 days
1b 183-3170 Brush motor replacement kit $1,642.52 1 usually ships 15-28 days
2 183-8393 Washer $1.35 1 usually ships 15-28 days
3 183-8256 Nut $1.35 2 usually ships 15-28 days
4 183-3171 Spring Call for price 1 usually ships 15-28 days
5 183-8512 Screw M6 x 25 $1.35 1 usually ships 15-28 days
8 183-3172 Screw M6 x 16mm $1.35 4 usually ships 15-28 days
9 183-3173 Joint flange $125.41 1 usually ships 15-28 days
10 183-3174 Stud bolt Call for price 2 usually ships 15-28 days
11 183-3175 Brush base $50.47 1 usually ships 15-28 days
12 183-3176 Stop ring $5.59 1 usually ships 15-28 days
13 183-2578 Lock washer $1.35 3 usually ships 15-28 days
14 183-2581 Screw M5 x 12mm $1.35 3 usually ships 15-28 days
15 183-2574 Spacer $9.38 1 usually ships 15-28 days
16 183-2575 Flange $29.71 1 usually ships 15-28 days
17 183-3177 Blocking ring nut $9.41 1 usually ships 15-28 days
18 183-8271 Nut INOX $1.35 1 usually ships 15-28 days
20 183-2490 Brush block spring $6.48 1 usually ships 15-28 days
21a 183-3178 Screw M6 x 50mm $1.30 1 usually ships 15-28 days
21b 183-8526 Screw M6 x 14 $1.35 1 ships same day
22 183-4721 Clutch plate $35.20 1 usually ships 15-28 days
23 183-8415 Conical washer $1.35 3 usually ships 15-28 days
24 183-2584 Screw M8 x 25mm $1.35 3 usually ships 15-28 days
25 183-2580 Washer INOX $1.35 5 usually ships 15-28 days
26 183-2578 Lock washer $1.35 5 usually ships 15-28 days
27 183-3179 Screw M5 x 16mm $1.35 5 usually ships 15-28 days
28 183-3180 Base Cover $233.82 1 usually ships 15-28 days
29 183-2590 Nut $1.35 1 usually ships 15-28 days
30 183-3181 Short blade splash guard $24.71 1 usually ships 15-28 days
31 183-3182 Long blade splash guard $27.23 1 usually ships 15-28 days
32 183-2588 Screw M4 x 20mm $1.35 1 usually ships 15-28 days
33 183-3183 Splash guard $42.15 1 usually ships 15-28 days
34 183-3184 Splash guard assembly $124.31 1 (includes 29-33) usually ships 15-28 days
