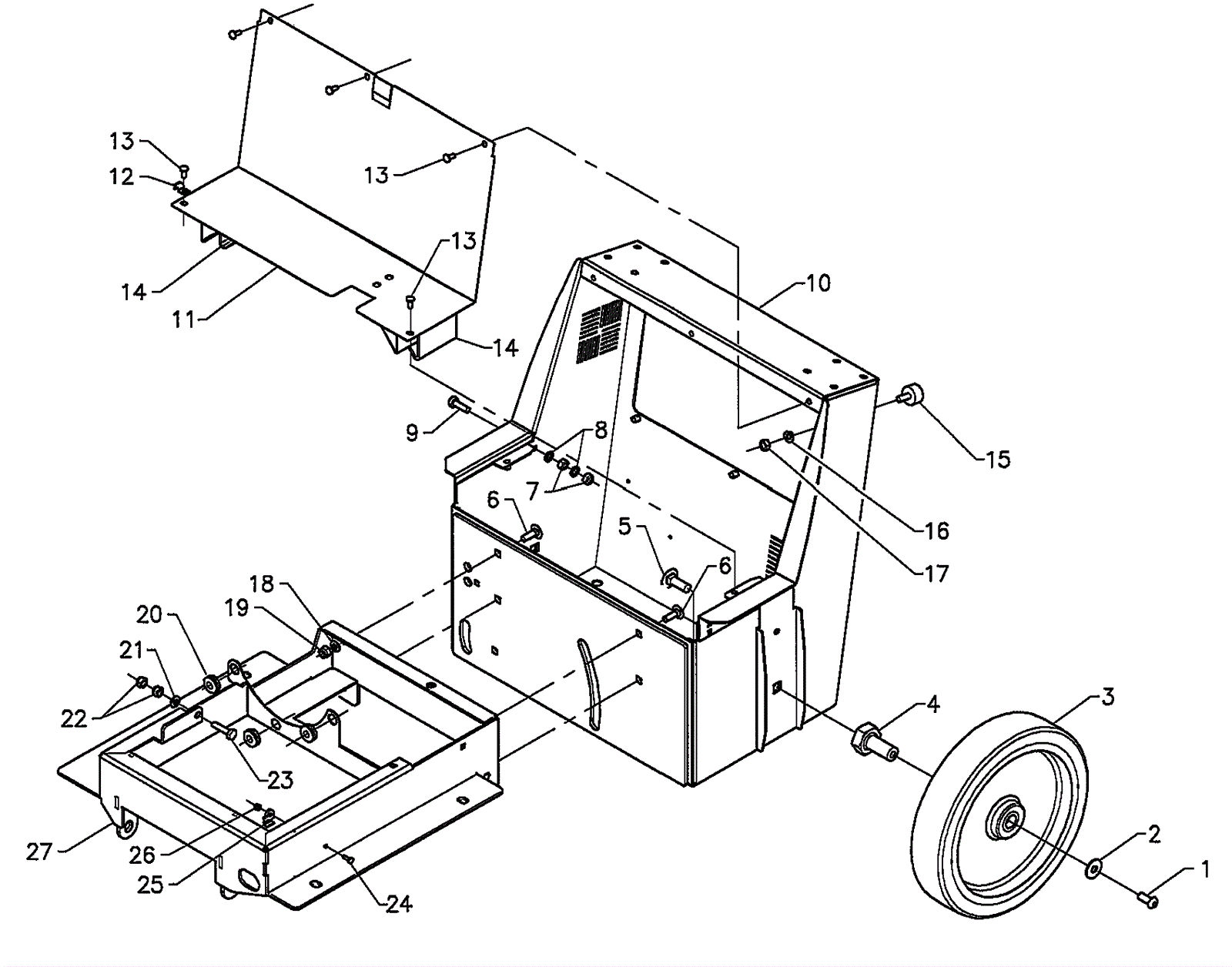

BD 17/6 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2563 Screw M8 x 20mm $1.76 2 usually ships 15-28 days
3a 183-4718 Wheel $103.17 2 usually ships 15-28 days
3b 183-2555 Wheel M250 x 50mm $107.17 2 usually ships 15-28 days
4 183-2562 Wheel pin $49.09 2 usually ships 15-28 days
5 183-2561 Screw M10 x 30mm $5.82 2 usually ships 15-28 days
6 183-3162 Screw M6 x 20mm $1.54 5 usually ships 15-28 days
7 183-8378 Nut $1.54 2 usually ships 15-28 days
8 183-8382 Washer $1.54 2 usually ships 15-28 days
9 183-8292 Screw M6 x 20 $1.54 2 usually ships 15-28 days
10 183-3163 Battery compartment $646.46 1 usually ships 15-28 days
11 183-3164 Front panel Call for price 1 usually ships 15-28 days
12 183-3165 Clip $1.76 1 usually ships 15-28 days
13 183-2702 Screw M4 x 10mm $1.54 1 usually ships 15-28 days
14 183-3166 Profile Call for price 5 usually ships 15-28 days
15 183-2568 Adhesive plastic cap $9.70 2 usually ships 15-28 days
16 183-2539 Lock washer $1.54 2 usually ships 15-28 days
17 183-8378 Nut $1.54 2 usually ships 15-28 days
18 183-8393 Washer $1.54 4 usually ships 15-28 days
20 183-3167 Fairlead $1.54 3 usually ships 15-28 days
21 183-8393 Washer $1.54 1 usually ships 15-28 days
22 183-8256 Nut $1.54 2 usually ships 15-28 days
23 183-8512 Screw M6 x 25 $1.54 1 usually ships 15-28 days
24 183-8337 Screw M3 x 10 $1.54 2 usually ships 15-28 days
25 183-8453 Eye support $1.54 1 usually ships 15-28 days
26 183-8357 Nut $1.54 1 usually ships 15-28 days
27 183-3168 Front Frame Call for price 1 usually ships 15-28 days
