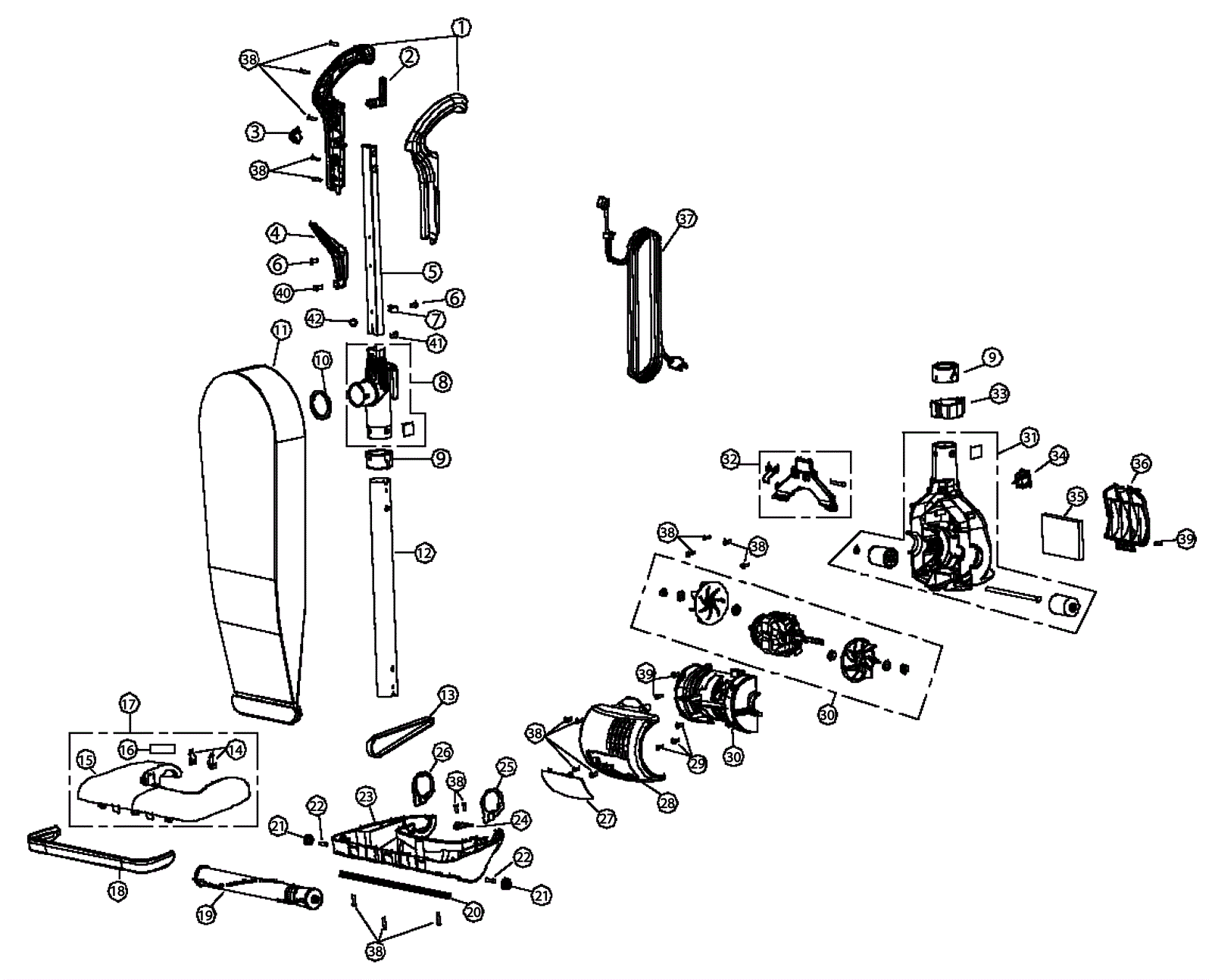

CK LW 13/1 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-3046 Handle Assembly $9.89 1 (includes 2, 3, and 38) usually ships 14-19 days
2 183-3047 Upper cord hook $2.63 1 usually ships 14-19 days
3 183-3048 Main switch handle $8.79 1 usually ships 14-19 days
4 183-3049 Commercial cord hook $3.95 1 usually ships 14-19 days
5 183-3050 Rectangular handle tube $4.86 1 usually ships 14-19 days
6 183-3051 Screw $2.63 1 usually ships 14-19 days
7 183-3052 Cable clamp $2.63 1 usually ships 14-19 days
8 183-3053 Upper duct diverter & bag mount assembly $10.99 1 usually ships 14-19 days
9 183-3054 Rubber collar $2.63 1 usually ships 14-19 days
10 183-3055 Bag mount foam gasket $2.63 1 usually ships 14-19 days
11 183-3056 Zippered cloth bag assembly $49.49 1 usually ships 14-19 days
12 183-3057 Duct tube $13.19 1 usually ships 14-19 days
13 190-1092 Belt $5.27 1 ships same day
14 183-3058 Upright stops with spring clips $3.95 1 usually ships 14-19 days
15 183-3059 Nozzle cover $12.09 1 usually ships 14-19 days
16 183-3060 Nozzle decal $2.63 1 usually ships 14-19 days
17 183-2331 Nozzle housing $27.49 1 (includes 14-16) usually ships 14-19 days
18 183-2332 Furniture guard $6.59 1 usually ships 14-19 days
19 183-4723 Agitator assembly $34.09 1 usually ships 14-19 days
20 183-3061 Squeegee $2.63 1 usually ships 14-19 days
21 183-3062 Small wheel $2.63 1 usually ships 14-19 days
22 183-3063 Small axle $2.63 1 usually ships 14-19 days
23 183-3064 Base tray $12.09 1 usually ships 14-19 days
24 183-3065 Belt guard hair cutter $13.19 1 usually ships 14-19 days
25 183-3066 Left pivot $2.63 1 usually ships 14-19 days
26 183-3067 Right pivot $2.63 1 usually ships 14-19 days
27 183-3068 Lens $2.63 1 usually ships 14-19 days
28 183-3069 Lens holder (yellow) $6.59 1 usually ships 14-19 days
29 183-3070 Motor cover (black) $14.29 1 usually ships 14-19 days
30a 183-3071 Motor assembly $196.17 1 usually ships 14-19 days
30b 183-3072 Motor upgrade kit $235.66 1 (up to SN 0214014783) usually ships 14-19 days
30c 183-2537 Motor $169.39 1 (from SN 0214014784) usually ships 14-19 days
31 183-3074 Motor housing assembly $45.09 1 usually ships 14-19 days
32 183-3075 Duct cover assembly $9.89 1 usually ships 14-19 days
33 183-3076 Lower cord clip/yoke support $2.63 1 usually ships 14-19 days
34 183-3077 Male plug $3.95 1 usually ships 14-19 days
35 183-2538 Hepa filter $3.95 1 ships same day
36 183-3078 Filter cover $2.63 1 usually ships 14-19 days
37 183-3079 Cord set $91.29 1 usually ships 14-19 days
38 183-2343 Screw M8-18 x 5/8 $3.95 1 ships same day
39 183-3080 Screw $3.95 1 usually ships 14-19 days
40 183-3081 Screw $2.63 1 usually ships 14-19 days
41 183-3082 Screw $2.63 1 usually ships 14-19 days
42 183-3083 Nylon insert $2.63 1 usually ships 14-19 days
