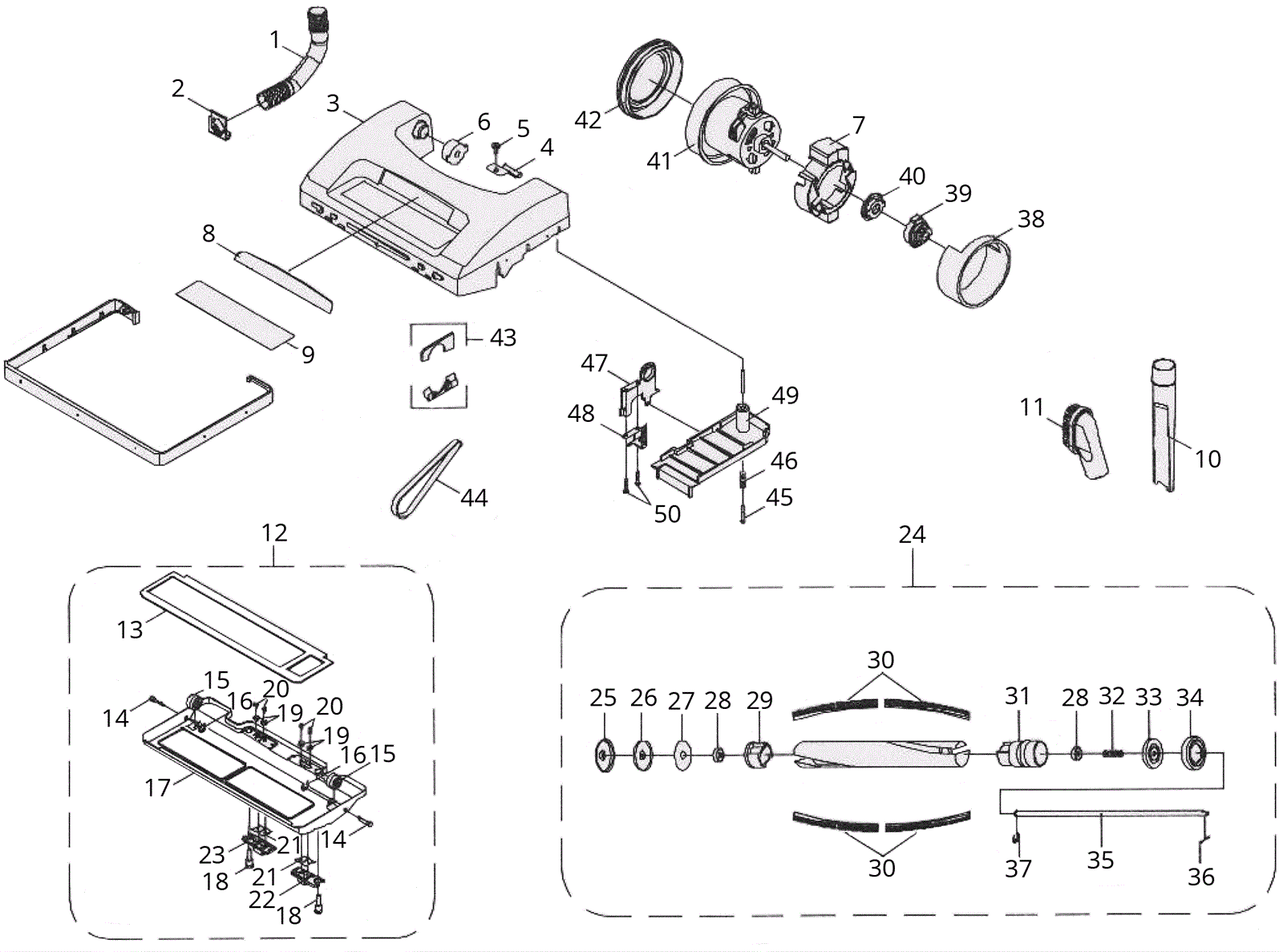

CK 14/1 Brush Head Assembly - Hepa

#PartDescriptionPriceReqNotesAvailability
1 190-0448 Nozzle hose $7.69 1 ships same day
2 183-1548 Nozzle hose collar $3.54 1 usually ships 15-28 days
3 183-1549 Brush base housing assembly $60.09 1 usually ships 15-28 days
4 190-1450 Handle release spring $1.30 1 usually ships 14-19 days
5 190-0201 Screw for handle release spring $1.35 1 usually ships 1-5 days
6 183-9089 Brush base collar $1.35 1 usually ships 15-28 days
8 183-1550 Lens (black) Call for price 1 usually ships 15-28 days
9 190-0168 Clean max top mark $3.70 1 usually ships 1-5 days
10 190-0169 Crevice tool $6.59 1 usually ships 14-19 days
11 190-0170 Dusting brush $15.39 1 ships same day
12 190-0171 Base plate assembly $28.59 1 (includes 13-23) ships same day
13 183-1551 Base plate gasket $0.48 1 usually ships 15-28 days
14 190-0173 Base plate wheel axle $1.30 1 usually ships 14-19 days
15 190-0174 Base plate wheel $1.30 1 usually ships 14-19 days
16 190-0175 Base plate wheel push nut $1.30 1 usually ships 1-5 days
17 190-0171 Base plate assembly $28.59 1 ships same day
18 190-0176 Base plate latch stud screw $1.83 1 usually ships 14-19 days
19 183-1552 Plastic insert Call for price 1 usually ships 15-28 days
20 190-0112 Screw $0.99 1 usually ships 1-5 days
21 190-9686 Screw #8-18 x 5/8 $1.30 1 usually ships 15-28 days
22 190-0178 Base plate latch left $1.30 1 usually ships 1-5 days
23 190-0179 Base plate latch right $1.30 1 usually ships 1-5 days
24 190-0180 Brushroll assembly $47.58 1 (includes 25-37) ships same day
25 190-0181 Brushroll rubber end caps left $1.30 1 usually ships 14-19 days
26 190-0182 Brushroll metal cap left $1.30 1 usually ships 14-19 days
27 190-0183 Brushroll felt washer $1.30 1 ships same day
28 190-0184 Brushroll bearing $4.69 1 usually ships 14-19 days
29 190-0185 Brushroll bearing holder (OBSOLETE) $9.00 1 usually ships 14-19 days
30 190-0186 Brush insert strips $4.36 1 ships same day
31 190-0187 Brushroll belt pulley (OBSOLETE) $35.46 1 usually ships 14-19 days
32 190-0188 Brushroll spacing spring $1.30 1 usually ships 1-5 days
33 190-0189 Brushroll pulley metal end cap $1.45 1 usually ships 1-5 days
34 190-0190 Brushroll pulley end rubber cap $1.30 1 usually ships 14-19 days
35 190-0191 Brushroll shaft $2.77 1 ships same day
36 190-0192 Brushroll spring clip $1.30 1 usually ships 1-5 days
37 190-0193 Brushroll e-clip $1.30 1 usually ships 14-19 days
39 190-0194 Metal pivot sleeve $3.17 1 usually ships 14-19 days
40 190-0195 Front rubber motor mount $2.18 1 usually ships 1-5 days
41 183-1547 Vacuum motor with cover $140.35 1 usually ships 15-28 days
42 190-0197 Rear rubber motor mount $3.83 1 usually ships 1-5 days
43 190-0198 Vented support fitting $1.30 1 usually ships 14-19 days
44 190-0199 Belt $3.83 1 ships same day
45 190-0206 Screw for swivel belt cover $1.30 1 usually ships 14-19 days
46 190-0207 Spring for swivel belt cover $1.30 1 usually ships 14-19 days
47 190-0202 Pedal frame $2.78 1 usually ships 14-19 days
48 190-0203 Rear belt guard $1.30 1 usually ships 14-19 days
49 190-0204 Rear swivel belt cover $4.47 1 usually ships 14-19 days
50 190-0205 Screw for pedal frame $1.30 1 usually ships 1-5 days
