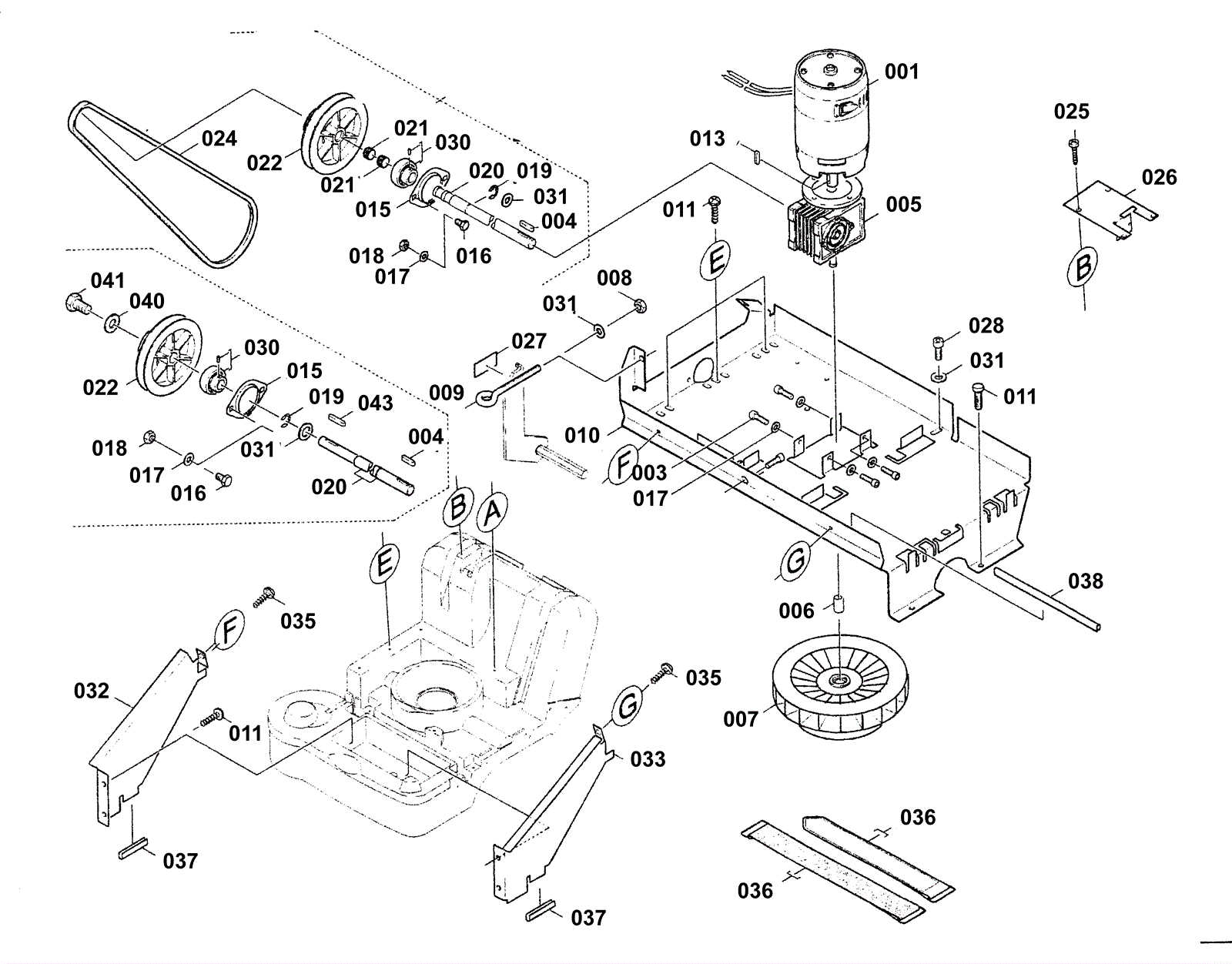

KSM 750B Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 183-4118 DC motor (OBSOLETE) $503.10 1 usually ships 9-20 days
003 183-4062 Screw, cheese head (Obsolete) $3.14 4 usually ships 1-5 days
004 183-4067 Square keyway $2.06 1 usually ships 1-5 days
005 183-4119 Worm gearing (obsolete) $656.70 1 usually ships 1-5 days
006 183-4120 Tolerance $5.48 1 usually ships 1-5 days
007 183-4121 Blower wheel (obsolete) $140.49 1 usually ships 1-5 days
008 183-0341 Hex nut $1.48 3 usually ships 1-5 days
009 183-4122 Ear (obsolete) Call for price 1 usually ships 1-5 days
010 183-4123 Plate (Obsolete) $169.70 1 usually ships 1-5 days
011 183-2034 Screw (obsolete) $3.14 9 usually ships 1-5 days
013 183-4124 Spring (Obsolete) $6.53 1 usually ships 1-5 days
015 183-4070 Flange housing $8.98 2 usually ships 1-5 days
016 183-0236 Screw $72.09 2 usually ships 9-20 days
017 183-0237 Washer $1.91 6 usually ships 1-5 days
018 183-0262 Hex nut $1.23 2 usually ships 1-5 days
019 183-4072 Washer lock $1.23 1 usually ships 1-5 days
020a 183-4125 Shaft (Obsolete) Call for price 1 usually ships 1-5 days
020b 183-4126 Shaft $56.68 1 usually ships 1-5 days
021 183-4127 Tolerance ring $3.62 2 usually ships 1-5 days
022a 183-4128 Pulley (Obsolete) $74.32 1 usually ships 9-20 days
022b 183-4128 Pulley (Obsolete) $74.32 1 usually ships 9-20 days
024 183-4129 Large v-belt (OBSOLETE) $36.09 1 usually ships 9-20 days
025 183-0111 Screw (Obsolete) $4.12 4 usually ships 1-5 days
026 183-4130 Plate (Obsolete) Call for price 1 usually ships 1-5 days
027 183-4131 Decal (Obsolete) $3.14 1 usually ships 1-5 days
028 183-2035 Cheese head screw $1.23 1 usually ships 1-5 days
030 183-4058 Bearing $67.63 1 usually ships 1-5 days
031 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
032 183-4132 Plate (Obsolete) $45.30 1 usually ships 1-5 days
033 183-4133 Plate (Obsolete) $36.78 1 usually ships 1-5 days
036 183-4134 Tape (obsolete) $29.52 1 usually ships 1-5 days
037 183-4135 Sheating (Obsolete) $3.33 2 usually ships 1-5 days
038 183-4136 Protection part (Obsolete) $12.01 1 usually ships 1-5 days
040 183-0261 Screw (obsolete) $4.12 1 usually ships 1-5 days
041 183-4137 Washer (Obsolete) $7.57 1 usually ships 1-5 days
043 183-4138 Square keyway $2.08 1 usually ships 1-5 days
