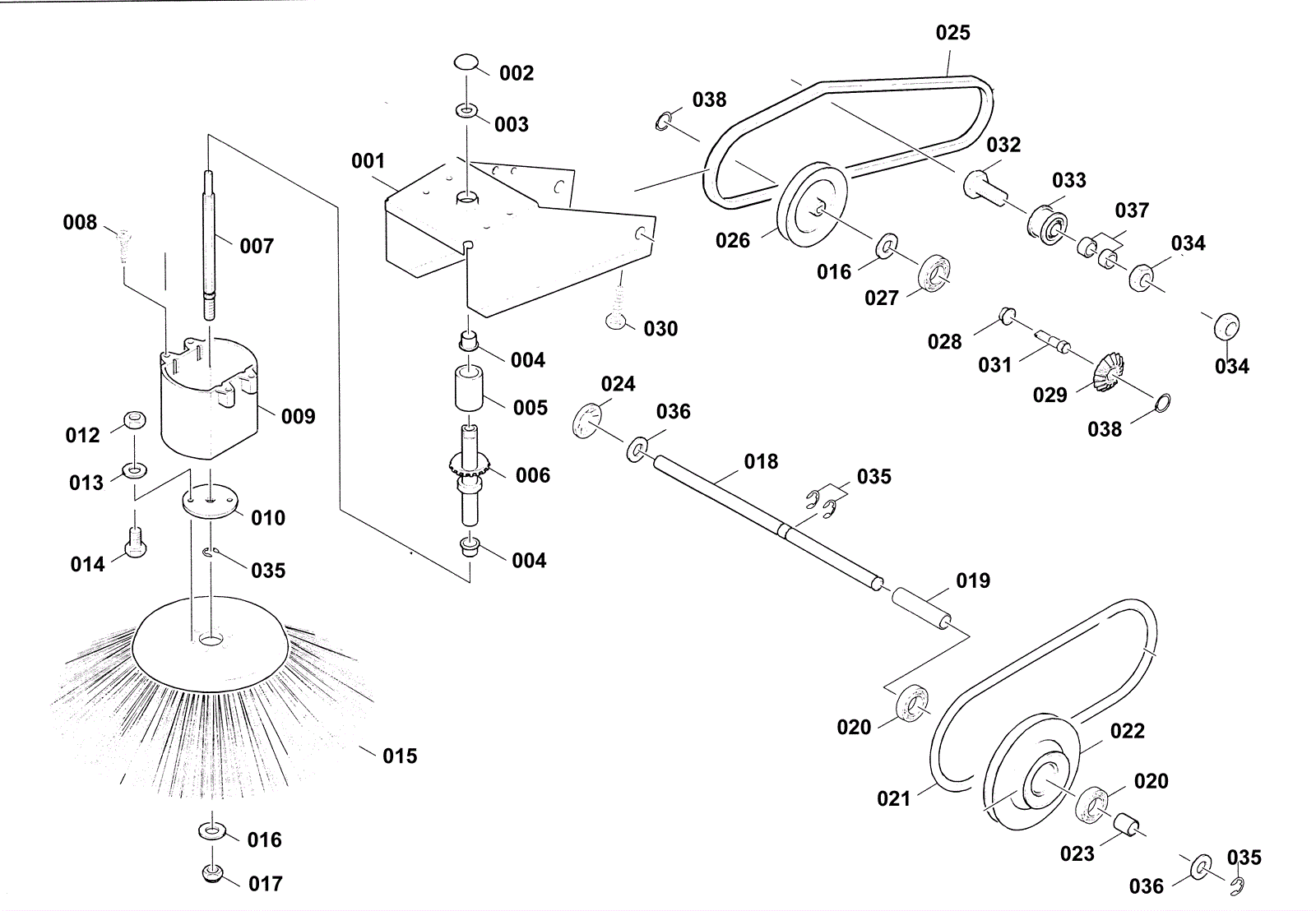

KSM 750B Gear Version 2 Assembly

#PartDescriptionPriceReqNotesAvailability
001 183-4075 Plate (Obsolete) $64.52 1 usually ships 1-5 days
002 183-4077 Washer lock $3.22 1 usually ships 1-5 days
003 183-0379 Washer $1.23 1 usually ships 1-5 days
004 183-4078 Bearing bush $3.54 2 usually ships 9-20 days
005 183-4079 Sleeve $18.34 1 usually ships 1-5 days
006 183-4080 Hollow shaft $11.73 1 usually ships 9-20 days
007 183-4081 Axle $92.68 1 usually ships 1-5 days
008 183-0111 Screw (Obsolete) $4.12 4 usually ships 1-5 days
009 183-4082 Housing (Obsolete) $19.54 1 usually ships 1-5 days
010 183-4083 Washer (Obsolete) $11.74 1 usually ships 1-5 days
012 183-0262 Hex nut $1.23 2 usually ships 1-5 days
013 183-0237 Washer $1.91 2 usually ships 1-5 days
014 183-0236 Screw $72.09 2 usually ships 9-20 days
015 183-4084 Broom $132.36 1 usually ships 1-5 days
016 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
017 183-0341 Hex nut $1.48 1 usually ships 1-5 days
018 183-4085 Axle (Obsolete) $9.05 1 usually ships 1-5 days
019 183-4086 Sleeve (Obsolete) $5.00 1 usually ships 1-5 days
020 183-0375 Ball bearing $4.74 2 usually ships 9-20 days
021 183-4087 Belt $77.72 1 usually ships 9-20 days
022 183-4088 Pulley $26.12 1 usually ships 1-5 days
023 183-4089 Sleeve (Obsolete) $5.00 1 usually ships 1-5 days
024 183-4090 Quick fastener $2.39 1 usually ships 1-5 days
025 183-4091 Large v-belt $17.02 1 usually ships 9-20 days
026 183-4093 Pulley $16.07 1 usually ships 1-5 days
027 183-4094 Ball bearing $19.38 1 usually ships 1-5 days
028 183-4095 Bearing bush (Obsolete) $4.18 1 usually ships 1-5 days
029 183-4096 Pinion $12.43 1 usually ships 1-5 days
030 N/A Not available Call for price 1 (Screw) usually ships 30-32 days
031 183-4098 Shaft $15.15 1 usually ships 1-5 days
032 183-0085 Cheese head screw $3.56 1 usually ships 1-5 days
033 183-4099 Deflection pulley $29.56 1 usually ships 9-20 days
034 183-0218 Hex nut $1.98 2 usually ships 1-5 days
035 183-4100 Washer lock $2.00 4 usually ships 1-5 days
036 183-0226 Washer (Obsolete) $4.18 2 usually ships 9-20 days
037 183-4101 Spacer sleeve $19.01 2 usually ships 1-5 days
038 183-4102 Spring clip $1.23 2 usually ships 1-5 days
