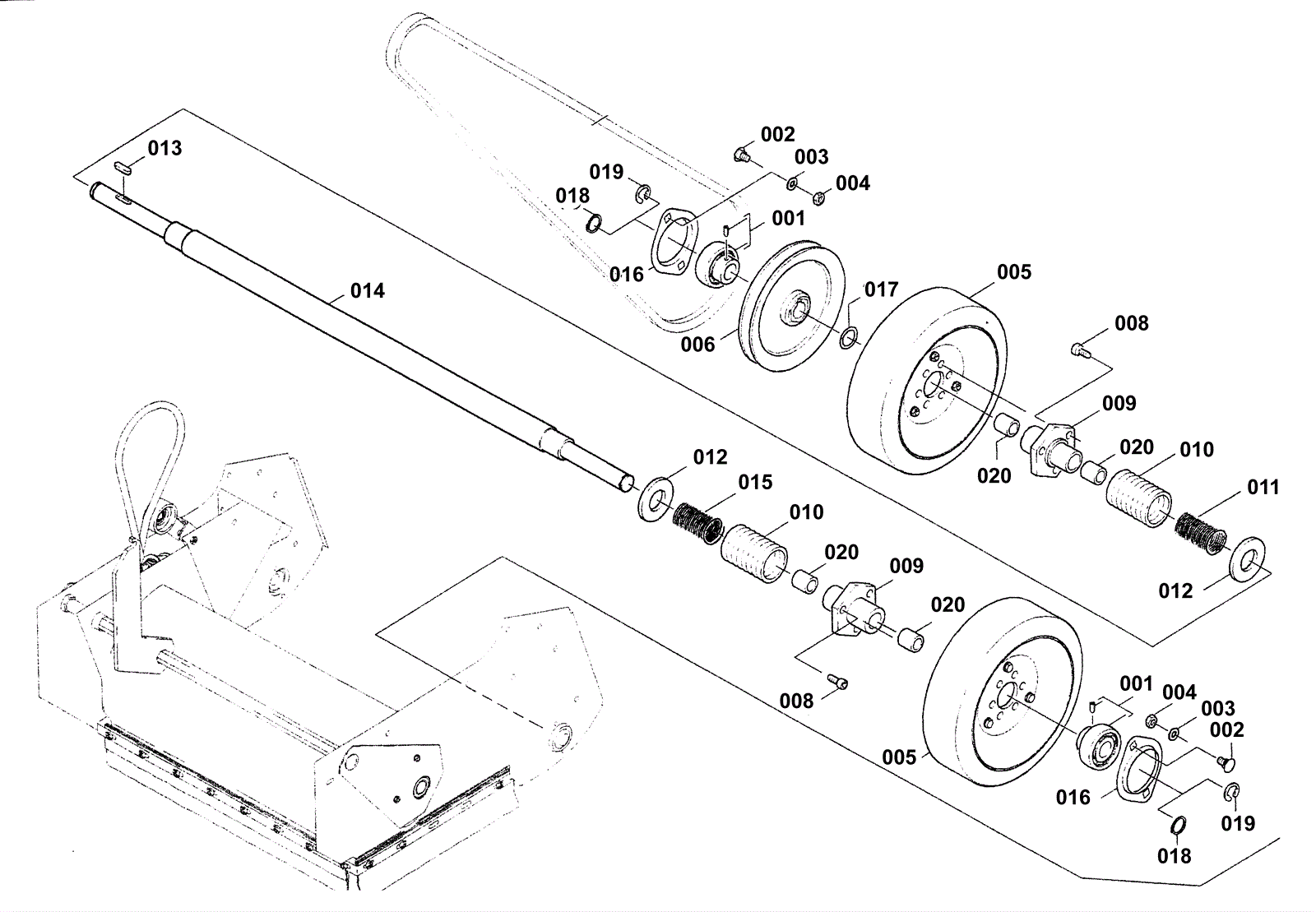

Gear Version 1 Assembly

#PartDescriptionPriceReqNotesAvailability
001 183-4058 Bearing $74.39 2 usually ships 1-5 days
002 183-4059 Screw $1.35 4 usually ships 1-5 days
003 183-0237 Washer $2.10 4 usually ships 1-5 days
004 183-0262 Hex nut $1.35 4 usually ships 1-5 days
005 183-4060 Wheel $431.86 2 usually ships 1-5 days
006 183-4061 Pulley (Obsolete) $90.59 1 usually ships 1-5 days
008 183-4062 Screw, cheese head (Obsolete) $3.45 6 usually ships 1-5 days
009 183-4063 Wheel hub $235.19 2 usually ships 1-5 days
010 183-4064 Hose (obsolete) $4.88 2 usually ships 1-5 days
011 183-4065 Helical spring (Obsolete) $6.30 1 usually ships 1-5 days
012 183-4066 Washer (obsolete) $3.45 2 usually ships 1-5 days
013 183-4067 Square keyway $2.27 1 usually ships 1-5 days
014 183-4068 Axle (Obsolete) $109.59 1 usually ships 1-5 days
015 183-0875 Helical spring (Obsolete) $6.30 1 usually ships 1-5 days
016 183-4070 Flange housing $9.88 2 usually ships 1-5 days
017 183-4071 Washer (Obsolete) $3.45 1 usually ships 1-5 days
018 183-4072 Washer lock $1.35 2 usually ships 1-5 days
019 183-4073 Washer lock (Obsolete) $4.53 2 usually ships 1-5 days
020 183-4074 Bearing bush $5.45 4 usually ships 1-5 days
