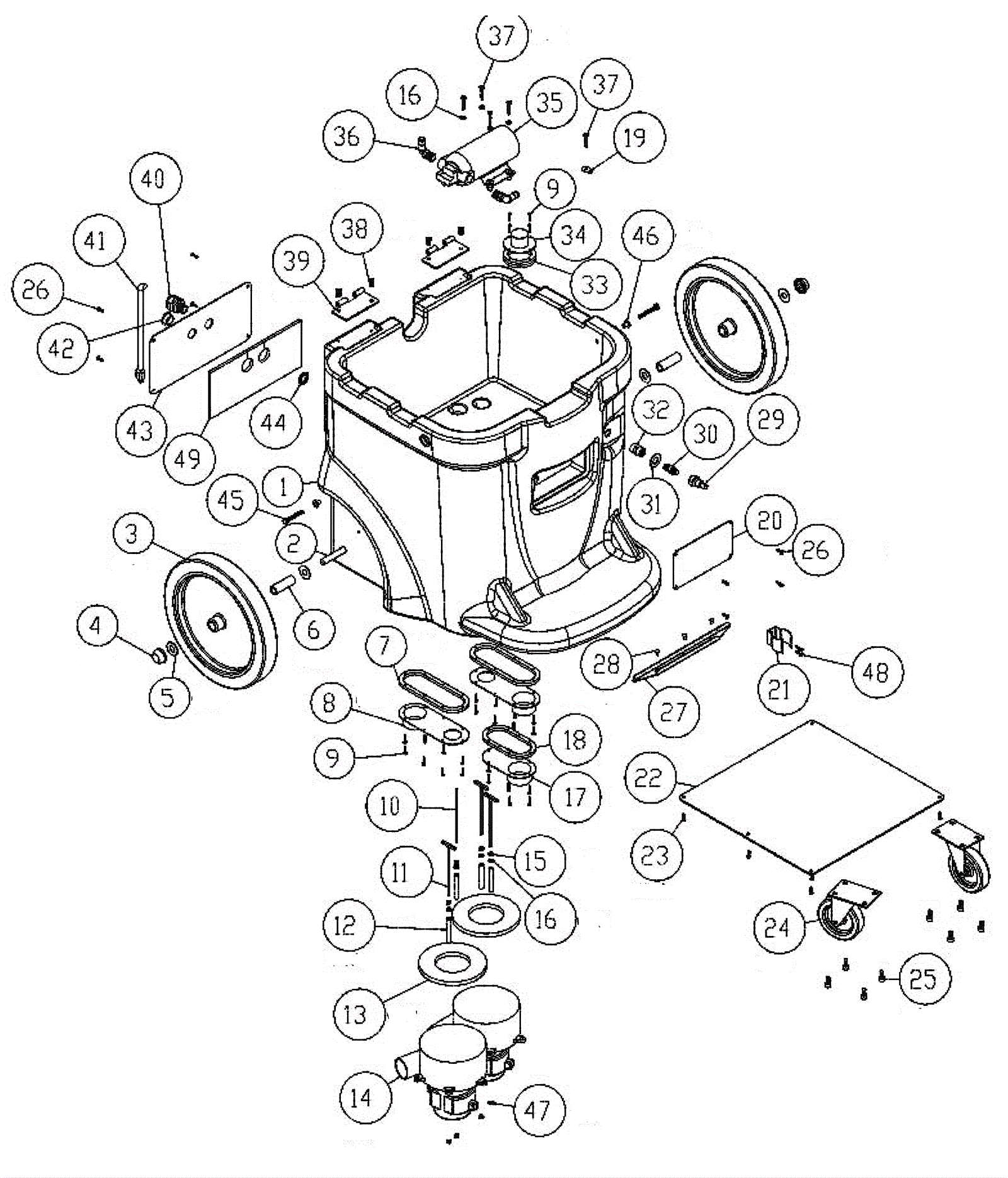

MARATHON 2-100 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5325 Housing base $312.73 1 usually ships 11-24 days
2 216-0081 Axle $27.49 1 usually ships 1-5 days
3 189-5326 Wheel (non marking) $24.12 2 usually ships 11-24 days
4 190-1003 Push nut $2.49 2 usually ships 10-27 days
5 216-0084 Washer 1/2 flat stainless steel $1.30 4 usually ships 10-27 days
6 189-5327 Bushing $2.18 2 usually ships 11-24 days
7 216-0086 Long vacuum gasket $17.59 2 usually ships 10-27 days
8 216-0087 Long vacuum cover $16.49 2 usually ships 10-27 days
9 216-0088 Screw #6 x 3/4mm pan head stainless steel $1.30 26 usually ships 1-5 days
10 216-0091 Rod 3/16 x 5 1/2 stainless steel $7.69 1 usually ships 10-27 days
11 216-0089 Screw 10-24 x 4 hex head stainless steel $47.29 3 usually ships 10-27 days
12 216-0158 Spacer $9.89 4 usually ships 10-27 days
13 216-0094 Vacuum motor gasket $7.62 2 usually ships 10-27 days
14 216-0095 115V 2 stage vacuum motor $138.58 2 ships same day
15 216-0097 Nut #10-24mm zinc $1.30 4 usually ships 10-27 days
16 190-0391 Washer $1.30 8 usually ships 1-5 days
17 216-0098 Short vacuum cover $15.39 1 usually ships 10-27 days
18 216-0100 Short vacuum gasket $10.99 1 usually ships 10-27 days
19 216-0107 End loop $1.30 1 usually ships 1-5 days
20 190-0950 Pressure regulator cover plate $12.22 1 usually ships 10-27 days
21 216-0128 Spring clip $7.69 1 usually ships 10-27 days
22 216-0162 Bottom cover plate $61.59 1 usually ships 10-27 days
23 216-0103 Screw #10 x 5/8mm pan head $1.30 6 usually ships 10-27 days
24 216-0067 Caster $28.59 2 usually ships 10-27 days
25 190-1011 Bolt 5/16-18 self tapping $1.30 8 usually ships 10-27 days
26 216-0178 Screw #8 x 5/8 pan head phillips $1.30 8 usually ships 10-27 days
27 216-0122 Wand holder $31.89 1 usually ships 1-5 days
28 216-0101 Screw #10 x 1/2mm flat head $1.30 3 usually ships 1-5 days
29 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 1 ships same day
30 216-0021 Nipple 1/4 x 1/4 hex $6.59 1 usually ships 1-5 days
31 216-0072 Washer $1.30 1 usually ships 1-5 days
32 216-0207 Double thread female connector $5.38 1 usually ships 10-27 days
33 216-0105 Manifold gasket $3.48 1 usually ships 10-27 days
34 216-0106 Manifold cover $10.99 1 ships same day
35 190-0892 100psi pump $353.09 1 usually ships 10-27 days
36 183-2319 90 degree elbow $5.15 2 usually ships 8-21 days
37 216-0124 Screw #10 x 1 pan head phillips $1.30 5 usually ships 10-27 days
38 190-0978 Screw 1/4-20 x 1/2 phillips $1.30 4 usually ships 10-27 days
39 216-0112 Hinge $13.19 2 usually ships 1-5 days
40 216-0173 Strain relief $6.59 1 usually ships 1-5 days
41 183-2320 Cord $52.79 1 usually ships 8-21 days
42 216-0200 7/8 inch plug $1.30 1 usually ships 1-5 days
43 190-0949 Cord panel $16.84 1 usually ships 10-27 days
44 216-0181 Nut 1/2 lock steel conduit $1.25 1 usually ships 10-27 days
45 190-1020 Screw $1.80 2 usually ships 10-27 days
46 216-0121 Tee nut $1.30 2 usually ships 10-27 days
47 183-2322 Lock nut $1.30 4 usually ships 8-21 days
48 190-0388 Screw $1.30 2 usually ships 1-5 days
49 190-1026 Cord panel foam $8.55 1 usually ships 10-27 days
