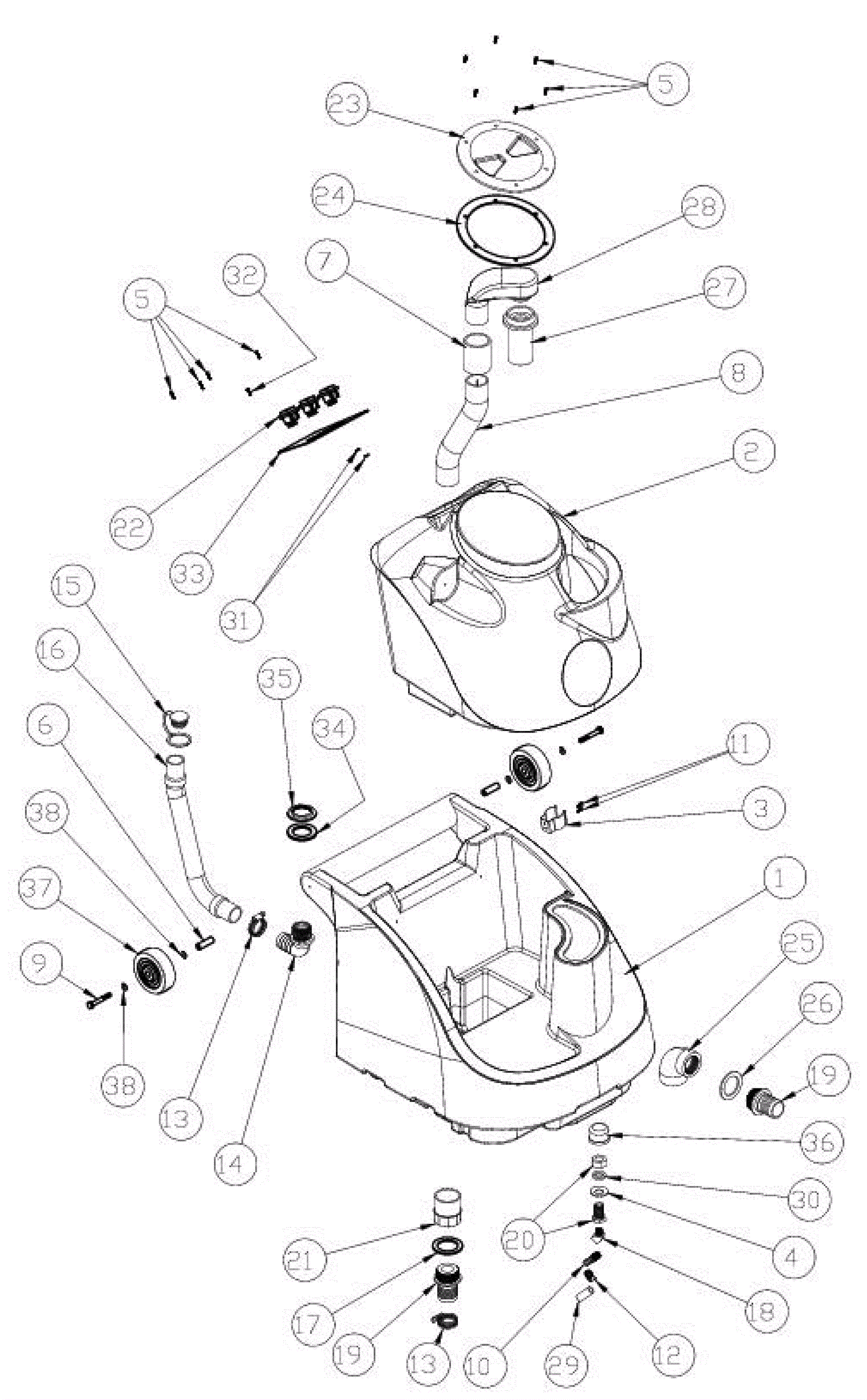

MARATHON 2-100 Top Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2314 Solution tank $520.67 1 usually ships 8-21 days
2 183-2315 Recovery tank $415.01 1 usually ships 8-21 days
3 216-0128 Spring clip $7.69 1 usually ships 10-27 days
4 190-0887 Washer $2.68 1 usually ships 10-27 days
5 216-0178 Screw #8 x 5/8 pan head phillips $1.30 10 usually ships 10-27 days
6 216-0147 Spacer $8.79 2 usually ships 10-27 days
7 216-0333 Coupling $5.26 1 usually ships 10-27 days
8 183-2316 Pipe $67.53 1 usually ships 8-21 days
9 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
10 190-1096 Hose barb $4.53 1 usually ships 10-27 days
11 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
12 216-0137 Hose clamp $3.37 1 usually ships 10-27 days
13 190-0873 Clamp $8.79 1 usually ships 10-27 days
14 190-9030 Nylon elbow $13.19 1 usually ships 10-27 days
15 190-0215 Drain hose plug $9.98 1 ships same day
16 216-0149 Drain hose $8.79 1 ships same day
17 190-9023 Gasket $3.30 1 usually ships 10-27 days
18 189-5324 45 degree elbow $7.59 1 usually ships 11-24 days
19 216-0068 Hose barb $2.77 1 usually ships 10-27 days
20 189-4275 Fitting brass bulkhead 3/4 in $28.59 1 usually ships 10-27 days
21 216-0069 Coupler $7.69 1 usually ships 10-27 days
22 189-4283 Switch rocker on/off $8.79 1 ships same day
23 190-9018 6 inch clear tank lid $36.21 1 ships same day
24 190-0681 Lid gasket $10.99 1 usually ships 10-27 days
25 189-2496 PVC drain elbow $15.90 1 usually ships 11-24 days
26 189-2486 Vac inlet gasket $3.21 1 ships same day
27 190-0927 Float cage with ball $33.57 1 usually ships 10-27 days
28 216-0326 Vacuum tube $20.06 1 usually ships 10-27 days
30 189-4284 Gasket bulkhead (OBSOLETE) $0.99 1 usually ships 11-24 days
31 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
32 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
33 190-9021 Switch panel (non-heated) $18.41 1 usually ships 10-27 days
34 190-9024 Gasket 1 1/4 fitting $3.26 1 usually ships 10-27 days
35 190-9031 Nut 1 1/4 lock $6.59 1 usually ships 10-27 days
36 190-0888 Pump protection filter $6.59 1 usually ships 10-27 days
37 216-0341 Wheel (black) $13.19 2 usually ships 10-27 days
38 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
N/S 190-0955 Gasket foam strip $3.77 1 usually ships 10-27 days
