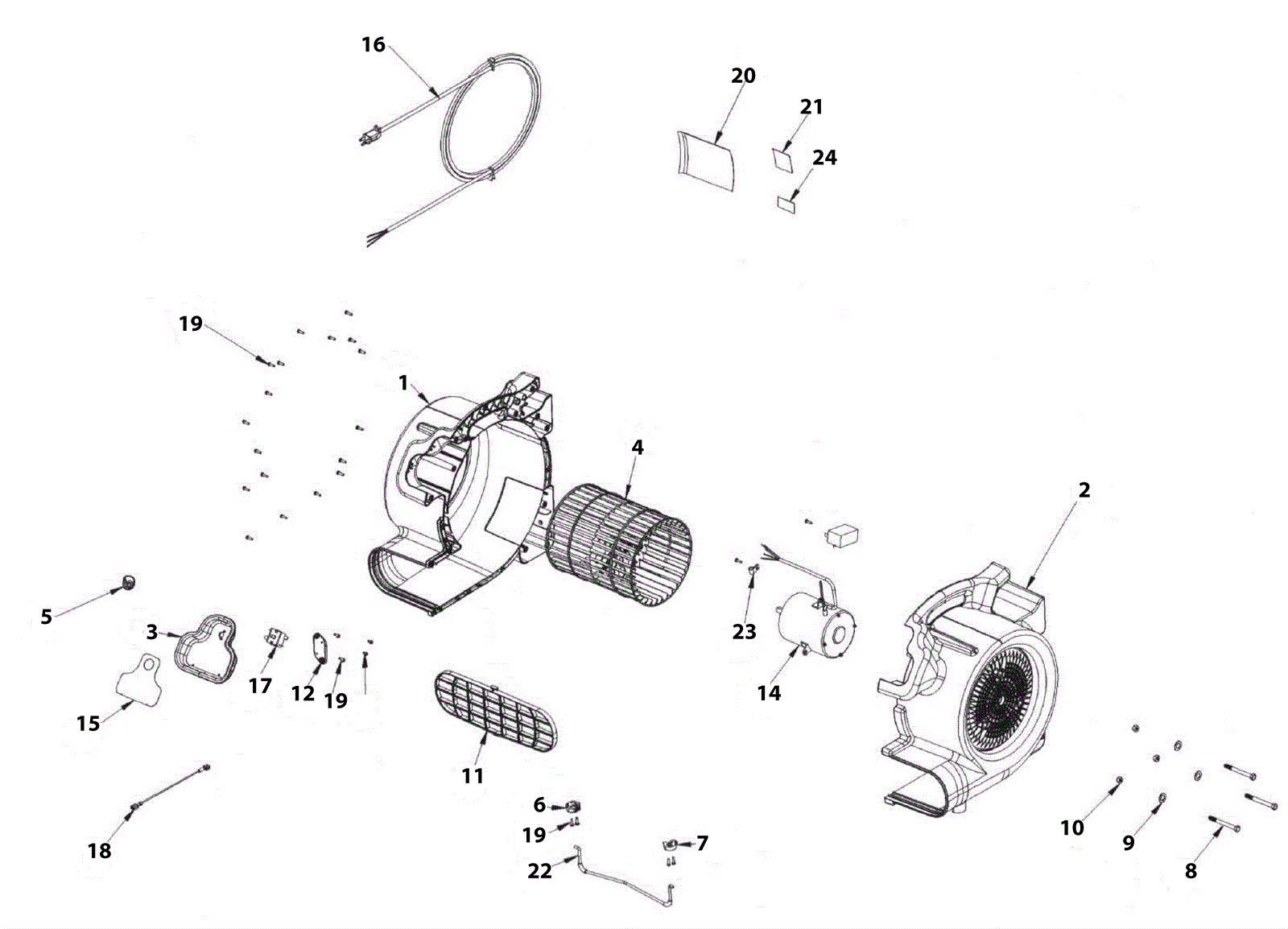

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
183-8900
|
Left side housing (red) |
$83.59
|
1 |
|
usually ships 14-19 days |
2 |
183-8901
|
Right side housing (red) |
$83.59
|
1 |
|
usually ships 14-19 days |
3 |
183-8902
|
Control panel (yellow) |
$7.04
|
1 |
|
usually ships 11-14 days |
4 |
183-5097
|
Fan |
$32.99
|
1 |
|
usually ships 14-19 days |
5 |
183-9952
|
Knob |
$2.63
|
1 |
|
usually ships 14-19 days |
6 |
183-8903
|
Left hand kickstand foot |
$2.63
|
1 |
|
usually ships 14-19 days |
7 |
183-8904
|
Right hand kickstand foot |
$2.63
|
1 |
|
usually ships 14-19 days |
8 |
183-8905
|
Bolt 5/16-18 x 3 1/4 |
$2.63
|
3 |
|
usually ships 14-19 days |
9 |
183-2534
|
Washer |
$3.95
|
3 |
|
usually ships 14-19 days |
10 |
183-9463
|
Nyloc nut |
$3.95
|
1 |
|
usually ships 14-19 days |
11 |
183-8906
|
Dryer exit grill (yellow) |
$9.16
|
1 |
|
usually ships 14-19 days |
12 |
183-8907
|
Switch mounting plate |
$3.95
|
1 |
|
usually ships 14-19 days |
13 |
183-8908
|
7 switch jumper wire |
$6.59
|
1 |
|
usually ships 14-19 days |
14b |
283-4006
|
115V motor assembly |
$279.39
|
1 |
|
usually ships 14-19 days |
15 |
183-8911
|
Control panel decal |
$2.63
|
1 |
|
usually ships 14-19 days |
16 |
183-4836
|
18/3 power cord 20 foot |
$26.39
|
1 |
|
usually ships 14-18 days |
17 |
190-1728
|
3 speed dryer switch |
$3.95
|
1 |
|
usually ships 14-18 days |
18 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
19 |
183-2343
|
Screw M8-18 x 5/8 |
$3.95
|
26 |
|
ships same day |
20 |
183-8912
|
Warning decal |
$2.63
|
1 |
|
usually ships 14-19 days |
21 |
183-8913
|
Serial number decal |
$3.95
|
1 |
|
usually ships 14-19 days |
22 |
183-8914
|
Kickstand |
$8.79
|
1 |
|
usually ships 14-19 days |
23 |
183-8915
|
Cable clamp |
$3.95
|
1 |
|
usually ships 14-19 days |
24 |
183-8916
|
1.618 x 1.618 made in the USA decal |
$3.95
|
1 |
|
usually ships 14-19 days |
