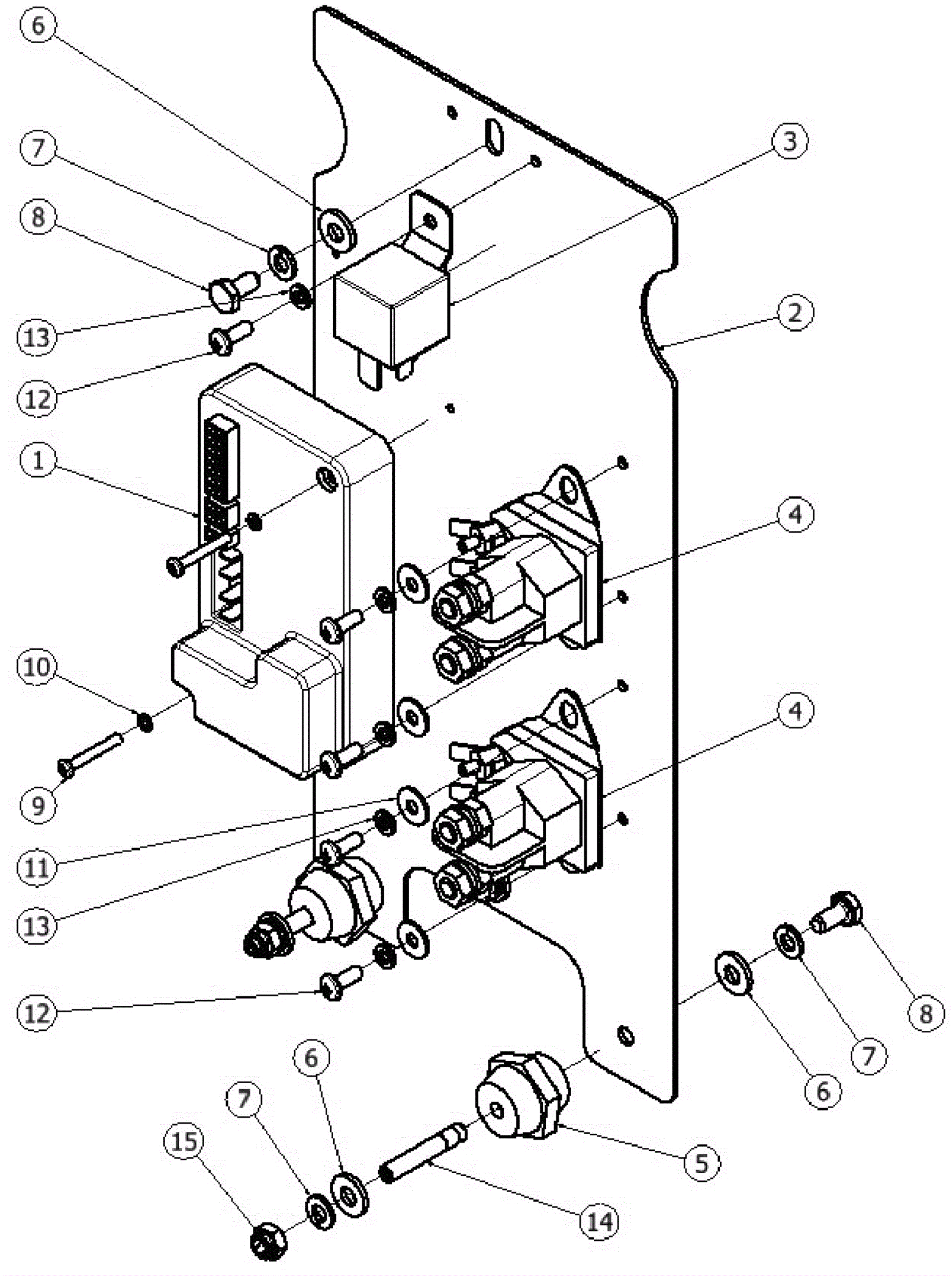

Floorkeeper 28 TD Electronics Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-6050 I-drive controller $830.79 1 usually ships 1-5 days
2 183-6051 Electronics panel $136.28 1 usually ships 1-5 days
3 183-7722 24V 70amp vacuum relay $32.63 1 usually ships 8-21 days
4 183-7723 24V 100amp brush relay $172.46 2 usually ships 8-21 days
5 183-7726 Insulated stand-off $19.34 2 usually ships 8-21 days
6 183-7675 Washer Call for price 6 usually ships 8-21 days
7 183-7725 Lock washer Call for price 6 usually ships 8-21 days
8 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 4 ships same day
9 183-6052 Screw #6-32 x 1 Call for price 2 usually ships 1-5 days
10 183-6053 Lock washer Call for price 4 usually ships 1-5 days
11 183-7679 Washer Call for price 4 usually ships 8-21 days
12 999-6707 Screw #10-32 x 1/2 round head phillips stainless steel $0.99 5 usually ships 11-24 days
13 183-7674 Lock washer Call for price 5 usually ships 8-21 days
14 183-7728 Set screw 1/4-20 x 1-1/4 inch Call for price 2 usually ships 8-21 days
15 183-7729 Lock nut Call for price 2 usually ships 8-21 days
