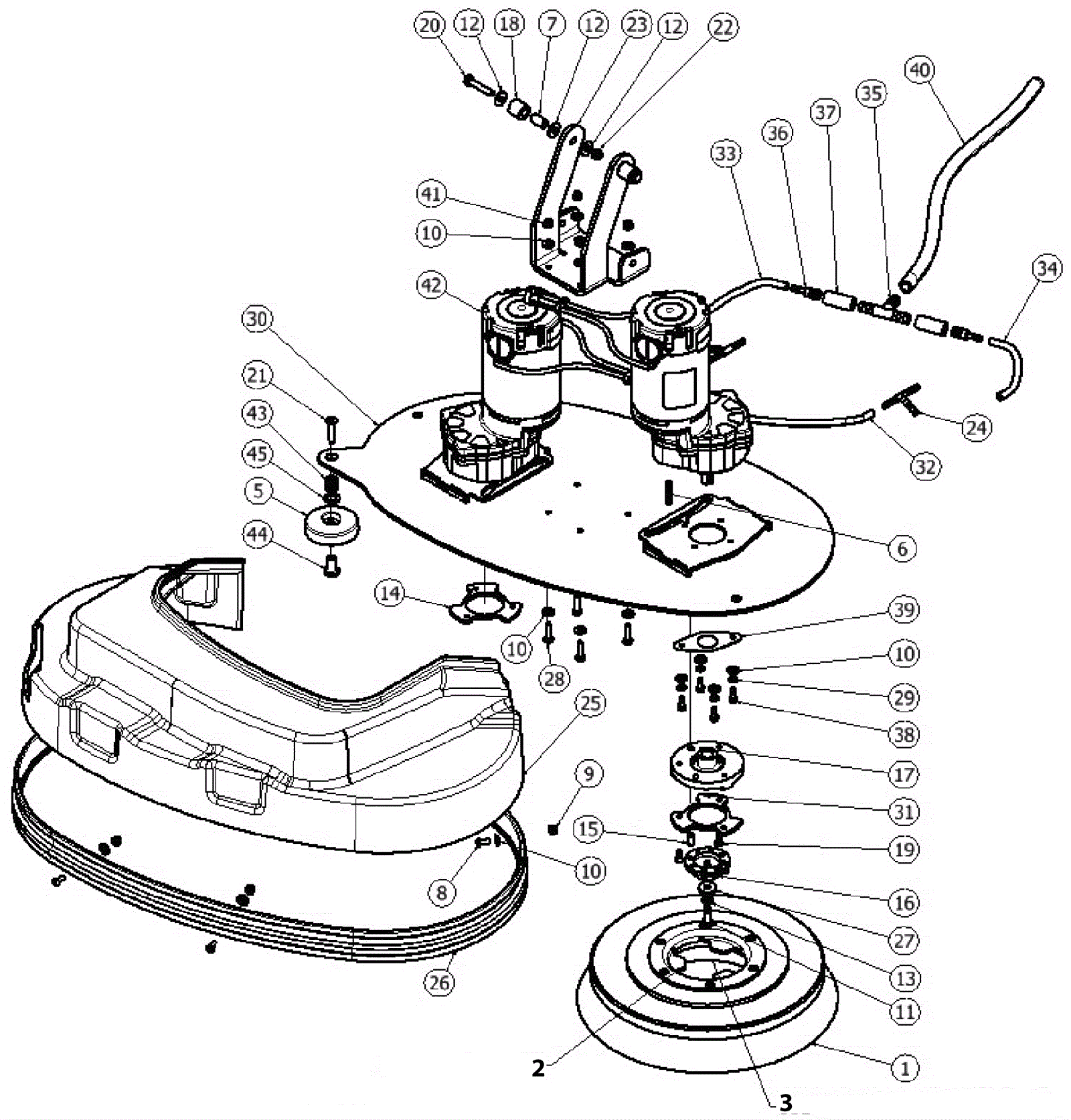

Floorkeeper 28 TD Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-9687 14 inch soft brush $244.30 2 (soft) usually ships 8-21 days
1b 183-9688 14 inch medium brush $184.39 2 (medium) usually ships 8-21 days
1c 183-9689 14 inch hard grit brush $304.40 2 (hard) usually ships 8-21 days
1d 183-9690 14 inch pad driver $242.87 2 usually ships 8-21 days
2 183-9691 Clutch plate $90.15 2 usually ships 8-21 days
3 183-9692 Center lock $46.96 2 usually ships 8-21 days
5 183-7769 Guide wheel $9.00 1 usually ships 8-21 days
6 183-6035 Square key Call for price 2 usually ships 1-5 days
7 183-7770 Spacer $27.63 2 usually ships 8-21 days
8 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
9 183-7768 Nylock nut Call for price 4 usually ships 8-21 days
10 183-7675 Washer Call for price 20 usually ships 8-21 days
11 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 2 ships same day
12 183-7772 Washer Call for price 6 usually ships 8-21 days
13 183-7763 Lock washer Call for price 2 usually ships 8-21 days
14 183-7759 Left hand driver guide $108.71 1 usually ships 8-21 days
15 183-7778 Press-in plunger ball $99.91 2 usually ships 8-21 days
16 183-7761 Plastic guide pad $180.10 2 usually ships 8-21 days
17 183-7758 Brush driver hub $345.20 2 usually ships 8-21 days
18 183-7775 Plastic roller $24.90 2 usually ships 8-21 days
19 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel $0.99 6 ships same day
20 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 2 ships same day
21 183-7771 Screw 5/16-18 x 1-1/2 inch $6.73 1 usually ships 8-21 days
22 183-7710 Nylock nut Call for price 2 usually ships 8-21 days
23 183-6036 Head support bracket $140.92 1 usually ships 1-5 days
24 183-6037 Tee fitting $15.40 2 usually ships 1-5 days
25 183-6038 28 inch head shroud $176.37 1 usually ships 1-5 days
26 183-6039 Skirt bristle $426.57 1 usually ships 1-5 days
27 183-7762 Washer Call for price 2 usually ships 8-21 days
28 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 4 ships same day
29 183-7674 Lock washer Call for price 8 usually ships 8-21 days
30 183-6040 Motor mounting plate $696.10 1 usually ships 1-5 days
31 183-6041 Right hand driver guide $102.86 1 usually ships 1-5 days
32 183-6042 1/4 inch x 15.2 inch tube Call for price 1 usually ships 1-5 days
33 183-6043 1/4 inch x 6 inch tube Call for price 1 usually ships 1-5 days
34 183-6044 1/4 inch x 5.5 inch tube Call for price 1 usually ships 1-5 days
35 183-6045 Tee fitting $12.09 1 usually ships 1-5 days
36 183-7741 Reducer fitting ½ x ¼ inch $6.40 2 usually ships 8-21 days
37 183-6046 1/2 inch x 1.75 inch Call for price 2 usually ships 1-5 days
38 183-6047 Screw M6 x 16 Call for price 8 usually ships 1-5 days
39 183-6048 Seal retaining bracket $24.28 2 usually ships 1-5 days
40 183-6049 1/2 inch x 20 inch tubing $4.87 1 usually ships 1-5 days
41 183-7693 Nylock nut Call for price 4 usually ships 8-21 days
42 183-7750 Brush motor and gearbox $1,684.88 2 usually ships 8-21 days
43 183-7780 Spring $9.05 1 usually ships 8-21 days
44 183-7781 Spacer $32.84 1 usually ships 8-21 days
45 183-7782 Washer $5.50 1 usually ships 8-21 days
