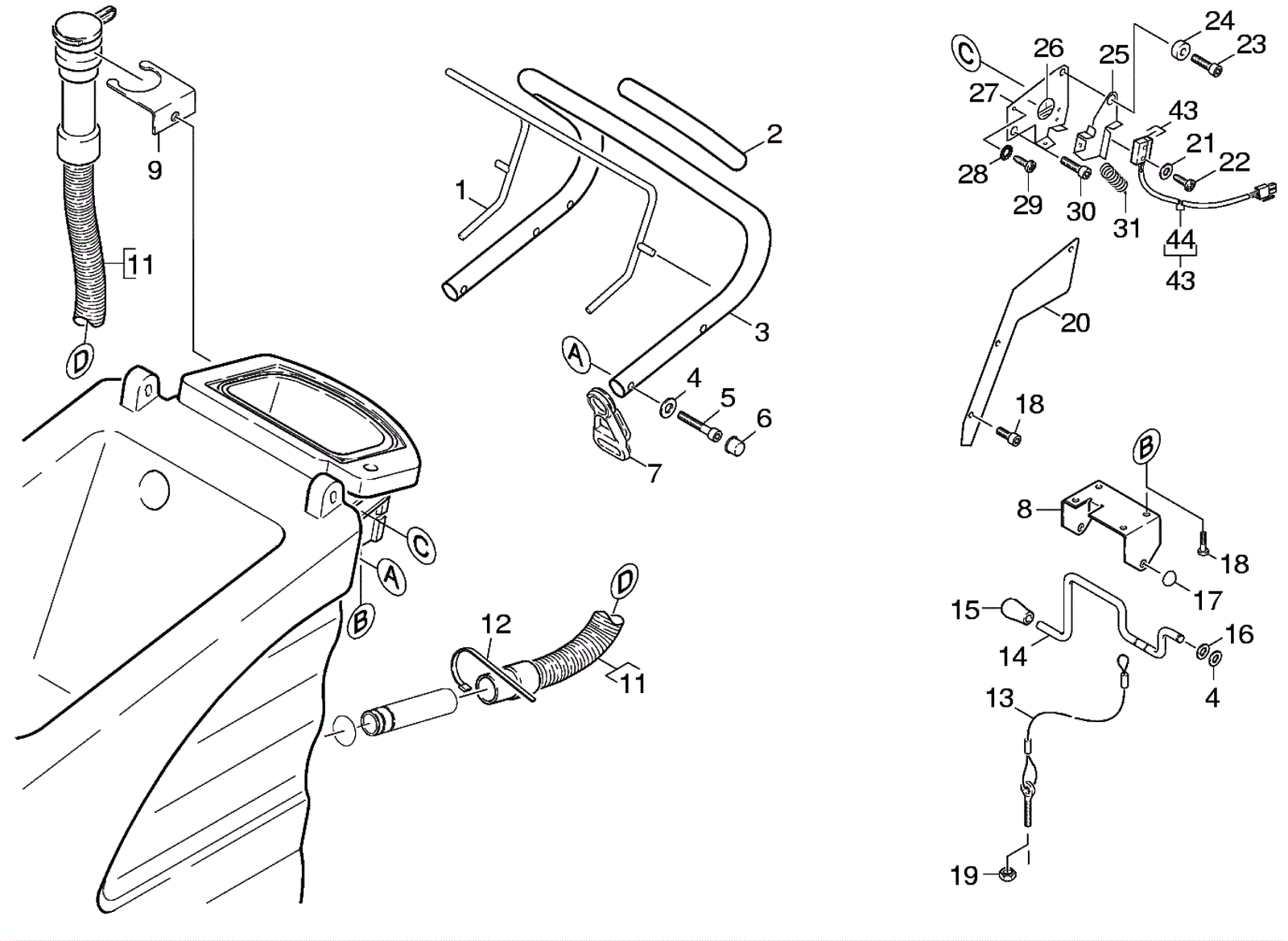

BR 530 99675 Handle Assembly-After SN 35011

#PartDescriptionPriceReqNotesAvailability
1 183-0185 Strap $23.82 1 usually ships 1-5 days
2 183-0186 Hose $45.94 1 usually ships 1-5 days
3 183-0187 Handle (Obsolete) $79.33 1 usually ships 1-5 days
4 183-0099 Washer $1.23 10 usually ships 1-5 days
5 183-0169 Cheese head screw $21.48 4 usually ships 1-5 days
6 183-0087 Protecting cap $20.68 4 usually ships 1-5 days
7 183-0188 Pull relief $8.08 1 usually ships 8-21 days
8 183-0189 Bracket $36.73 1 usually ships 1-5 days
9 183-0190 Plate $19.83 1 (before SN 40382) usually ships 1-5 days
11a 183-0192 Oil resistant drain hose $147.14 1 (before SN 40382) usually ships 8-21 days
11b 183-0192 Oil resistant drain hose $147.14 1 (oil resistant) usually ships 8-21 days
12 183-0184 Hose clamp $8.88 2 usually ships 1-5 days
13 183-0193 Rope suction beam $21.56 1 usually ships 1-5 days
14 183-0194 Strap (OBSOLETE) $28.44 1 usually ships 1-5 days
15 183-0195 Switch knob $9.10 1 usually ships 1-5 days
16 183-0196 Washer lock $1.23 2 usually ships 1-5 days
17 183-0197 Wheel cap $2.43 3 usually ships 8-21 days
18 183-0075 Screw 5-16 x 10.9mm $0.90 7 usually ships 8-21 days
19 183-0199 Hex nut $1.23 1 usually ships 1-5 days
20 183-0200 Plate $110.88 1 usually ships 1-5 days
21 183-0201 Washer (Obsolete) $3.14 2 usually ships 1-5 days
22 183-0163 Sheet metal screw $21.15 2 usually ships 1-5 days
23 183-0202 Screw $1.18 1 usually ships 1-5 days
24 183-0203 Washer (Obsolete) Call for price 1 usually ships 1-5 days
25 183-0204 Plate $101.80 1 usually ships 1-5 days
26 183-9710 Ground decal $1.89 1 usually ships 8-21 days
27 183-0205 Plate $80.06 1 usually ships 1-5 days
28 183-2026 Washer lock $1.23 1 usually ships 1-5 days
29 183-0174 Sheet metal screw $17.94 1 usually ships 1-5 days
30 183-0206 Screw $1.18 1 usually ships 1-5 days
31 183-0207 Extension spring $3.76 1 usually ships 1-5 days
43a 373-2093 Micro switch $71.50 1 (after SN 47201) (includes 44) usually ships 7-19 days
43b 183-6014 Microswitch $31.28 1 (after SN 47200) (includes 44) usually ships 8-21 days
44 183-0175 Insulating hose $18.43 1 usually ships 1-5 days
N/S 183-0182 Cheese head screw $2.41 1 usually ships 1-5 days
