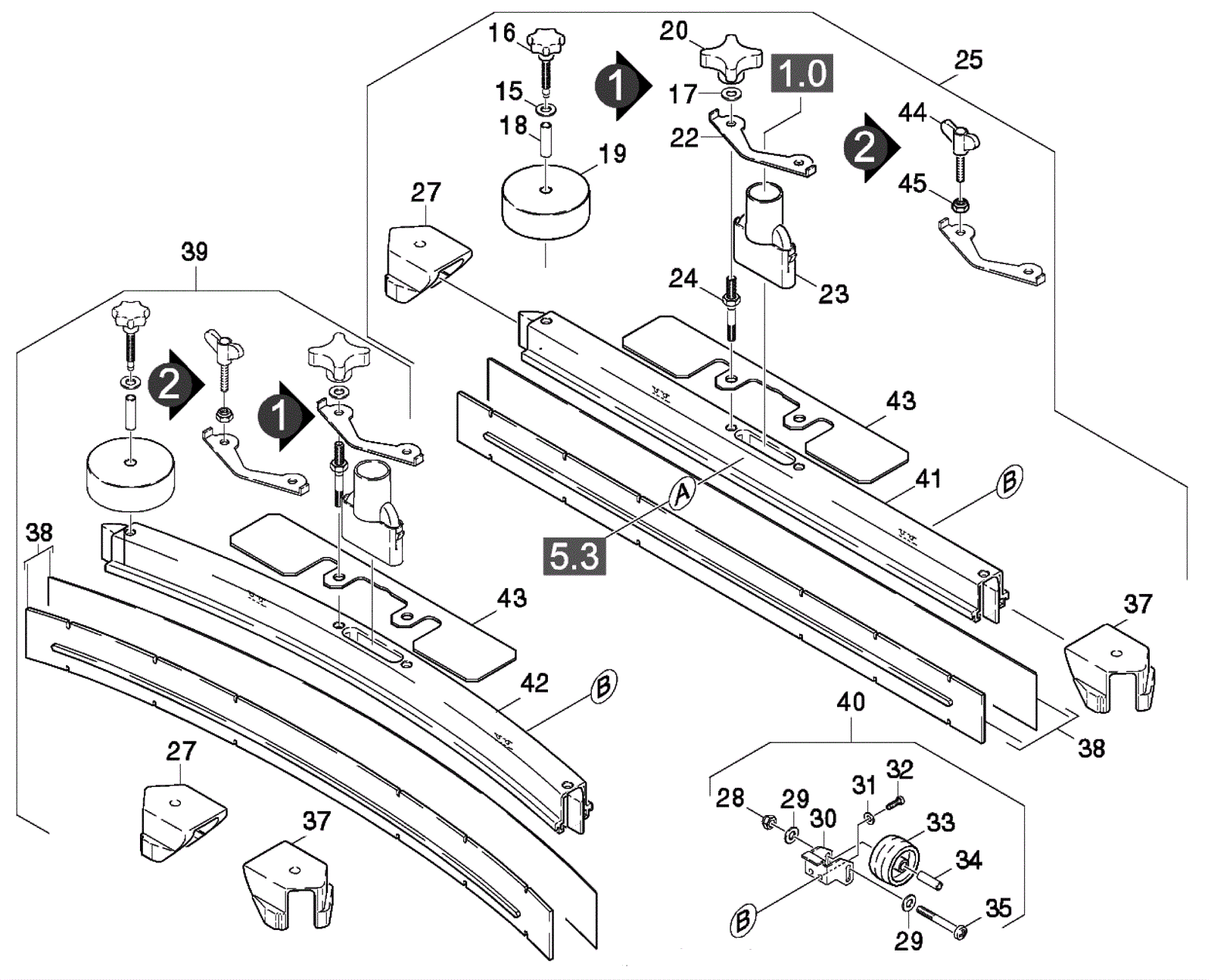

| # | Part | Description |
Req | Notes | Availability |
|---|
15 |
183-0471
|
Washer |
3 |
|
|
16 |
183-0964
|
Knob (Obsolete) |
2 |
|
|
17 |
183-0459
|
Washer |
2 |
|
|
18 |
183-0311
|
Pipe |
2 |
|
|
19 |
183-0289
|
Roller wheel |
2 |
|
|
20 |
183-0284
|
Star handle |
2 |
|
|
22 |
183-0308
|
Plate |
1 |
|
|
23 |
183-0314
|
Intake tube |
1 |
|
|
24 |
183-0315
|
Pin (Obsolete) |
2 |
|
|
25 |
183-0316
|
Straight squeegee beam (Obsolete) |
1 |
(straight design) (includes 15-20, 22-24, 27, 37, 38b, 41, 43-45) |
|
27 |
183-8098
|
Tale piece right |
1 |
|
|
28 |
183-0304
|
Hex nut |
1 |
|
|
29 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
30 |
183-0320
|
Bracket (Obsolete) |
2 |
|
|
31 |
183-0485
|
Washer (OBSOLETE) |
2 |
|
|
32 |
183-0323
|
Screw M5-.8 x 10mm stainless steel |
2 |
|
|
33 |
183-0301
|
Wheel |
1 |
|
|
34 |
183-0303
|
Axle |
1 |
|
|
35 |
183-0302
|
Screw |
1 |
|
|
37 |
273-3475
|
Left and right end pieces |
1 |
|
|
38a |
183-0327
|
Oil-resistant squeegee blade set |
1 |
(oil resistant) |
|
38b |
183-7499
|
Squeegee blade set |
1 |
(standard) |
|
38c |
183-0326
|
Anti-stripe squeegee blade set |
1 |
(anti-strip) (oil resistant) |
|
39 |
183-0328
|
Complete squeegee assembly |
1 |
(curved design) (includes 27, 37, 38b, 42) |
|
40 |
183-0299
|
Support wheels kit |
2 |
(includes 28-35) |
|
41 |
183-0484
|
Profile (OBSOLETE) |
1 |
(straight design) |
|
42 |
183-0486
|
Profile (OBSOLETE) |
1 |
(curved design) |
|
43 |
183-0487
|
Weight addition |
1 |
|
|
44 |
373-4987
|
Wing screw M8x30 |
2 |
|
|
45 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
