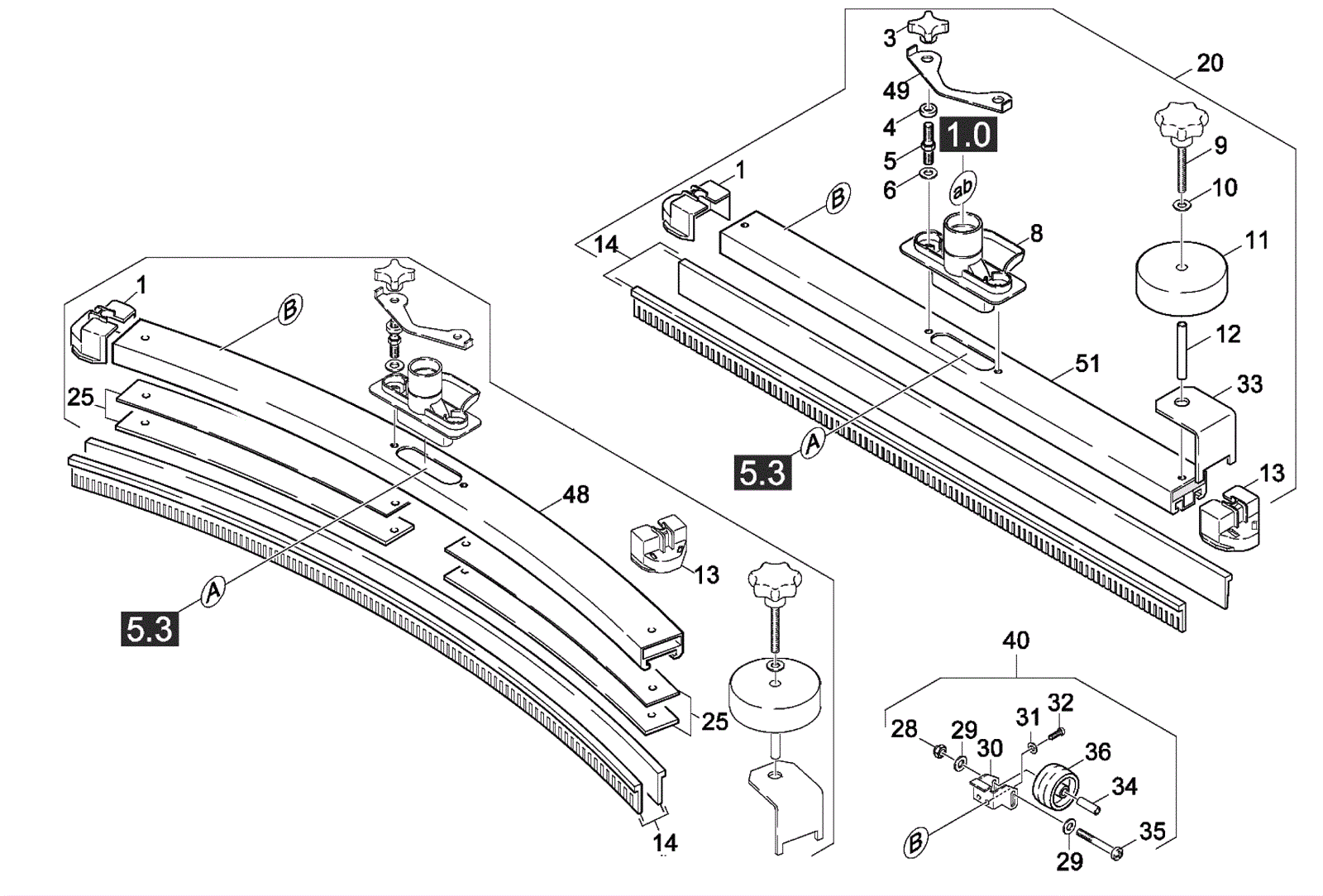

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-0283
|
Tail piece |
2 |
|
|
3 |
183-0284
|
Star handle |
2 |
|
|
4 |
183-0285
|
Washer (OBSOLETE) |
2 |
|
|
5 |
183-0286
|
Pin (OBSOLETE) |
2 |
|
|
6 |
173-6204
|
Washer 8M |
2 |
|
|
8 |
183-0287
|
Connecting piece |
2 |
|
|
9 |
183-0964
|
Knob (Obsolete) |
2 |
|
|
10 |
183-0471
|
Washer |
2 |
|
|
11 |
183-0289
|
Roller wheel |
2 |
|
|
12 |
183-0290
|
Pipe |
2 |
|
|
13 |
183-0291
|
Tail piece |
1 |
|
|
14a |
183-0292
|
Oil resistant squeege blade set (OBSOLETE) |
1 |
(oil resistant) |
|
14b |
183-0293
|
Squeege blade set |
1 |
(standard) |
|
20 |
183-0316
|
Straight squeegee beam (Obsolete) |
1 |
(includes 1, 3-6, 8-13, 14b, 20, 33, 49,51) |
|
25 |
183-6016
|
Insert |
1 |
|
|
28 |
183-0304
|
Hex nut |
1 |
|
|
29 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
30 |
183-0320
|
Bracket (Obsolete) |
2 |
|
|
31 |
183-0485
|
Washer (OBSOLETE) |
2 |
|
|
32 |
183-0323
|
Screw M5-.8 x 10mm stainless steel |
2 |
|
|
33 |
183-0298
|
Angle |
2 |
|
|
34 |
183-0303
|
Axle |
2 |
|
|
35 |
183-0302
|
Screw |
1 |
|
|
36 |
183-0301
|
Wheel |
1 |
|
|
40 |
183-0299
|
Support wheels kit |
1 |
(includes 28-32,34-36) |
|
48 |
273-3480
|
36 inch squeegee assembly |
1 |
(curved design) |
|
49 |
183-0308
|
Plate |
1 |
|
|
51 |
183-0309
|
Profile (Obsolete) |
1 |
(straight design) |
|
