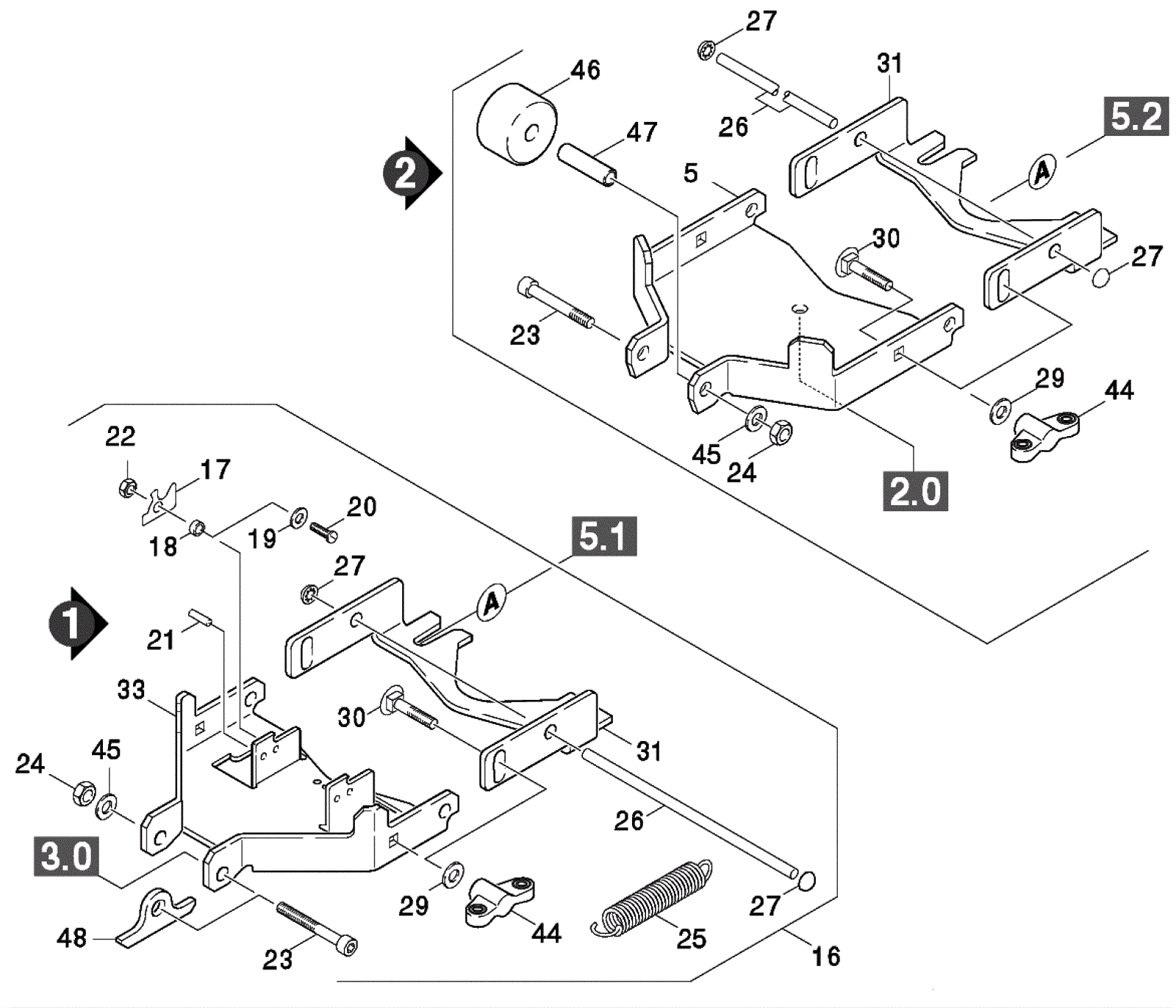

BR 530 99675 Squeegee Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
5 183-0331 Bracket $69.45 1 (after SN 35011) usually ships 1-5 days
16 183-0333 Suction part $198.05 1 (before SN 35012) (includes 17-27, 29-31, 33, 44-45,48) usually ships 1-5 days
17 183-0334 Moulded part (Obsolete) $8.36 1 (before SN 35012) usually ships 1-5 days
18 183-0335 Sleeve (Obsolete) $5.00 1 (before SN 35012) usually ships 1-5 days
19 183-0181 Washer (Obsolete) $4.12 1 (before SN 35012) usually ships 1-5 days
20 183-0336 Screw (obsolete) $4.18 1 (before SN 35012) usually ships 1-5 days
21 183-0337 Pin (Obsolete) $3.14 1 (before SN 35012) usually ships 1-5 days
22 183-0338 Hex nut (Obsolete) $3.14 1 (before SN 35012) usually ships 1-5 days
23 183-0340 Screw $3.54 1 usually ships 1-5 days
24 183-0341 Hex nut $1.48 1 usually ships 1-5 days
25 183-0207 Extension spring $3.76 1 (before SN 35012) usually ships 1-5 days
26 183-0342 Bar $8.67 1 ships same day
27 183-0197 Wheel cap $2.43 2 usually ships 8-21 days
29 183-0237 Washer $1.91 2 usually ships 1-5 days
30 183-0343 Screw $1.44 2 usually ships 8-21 days
31 183-0344 Rocker $44.06 1 usually ships 8-21 days
33 183-6015 Bracket $63.43 1 (before SN 35012) usually ships 8-21 days
44 183-0347 Wing nut (Obsolete) $6.86 2 usually ships 8-21 days
45 183-0099 Washer $1.23 1 usually ships 1-5 days
46 183-0348 Roller $9.88 1 usually ships 8-21 days
47 183-0349 Bushing $9.78 1 usually ships 1-5 days
48 183-0350 Moulded part (Obsolete) Call for price 1 (before SN 35012) usually ships 1-5 days
