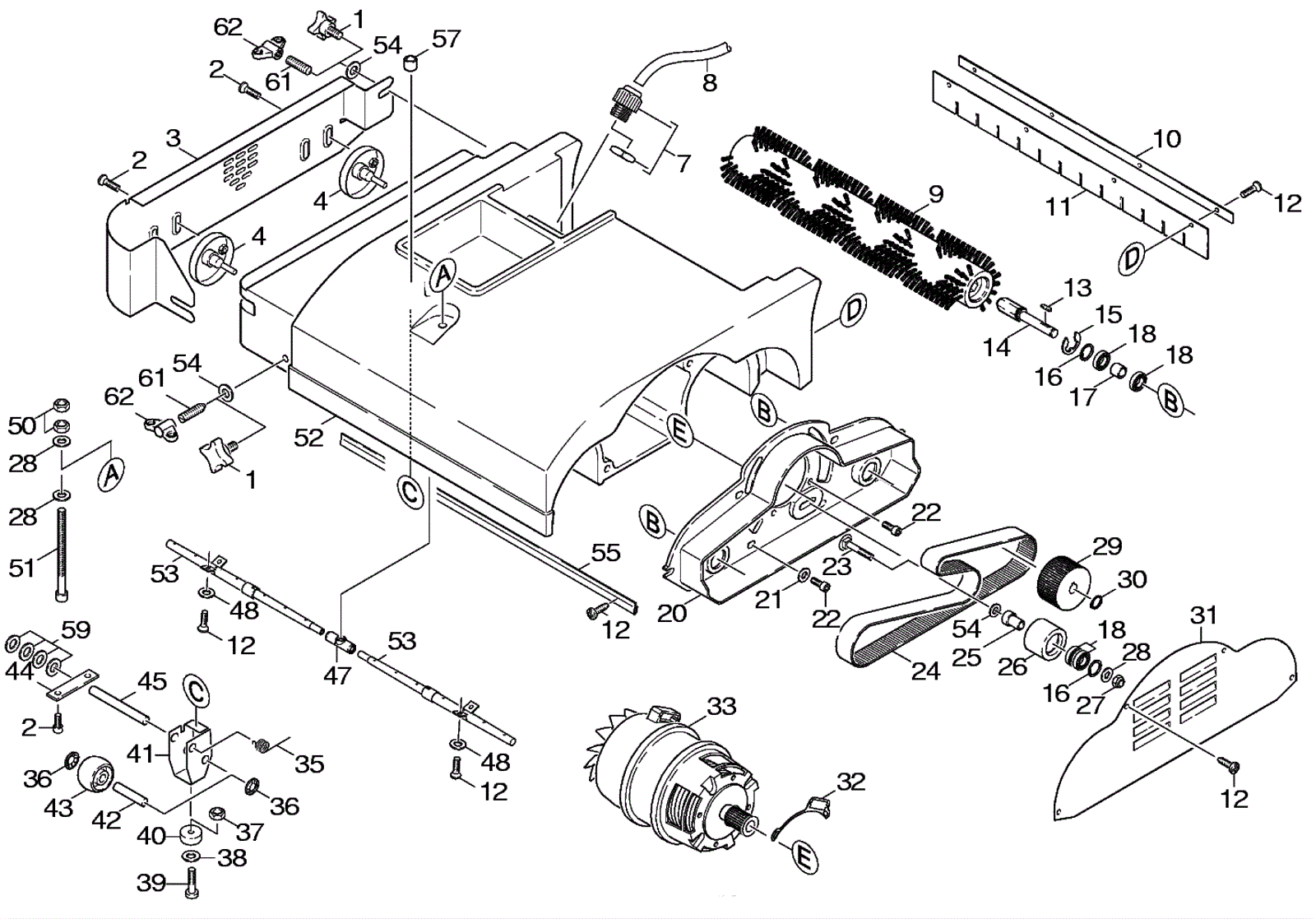

Power Brush Assembly

#PartDescription ReqNotesAvailability
1 273-8233 Star handle 2 (before SN 35012)
2 183-0206 Screw 8
3 183-0353 Counter holder 1
4 183-0354 Plate 2
7 183-0355 Cable connector (obsolete) 1
8 183-0356 Insulating hose 1
9a 183-4702 Medium grit brush CYLINDRICAL 2 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
9b 183-0358 High/low grout brush - CYLINDRICAL (orange) 2 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
9c 183-0359 Extra heavy grit scrubbing brush (gray) 2 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
9d 183-0360 Soft scrub brush black 2 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
9e 183-0361 Standard brush roll 2 (for models 1.127-221.0/-421.0/-807.0)
9f 183-4587 Orange hi low grit brush 2 (for models 1.127-221.0/-421.0/-807.0)
9g 183-0363 Grey brush roll 2 (for models 1.127-221.0/-421.0/-807.0)
9h 183-0364 Black brush roll 2 (for models 1.127-221.0/-421.0/-807.0)
9i 183-0483 Roller brush (very hard) (OBSOLETE) 2 (for models 1.127-221.0/-241.0)
9j 373-3043 Brush roller (black) 2 (for models 1.127-121.0/-321.0/-805.0/-809.0)
10a 183-0365 Plate 1 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
10b 183-0366 Plate 1 (for models 1.127-221.0/-421.0/-807.0)
11a 183-0367 Strip 1 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
11b 183-0368 Strip 1 (for models 1.127-221.0/-421.0/-807.0)
12 183-0281 Screw 14
13 183-0369 Spring 2
14 183-0371 Drive shaft 2
15 183-0372 Washer 2
16 183-0373 Safety ring 3
17 183-0374 Sleeve 2
18 183-0375 Ball bearing 6
20 183-0378 Plate 1
21 183-0379 Washer 6
22 183-0093 Screw M6-1 x 16mm 10
23 183-0381 Screw 1
24 183-7523 Belt 1
25 183-0382 Sleeve 1
26 183-0384 Roller 1
27 183-0341 Hex nut 1
28 373-2094 Washer 3,5-200HV-A2E ISO7093-1 3
29 183-0386 Pulley 2
30 183-0388 Spring plate 2
31 183-0389 Cover plate 1
32 373-2095 Plug holder bracket 1
33a 373-2096 230V motor 1 (for models 1.127-121.0/-221.0/-321.0/-421.0/-805.0/-807.0/-809.0)
33b 373-2097 120V brush motor 1 (for model 1.127-683.0)
35 183-0393 Spring 1
36 183-0394 Quick fastener (OBSOLETE) 2
37 183-0304 Hex nut 1
38 183-0395 Washer 1
39 183-0202 Screw 1
40 183-0396 Foot stand 1
41 183-0397 Stand 1
42 183-0398 Axle (OBSOLETE) 1
43 183-0348 Roller 1
44 183-0399 Retainer clip 2
45 183-0400 Axle 1
47 183-0402 Pipe connection 1
48 999-9100 Washer M5 flat stainless steel 4
50 183-0405 Hex nut 3
51 183-0406 Hex screw 1
52a 183-0407 Brush housing (Obsolete) 1 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
52b 183-0408 Brush housing 1 (for models 1.127-221.0/-421.0/-807.0)
53a 183-0409 Pipe 2 (for models 1.127-121.0/-421.0/-807.0)
53b 183-0401 Pipe 2
54 183-0216 Washer 3
55a 183-0410 Plate (Obsolete) 1 (for models 1.127-121.0/-321.0/-683.0/-805.0/-809.0)
55b 183-0411 Plate 1 (for models 1.127-221.0/-421.0/-807.0)
57 183-0412 Sleeve (Obsolete) 1
59 183-0413 Washer 4
61 183-0415 Pin (threaded) 2 (after SN 35011)
62 273-3611 Wing nut 2 (after SN 35011)
