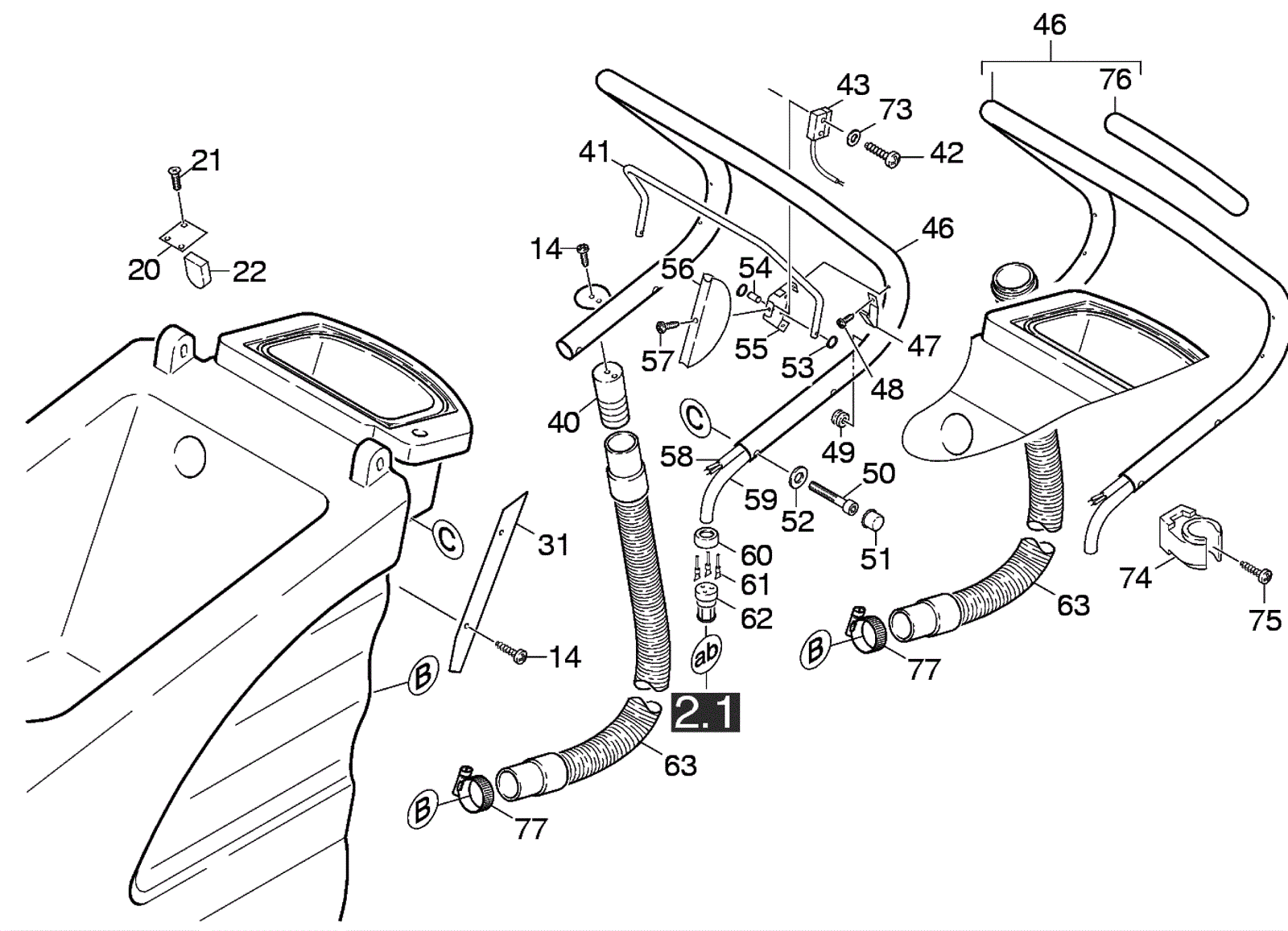

| # | Part | Description |
Req | Notes | Availability |
|---|
14 |
183-0108
|
Screw M4-10.9 x 16mm oval head |
2 |
|
|
20 |
183-0157
|
Retainer clip (Obsolete) |
1 |
|
|
21 |
183-0158
|
Flat head screw (Obsolete) |
3 |
|
|
22 |
183-0159
|
Seal (Obsolete) |
2 |
|
|
31 |
373-2089
|
Plate |
1 |
|
|
40 |
183-0161
|
Drain hose cap |
1 |
(before SN 14815) |
|
41 |
183-0162
|
Strap |
1 |
|
|
42 |
183-0163
|
Sheet metal screw |
2 |
|
|
43 |
183-6014
|
Microswitch |
1 |
|
|
46a |
183-0165
|
Handle |
1 |
(before SN 14815) (includes 76) |
|
46b |
183-0166
|
Handle (Obsolete) |
1 |
(after SN 14814) (includes 76) |
|
47 |
183-0167
|
Plate spring |
1 |
|
|
48 |
183-0168
|
Screw |
4 |
|
|
49 |
N/A
|
Not available |
1 |
(bushing) |
|
50 |
183-0169
|
Cheese head screw |
4 |
|
|
51 |
183-0087
|
Protecting cap |
4 |
|
|
52 |
183-0471
|
Washer |
4 |
|
|
53 |
183-0170
|
Washer lock |
4 |
|
|
54 |
183-0171
|
Bolt |
2 |
|
|
55 |
183-0172
|
Bracket |
2 |
|
|
56 |
183-0173
|
Covering cap |
1 |
|
|
57 |
183-0174
|
Sheet metal screw |
2 |
|
|
58 |
373-2092
|
Cable |
1 |
|
|
59 |
183-0175
|
Insulating hose |
1 |
(to order as cut goods) |
|
60 |
373-2090
|
Rubber cap |
1 |
|
|
61 |
183-0177
|
Pin |
3 |
(quantity according to demand) |
|
62 |
373-2091
|
Plug housing |
1 |
|
|
63a |
183-0192
|
Oil resistant drain hose |
1 |
(after SN 14769) (if your model has a SN of 40380 or later then must order part 183-0190) |
|
63b |
183-0180
|
Drain hose (OBSOLETE) |
1 |
(before SN 14770) |
|
73 |
183-0181
|
Washer (Obsolete) |
2 |
|
|
74 |
183-0092
|
Pipe clip |
1 |
(after SN 14814) |
|
75 |
183-0182
|
Cheese head screw |
1 |
(after SN 14814) |
|
76 |
183-0183
|
Hose (Obsolete) |
1 |
(after SN 14814) |
|
77 |
183-0184
|
Hose clamp |
1 |
|
|
