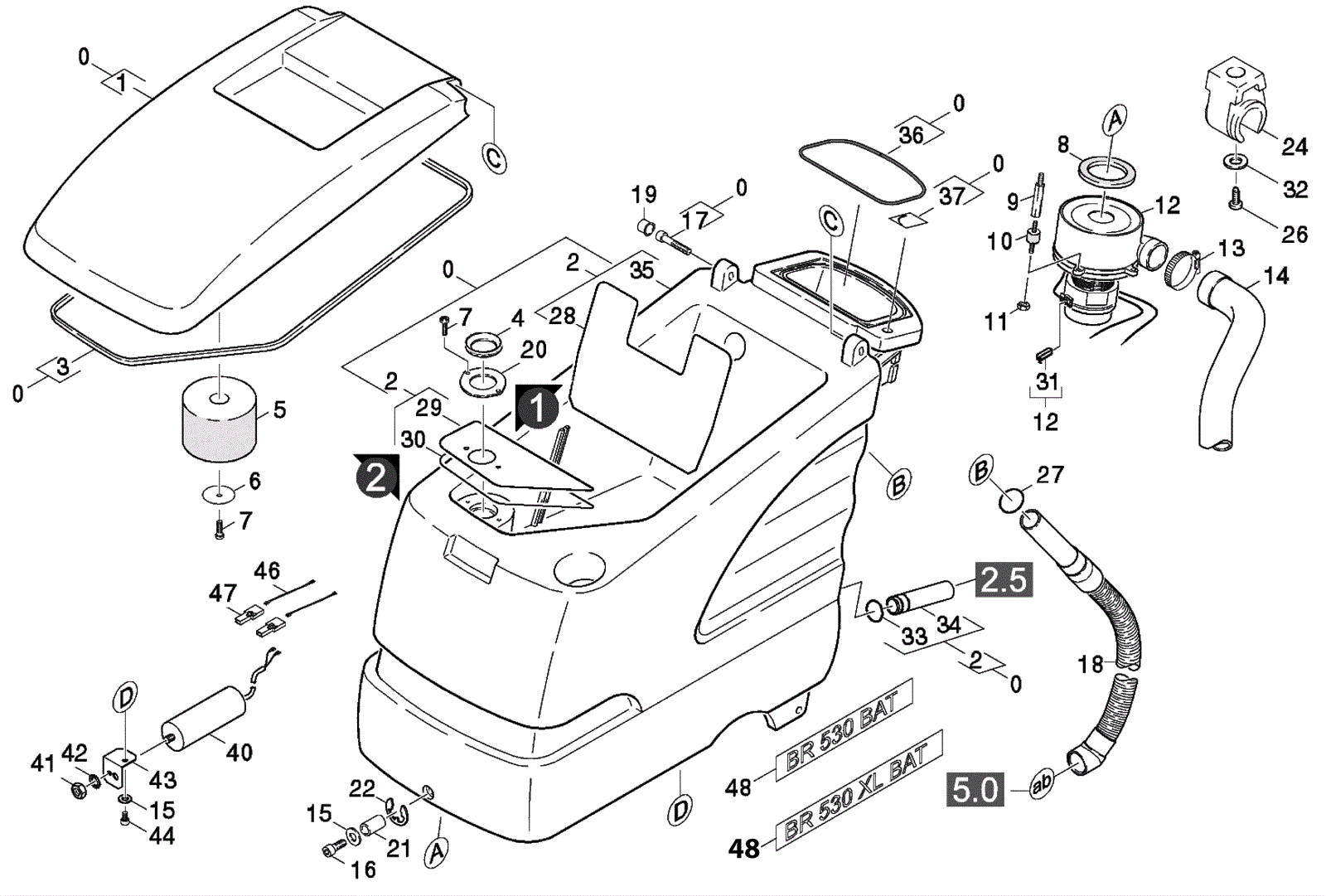

Cover Assembly

#PartDescription ReqNotesAvailability
0 183-0068 Housing with cover 1 (includes 1-4, 7, 17, 28-30, 33-37)
1 N/A Not available 1 (cover)
2 N/A Not available 1 (housing)
3 183-7492 Recovery tank lid gasket (sold by the inch) 2 (customer to specify total cut length in inches)
4 183-0072 Joint ring 1
5 183-0073 Float 1
6 183-0074 Washer 1
7 183-0075 Screw 5-16 x 10.9mm 1
8 183-0474 Joint ring gasket 1
9 183-0077 Bolt 3
10 183-0078 Rubber buffer 3
11 173-9058 Nut M6-8 hex 3
12.1 183-6012 Vacuum motor 1 (includes 31) (old version)
12.2 373-2085 220/240V vacuum motor 1 (includes 31) (for models 1.127-121.0/-221.0/-321.0/-421.0/-805.0/-807.0/-809.0)
12.3 173-9055 120V vacuum motor 1 (includes 31) (for model 1.127-683.0)
13 997-2006 Hose clamp 1
14 183-0082 Sound proof hose 1
15 173-6204 Washer 8M 3
16 183-0084 Screw 1
17 183-0085 Cheese head screw 2
18 183-0086 Suction/squeegee hose assembly 1 (order with #27)
19 183-0087 Protecting cap 2
20 183-0088 Plate 1
21 183-0089 Sleeve 1
22 183-0090 Washer lock 1
24 183-0092 Pipe clip 1
26 183-0093 Screw M6-1 x 16mm 1
27 183-0094 Gasket 1
28 183-0095 Plate 1
29 183-0097 Plate (OBSOLETE) 1
30 183-0098 Seal 1
31 173-9061 Carbon brush set 1
32 183-0099 Washer 1
33 183-0100 Gasket 1
34 183-0101 Pipe 1 (will also need #33)
35 N/A Not available 1 (housing)
36 183-0128 Cellular rubber cord 1
37 183-0113 Decal (Obsolete) 1
40 183-6013 Capacitor 1 (for model 1.127-683.0)
41 373-1938 Nut M12-8-A3E 1 (for model 1.127-683.0)
42 373-2086 LOCK WASHER A 13,0 1 (for model 1.127-683.0)
43 373-2087 Angle 1 (for model 1.127-683.0)
44 183-0182 Cheese head screw 1 (for model 1.127-683.0)
46 N/A Not available 2 (for model 1.127-683.0) (cable)
47 N/A Not available 2 (for model 1.127-683.0) (Plug-in connection)
48 373-2088 Decal 1
N/S 173-9897 Cable tie 1
